Description:Single or dual Form-A/Form-C contacts, 24 VDC coil, DIN-rail mount, IP20; used for signal conversion or low-power panel drives.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | UR7BH |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Author: PLC Autocontroller – 20 Years of Automation Trading in Xiamen, China
Contact: ab@mooreplc.com | Phone/WhatsApp: +86-18106909650 | WeChat ID: dcsfcs | Sales Manager: May

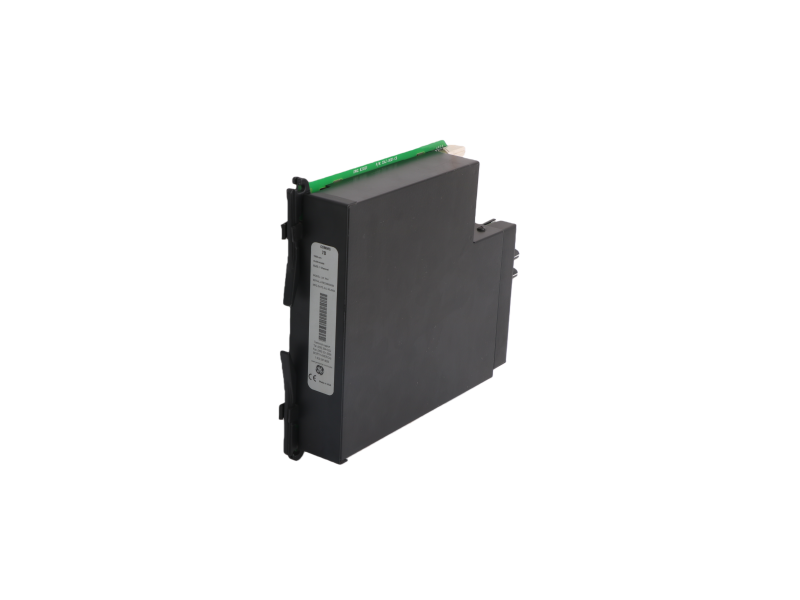

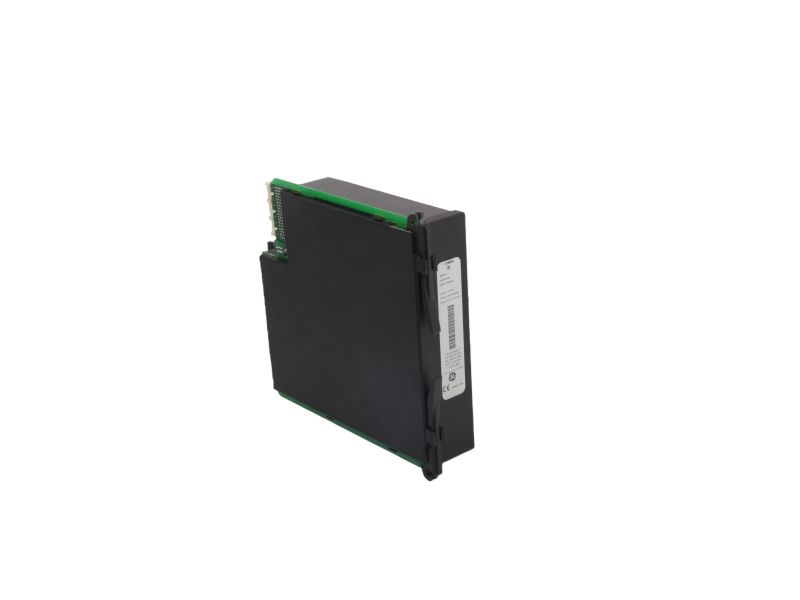

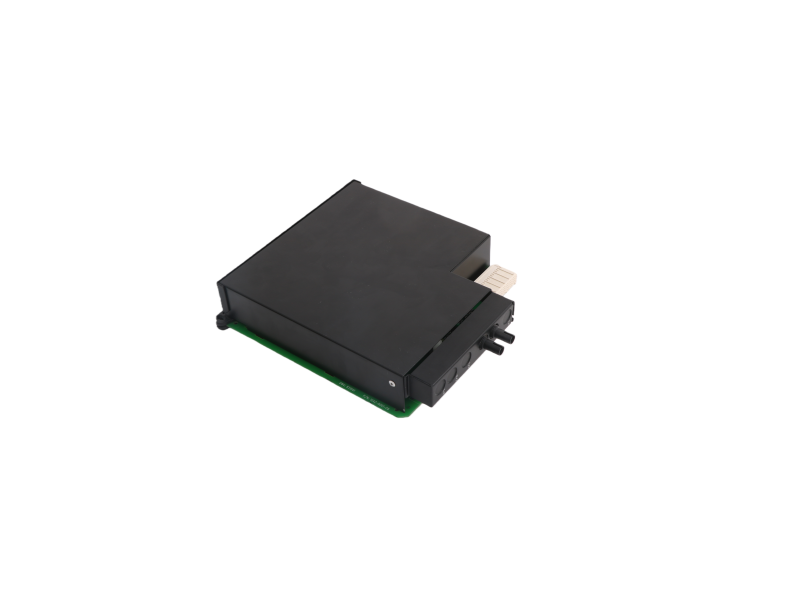

GE UR7BH is shipped in two interchangeable formats:
·"Relay-Only" module – 24 VDC coil, 10 A SPDT contacts, DIN-rail.
·"Smart face-plate" – adds 80188 CPU, 512 I/O points, Modbus TCP/IP, for local control & display inside Mark* VI racks.
Both versions share the same 28-pin back-plane connector and −20…+60 °C operating range, making UR7BH a drop-in spare for turbines, compressors, power-gen and general process skids originally engineered by GE.
|
Item |
Relay-Only Variant |
Smart Face-Plate Variant |
|
Coil / Logic power |
24 VDC (18…32 V) |
24 VDC (same range) |
|
Contact rating |
10 A @ 250 VAC, 8 A @ 30 VDC (res.) |
internal dry contact same spec |
|
CPU |
— |
80188, 10 MHz |
|
Communication |
— |
Modbus TCP/IP, RS-232 service port |
|
Isolation coil-contact |
4 kV rms |
4 kV rms |
|
Mechanical life |
≥10×10⁶ cycles |
≥10×10⁶ cycles |
|
Temperature |
−20…+60 °C operating |
same |
|
Dimensions |
83×57×32 mm relay |
167×148×55 mm plate |
|
Weight |
≈0.2 kg |
≈0.92 kg |
|
Global certs |
CE, cULus, RoHS |
CE, cULus, RoHS |
|
Industry Segment |
UR7BH Function Used |
Companion GE Modules |
Benefit Seen by End-User |
|
Power Generation (Mark VI) |
Front-panel local display & override |
VTUR, VCRC, I/O packs |
30 % faster fault finding |
|
Water Treatment Skids |
DIN-rail relay interposing |
90-30, RX3i, VersaMax |
Isolates 120 VAC valves |
|
Food Packaging OEM |
24 VDC → 230 VAC motor start |
QuickPanel+, PACSystems |
Compact, 6 mm width saved |
|
Marine Engine Retrofit |
CPU variant for backup governor |
EX2100, LM6000 |
Meets ABS shock/vib. |
