Description:A 16-channel high-voltage digital input card rated for 110 VAC/125 VDC, purpose-built to sense breaker auxiliary contacts—the “high-voltage ear” of power-plant and substation DC systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | UR6EH |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

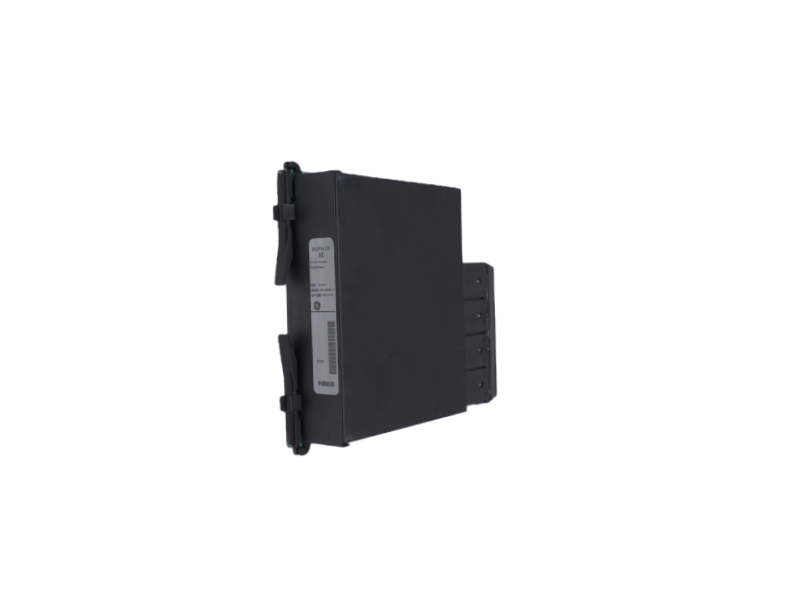

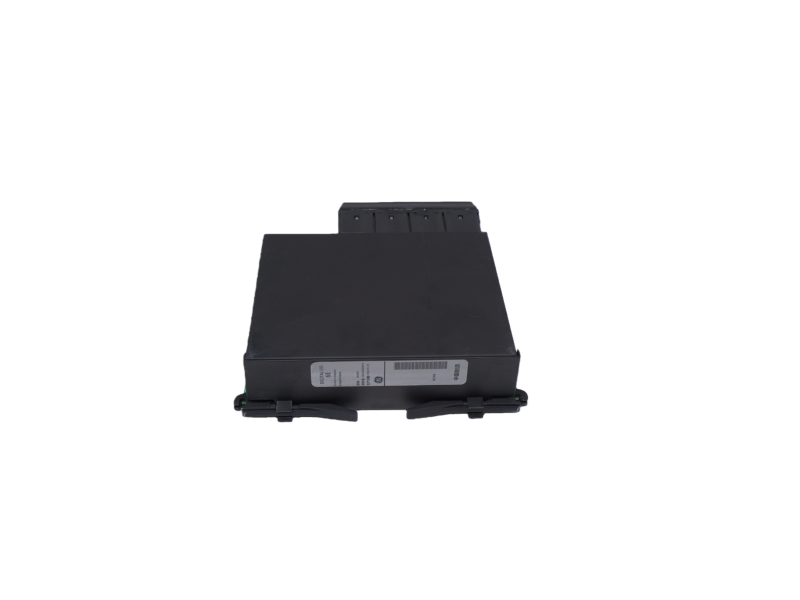

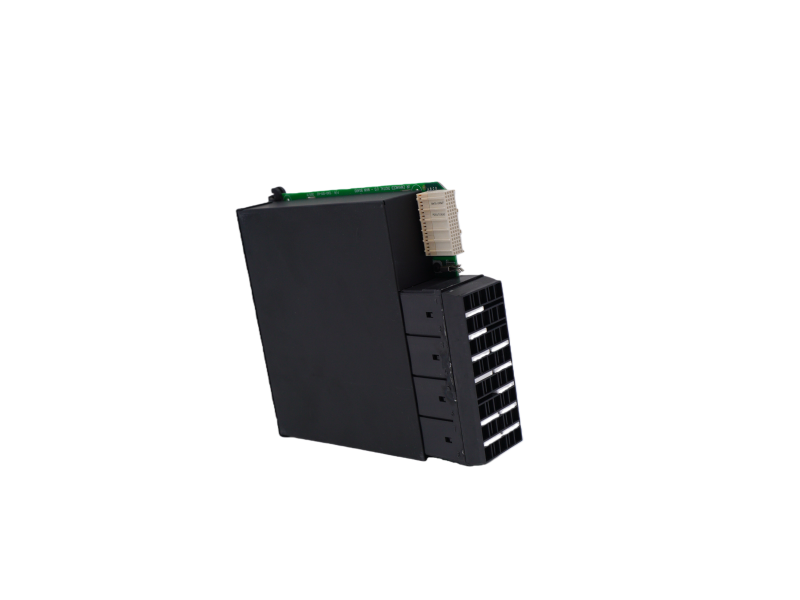

The GE UR6EH plug-in card gives any Universal Relay (UR) chassis eight true high-voltage digital inputs. Breaker auxiliary contacts, disconnect switches, spring-charge and gas-pressure flags can be wired straight to the UR6EH terminals—no interposing relays, no extra panel depth—while 2 kV optical isolation and <2 ms pick-up time keep protection logic and SOE records sub-cycle accurate.
Key Data
|
Item |
Specification |
Notes |
|
Inputs |
8 × HV digital |
2 kV opto-isolated, channel-to-ground |
|
Rated voltage |
110 – 380 V AC/DC |
45 – 65 Hz universal |
|
Pick-up / drop-off |
70 V ON / 30 V OFF |
Wide hysteresis, noise immune |
|
Input current |
≈ 3 mA @ 220 V |
Low heat, no derating |
|
Response |
< 2 ms |
Suitable for 1 ms SOE tagging |
|
Isolation |
2 kV RMS, 1 min |
Channel-to-channel & channel-to-backplane |
|
Temperature |
–40 … +85 °C |
Conformal-coated, no fan |
|
Compliance |
CE, UL 508, IEC 61850-3 |
Substation-hardened EMC |
Typical Wiring
Field dry-contact → UR6EH Euro-style terminal → on-board limiting → opto-coupler → UR bus. Self-resetting PTCs protect the circuit from surge or mis-wire; LED per channel gives local status at a glance.
Where It Fits
1. Substation automation: 220 V breaker position, lock-out relay and gas-low flags wired direct to UR6EH; CPU runs protection, metering and SOE in one box.
2. Generation plants: exciter ready, field-breaker and synchronizer selector voltages up to 380 V feed the same card, eliminating rows of 110 V interface relays.
3. Oil & gas topside: 380 V main-tie contactor auxiliaries drive emergency-shutdown logic through UR6EH with <2 ms update.
With over 20 years of experience in the industrial automation field, PLC Autocontroller has become a trusted global supplier of both new and obsolete automation components.
We specialize in providing genuine spare parts for PLC, DCS, and industrial control systems from world-leading brands, including GE, ABB, Honeywell, Yokogawa, Siemens, and Schneider Electric.
Our warehouse in Xiamen, China, supports rapid global delivery and reliable logistics solutions. We take pride in offering customers competitive pricing, technical accuracy, and excellent post-sale support (excluding on-site or remote guidance)
