DescriptionProvides 24-250 VDC / 100-240 VAC input and multiple isolated DC outputs for the whole UR chassis; hot-swappable and supports redundant parallel operation.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | UR1HH |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
For two decades, PLC Autocontroller has been at the forefront of the global automation industry, providing high-quality PLC, DCS, and industrial control components from world-leading brands. Based in Xiamen, China, our company serves customers across various sectors — including manufacturing, power generation, petrochemicals, metallurgy, and more — ensuring that every system runs smoothly, safely, and efficiently.

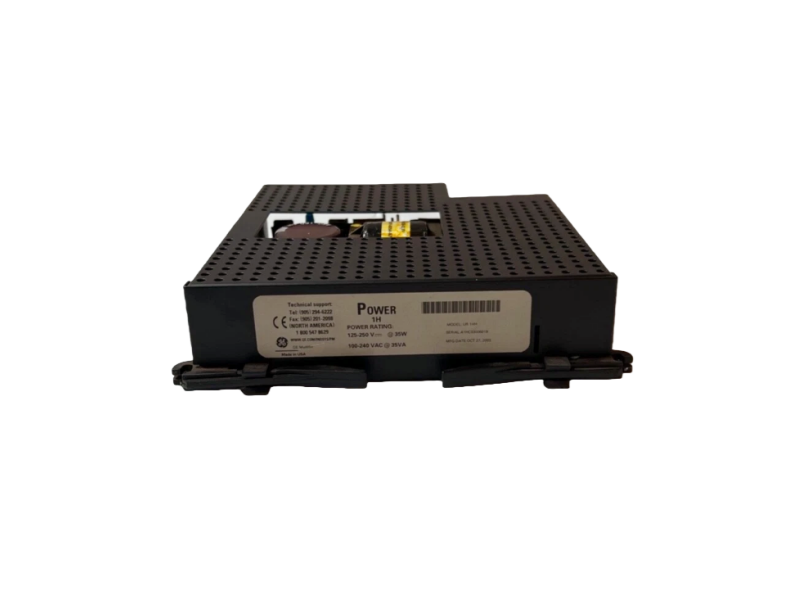

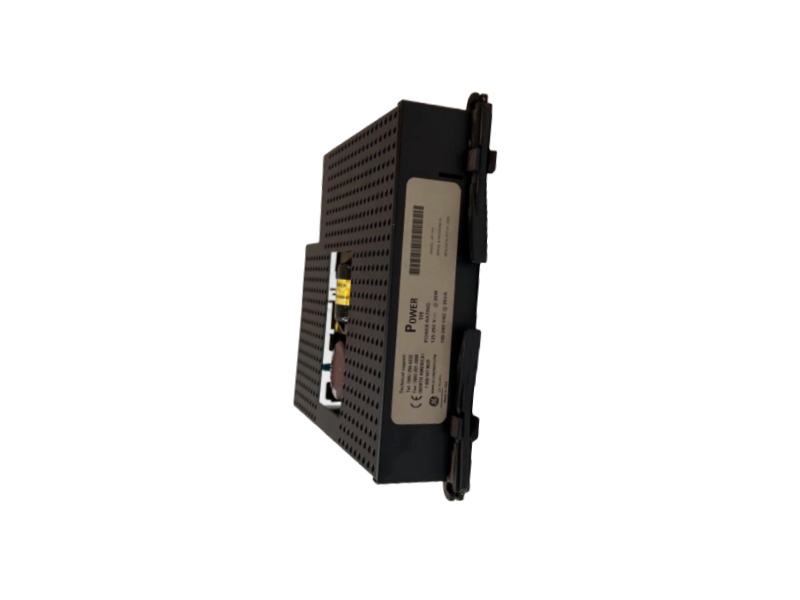

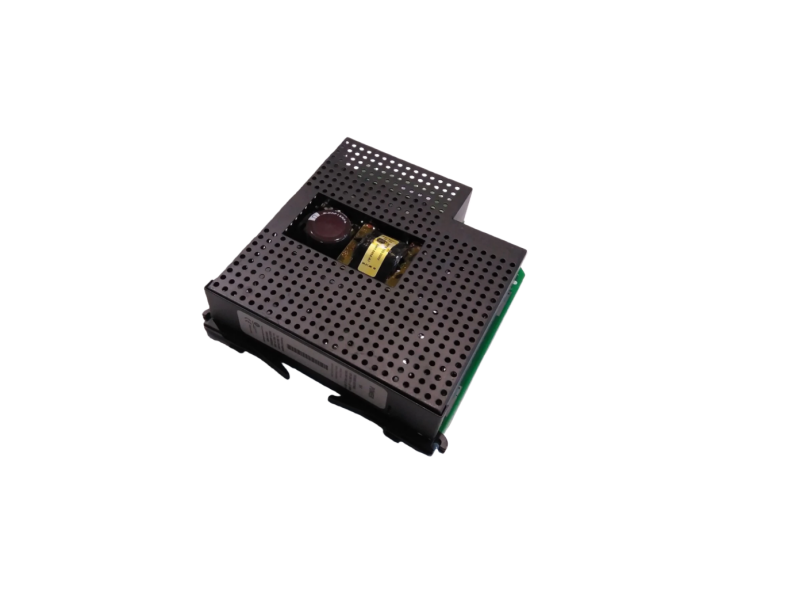

Converts 100-240 VAC (50/60 Hz) or 125-250 VDC into the internal 24 V DC bus that feeds every I/O and CPU card in a GE Multilin UR chassis.
35 W continuous output, cold-swap compatible, overload/short-circuit protected.
One UR1HH is mandatory in every rack; larger racks simply add a second unit for redundancy.
|
Part number |
Input range |
Output power |
Back-up time* |
Mounting |
Temp rating |
|
UR1HH |
85-264 VAC / 125-250 VDC |
35 W |
n/a (primary supply) |
Slot-in, 4 TE |
0…+60 °C |
|
UR8CH |
24-60 VDC (low-volt) |
35 W |
n/a |
Slot-in, 4 TE |
-40…+70 °C |
|
UR9EH |
110-220 VDC (high-volt) |
50 W |
n/a |
Slot-in, 4 TE |
-40…+70 °C |
*Back-up time = hold-up with external battery on UR-BATT connector.
|
Parameter |
Value |
|
Nominal output |
24 V DC ±2 % |
|
Ripple |
< 200 mV pp |
|
Efficiency |
> 85 % @ 230 VAC |
|
Hold-up time |
20 ms minimum (full load) |
|
Isolation |
2 kVrms input-to-output |
|
Protection |
OTP, OVP, OCP, UVP |
|
MTBF |
300 000 h (MIL-HDBK-217F, GB, 40 °C) |
|
Agency marks |
CE, UL 508, IEC 60255-27 |
PLC Autocontroller – 20 years serving automation markets
Sales Manager: May
E: ab@mooreplc.com
WhatsApp: +86-18106909650
WeChat ID: dcsfcs
Need a UR1HH price or like-for-like swap? Drop us a line – stock moves fast.
