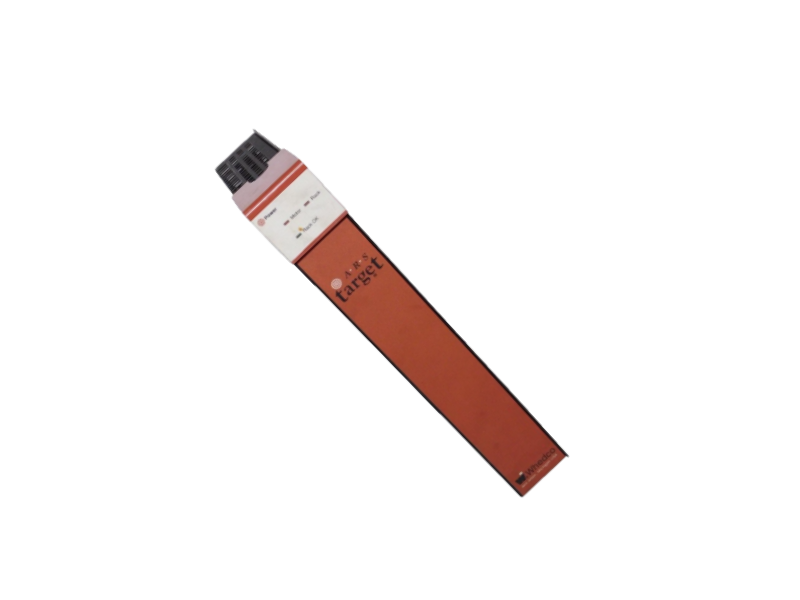

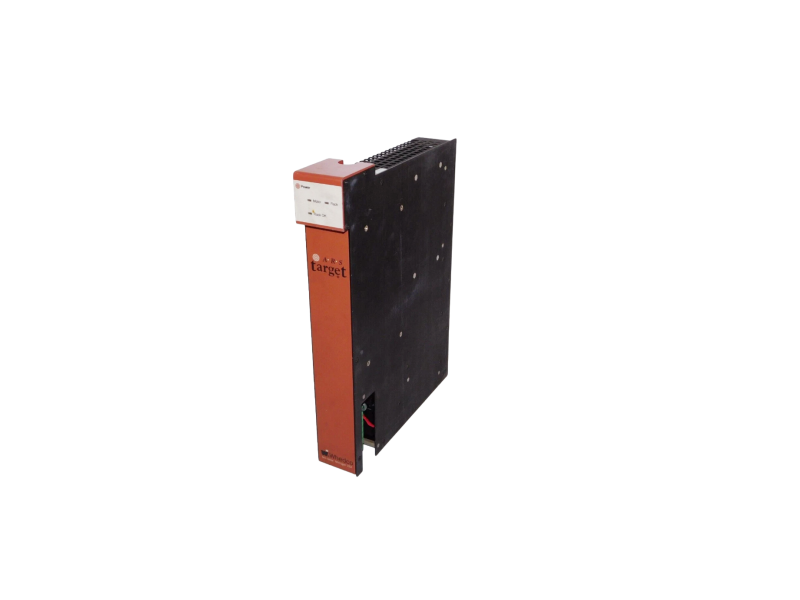

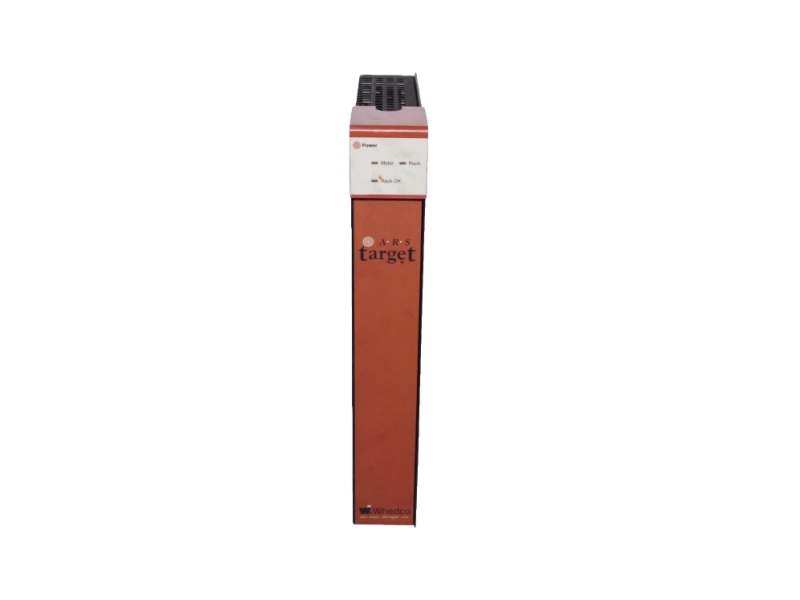

Description:GE TGT-3X6L-1-0-BD：High-efficiency servo power module for multi-axis motion systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | TGT-3X6L-1-0-BD |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Brand new and original | 12-month warranty | Xiamen stock
ü Commercial P/N: TGT-3X6L-1-0-BD
ü Internal GE / Whedco P/N: 78004658B
ü Weight: 3.85 kg (8.48 lb)
ü Protection class: IP20
ü Mounting: 35 mm DIN-rail + M4 screws (vertical preferred for airflow)
ü Hot-swap: Supported when rack is powered by redundant PSU
|
Parameter |
Value (Typ.) |
Remarks |
|
Input voltage |
220 VAC ±15 %, 50 / 60 Hz |
Single-phase |
|
Power rating |
1.5 kW continuous |
Peak 2.2 kW ≤ 5 s |
|
Max. output current |
10 A RMS |
Derate 2 % / °C above 45 °C |
|
Power loss |
≤ 75 W @ 8 A load |
Integrated heatsink, no external fan needed |
|
Internal DC bus |
300 VDC ±10 % |
Over-voltage clamp 400 V |
|
Isolation |
Reinforced 2.5 kVAC (input–earth), 1 kVAC (input–output) |
|
ü Command interface: ±10 V differential, 0–20 mA, or PWM 10–50 kHz
ü Digital I/O: 6 IN (24 VDC), 4 OUT (100 mA, short-circuit proof)
ü Encoder supply: 5 V / 250 mA + 24 V / 200 mA
ü Feedback types: Incremental TTL, 1 Vpp Sin-Cos, absolute SSI / BiSS
ü Communication port: RS-485 (Modbus-RTU) 38.4 kBd default
ü LED indicators: PWR, RUN, FLT, BUS, I²T |
✓ Over-current (hardware + software)
✓ Over-voltage / under-voltage on AC & DC bus
✓ IGBT thermal model & heatsink thermostat
✓ Motor short-circuit, earth-fault, phase-loss
✓ Stall / overload with adjustable I²t curve
✓ Encoder break-wire detection
All trips are self-latching; reset via digital input or software command.
|
