Description:Mark VIe series controller modules, responsible for executing control logic, data processing, and system communication.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS420UCSCH1A-F-V0.1-A |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Our Commitment
Adhering to the corporate philosophy of excellence, we are dedicated to providing superior service, a diverse range of parts, and faster delivery.
--Professional Service: Delivering first-class technical support and consultation to customers worldwide.
--Diverse Parts: Stocking millions of industrial automation and control components.
--Fast Delivery: Optimized logistics for efficient and timely shipments.
Product Positioning

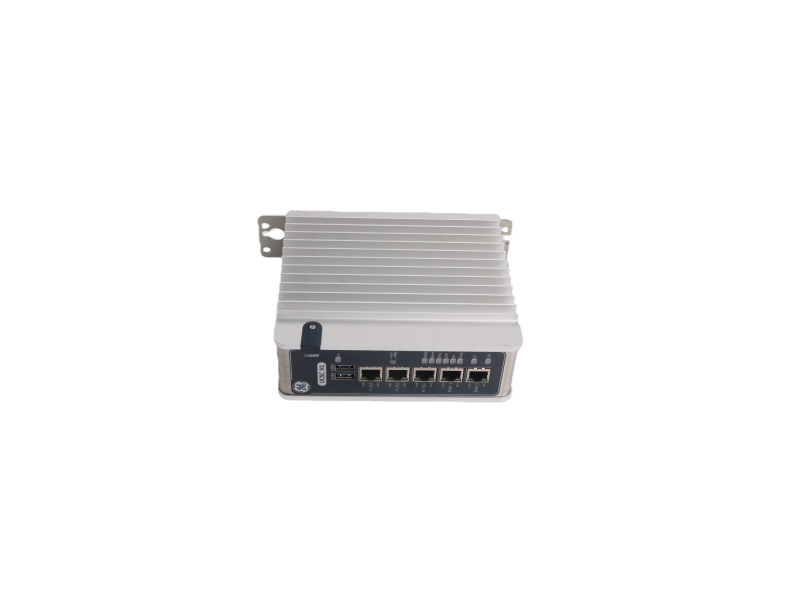

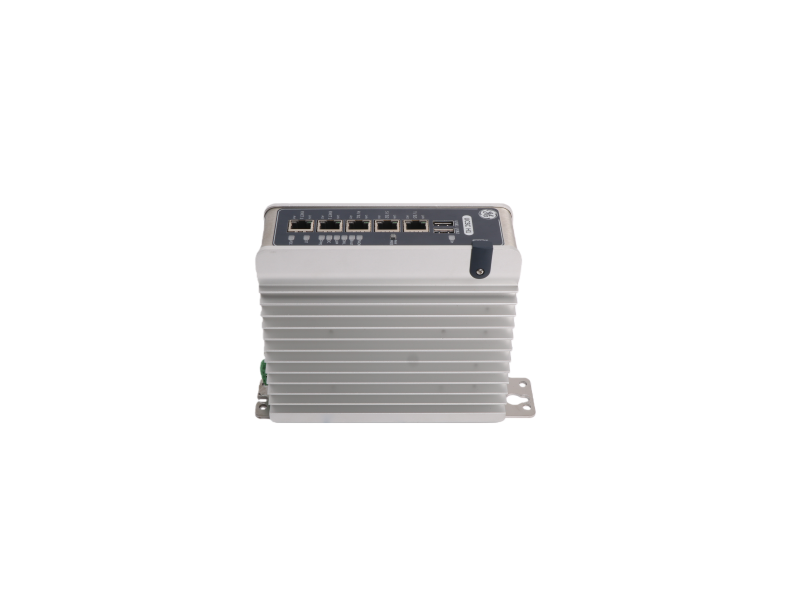

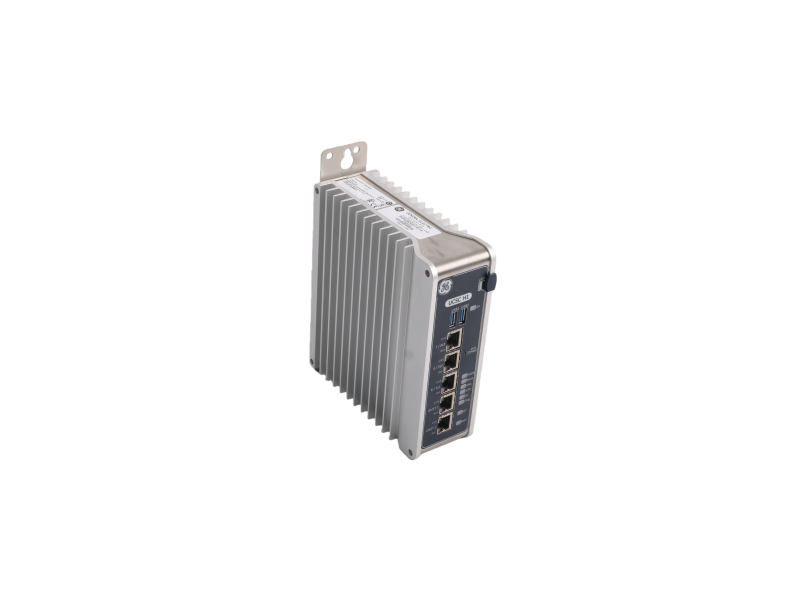

1 Device Type: Mark VIe quad-core industrial controller
2 Application Domain: High-performance real-time control & protection for gas/steam turbines, generators, compressors, pumps, pipeline stations, and chemical processes
3 Safety Level: SIL3-capable; supports TMR (Triple Modular Redundant), Dual and Simplex architectures
Hardware Architecture
|
Item |
Specification |
|
CPU |
AMD V1000 family 64-bit quad-core 1.6 GHz (2.0 GHz option) |
|
Memory |
1 GB DDR3-1600 ECC |
|
Storage |
4 GB SLC Flash (2 GB system, 2 GB user) |
|
On-board I/O |
6 AI (±20 mA / ±10 V), 2 AO (0–20 mA / ±10 V), 4 DI/DO (24 VDC) |
|
Communication |
LAN 1 / LAN 2: 10/100/1000 Mbps Ethernet; Profinet, Modbus TCP/IP, Ethernet/IP, IONet, IEEE 1588 PTP |
|
Power & Consumption |
18–36 VDC isolated, redundant terminals; ≤ 15 W @ 24 VDC |
|
Mechanical |
134 mm × 200 mm × 65 mm (DIN-rail); ≈ 0.9 kg |
|
Operating Temperature |
–40 °C … +70 °C |
|
Protection |
IP 20 (EN 60529) |
|
Cooling |
Fan-less, aluminium chassis natural-convection |
