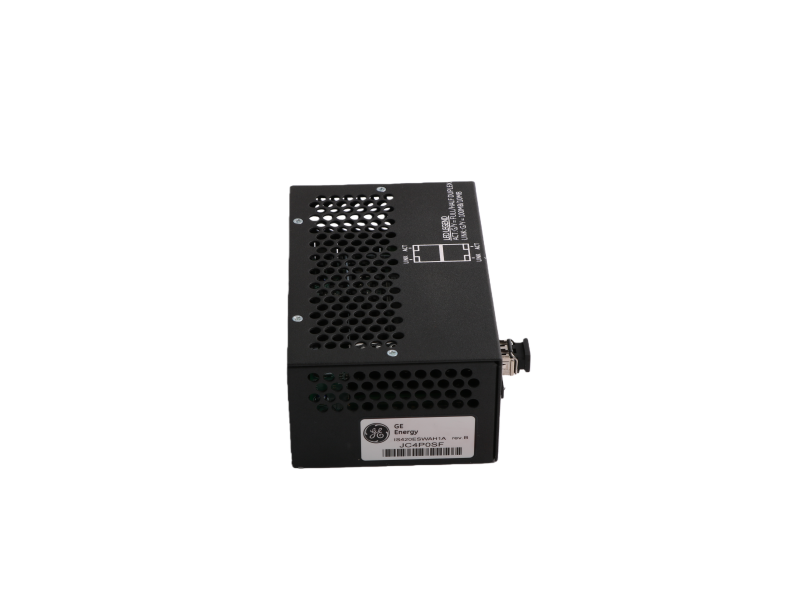

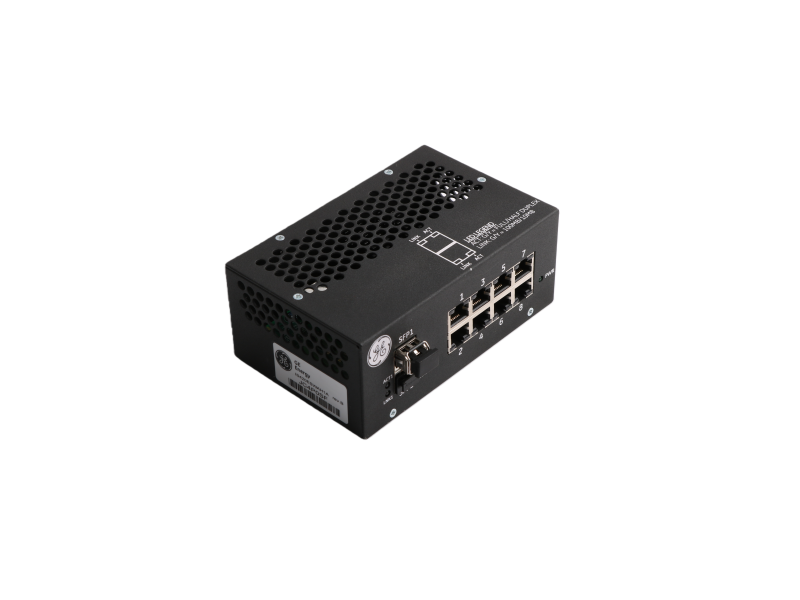

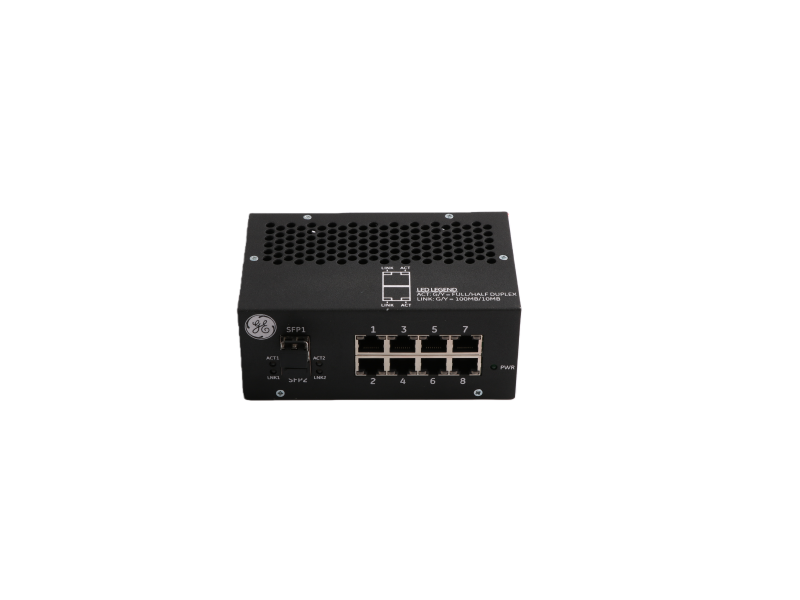

Description:8-port 100 Mb IONet switch, plug-and-play, -40~+70 °C, links controllers to I/O-Packs.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS420ESWAH1A |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller – 20 Years Focus on Premium Automation Modules, Xiamen Stock
|
# |
Frequently-Asked Question |
Official Answer |
|
1 |
What exactly is IS420ESWAH1A? |
It is an industrial-grade IONet switch with 8× electrical ports and 1× multi-mode optical port designed by GE for Mark VIe/Mark VIeS gas turbine/steam turbine control systems, used to build a redundant real-time Ethernet backbone. |
|
2 |
Exact port configuration? |
8×10/100BASE-TX RJ45 (auto-negotiation full/half duplex) + 1×100BASE-FX SC multimode fibre, 2 km uplink distance. |
|
3 |
Network protocols supported? |
IEEE 802.3/802.3u/802.3x, HP-MDIX, broadcast-storm suppression, 4 K MAC table. |
|
4 |
How is it powered? |
Dual redundant 24 VDC inputs, 18-32 VDC wide range, internal diode ORing, hot-swappable, <5 W consumption. |
|
5 |
How harsh an environment? |
Operating -30…+65 °C, storage -40…+85 °C; 5-95 % RH non-condensing, ATEX Zone 2 & marine approvals. |
|
6 |
Mounting method? |
Standard DIN-rail (clips 259B2451BVP1/2 needed) or panel; size 125×50×115 mm. |
|
7 |
LED indicators? |
Bi-colour per port (Link/Activity/Speed/Duplex); PWR LED green = power OK. |
|
8 |
Difference vs. IS420ESWAH2A? |
H1A = 1 fibre port, H2A = 2 fibre ports; otherwise identical, can be mixed in ring. |
|
9 |
Redundant ring possible? |
Yes, Mark VIe controller embeds ring redundancy, <50 ms switch-over, zero packet loss. |
|
10 |
Typical topology? |
Controller←→ESWAH←→I/O-Pack×N, star or ring, max 64 nodes per segment. |
|
11 |
Packing details? |
Original factory box + anti-static bag + foam cushion, outer carton with RoHS/CE label and serial number. |
|
12 |
Warranty period? |
WARRANTY: 12 months . |
|
13 |
Payment methods? |
PAYMENT: T/T . |
|
14 |
Quotation validity? |
PRICE CONFIRMATION: Spot quote valid 1 week . |
|
15 |
Long-term supply? |
LONG-TERM SUPPLY; CUSTOMER SERVICE 7×24 h—call/WhatsApp +86-18106909650 (May), WeChat dcsfcs, e-mail ab@mooreplc.com, reply within 1 h! |
Need more GE, Woodward, Bently or ABB premium modules? Call or e-mail us anytime for the full list!
