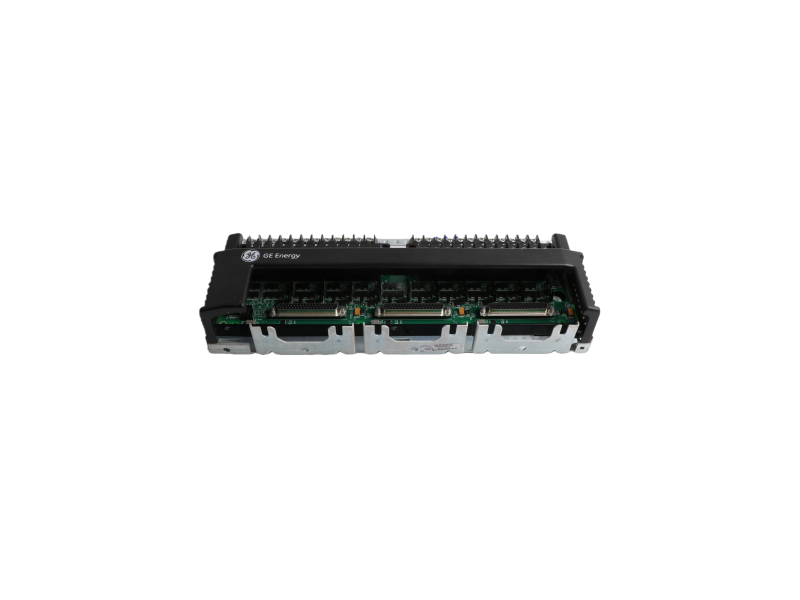

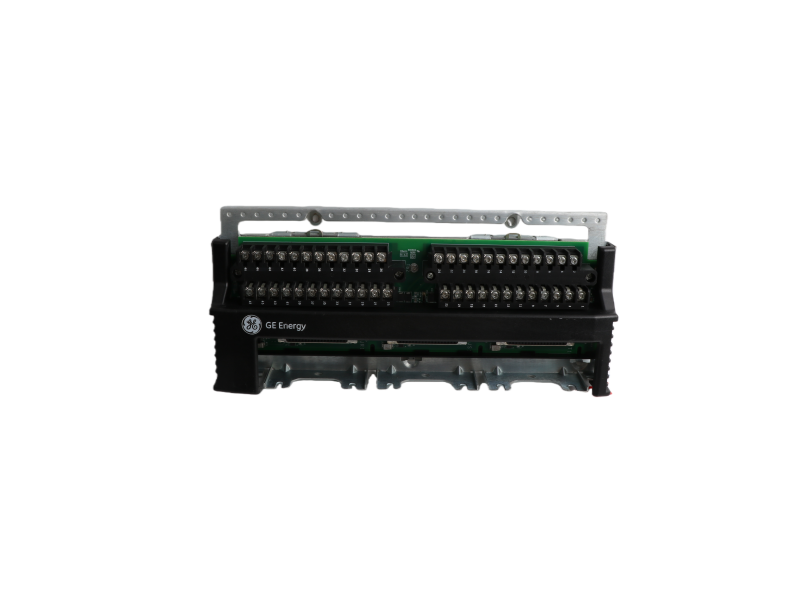

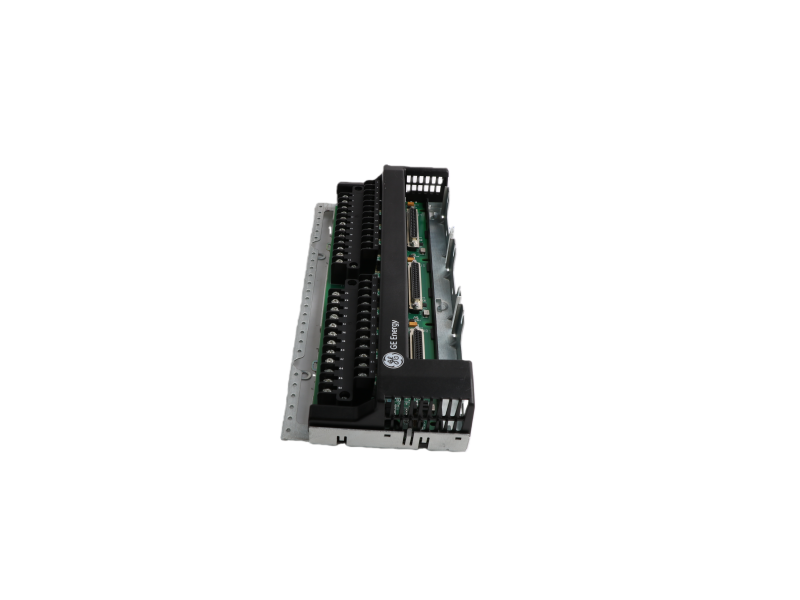

Description:Isolated input module for acquiring isolated analog or digital input signals.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS230TAISH2C IS200TBAIS1CED |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
u Purpose
High-acquisition TC, mV and 0-5 V differential signals for gas-turbine exhaust, steam loop and other critical temperature points.
u Inputs
16 differential channels, software-selectable: types J/K/N/E, ±50 mV, ±100 mV, 0-5 V; 24-bit resolution, 10 Hz update.
u Isolation & Protection
Ch-ch 250 Vrms, ch-system 500 Vrms; over-voltage ±60 Vdc, surge IEC 61000-4-5 Level 3.
u Cold-junction
On-board PT100 RTD, accuracy ±0.5 °C; redundant external CJ board supported.
u Wiring
Pluggable 32-pos. spring clamp, AWG 12-28; 12-module wide DIN-rail carrier, hot-swappable.
u Comms
Dual RJ-45 IONet 100BASE-TX, ring recovery < 20 ms; LEDs for module, network & channel health.
u Environment
–40…+70 °C, 5…95 % RH non-condensing; CE/UL/ATEX Class I Zone 2 IIC T4.
u Purpose
Field terminals and cold-junction pool for TBAI or TCQA I/O Packs in distributed exhaust-temperature systems.
u Inputs
16 TC channels, copper-copper terminations < 20 µV thermal EMF; corner-mounted PT100 CJ block.
u Mechanical
PCB 160 × 178 mm, 48 field terminals; stackable twin-board, weight 0.45 kg.
u Protection
200 mA resettable PTC per channel, TVS surge suppression; 500 Vrms transient withstand.
u Agency
UL E2067685, Class I Div 2 Groups A/B/C/D T4; rated –20…+65 °C continuous.
u Cable
64-pin header to IS215TBAI/TCQA, max length 30 m.
|
Aspect |
IS230TAISH2C |
IS200TBAIS1CED |
|
Platform |
Mark VIe DIN-rail |
Mark VI terminal board |
|
Function |
Acquire + A/D + IONet |
Terminals + CJ only |
|
Hot-swap |
Yes |
No |
|
Channels |
16 diff |
16 diff |
|
Accuracy |
±0.1 % rdg |
< 20 µV contact EMF |
|
Mounting |
35 mm DIN |
Rear screws |
|
Diagnostics |
Per-ch LED & remote |
Local CJ LED |
