Description:Identical spec and safety rating to YDOAS1A; “J” is an internal revision—fully interchangeable.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS220YDOAS1AJ safety-rated discrete-output I/O-Pack |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

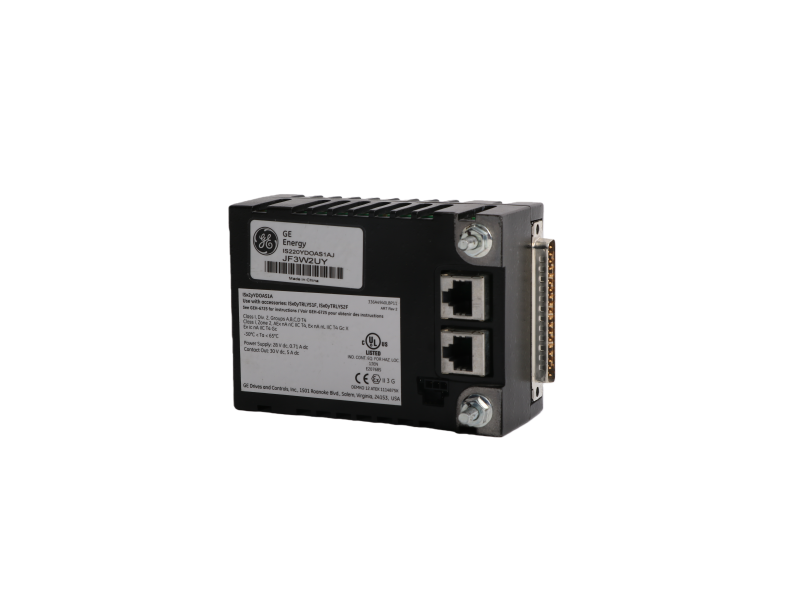

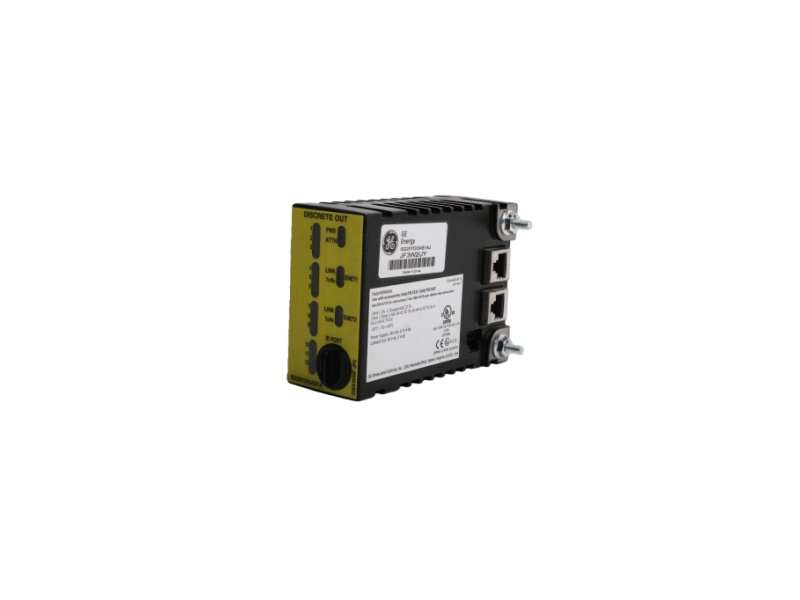

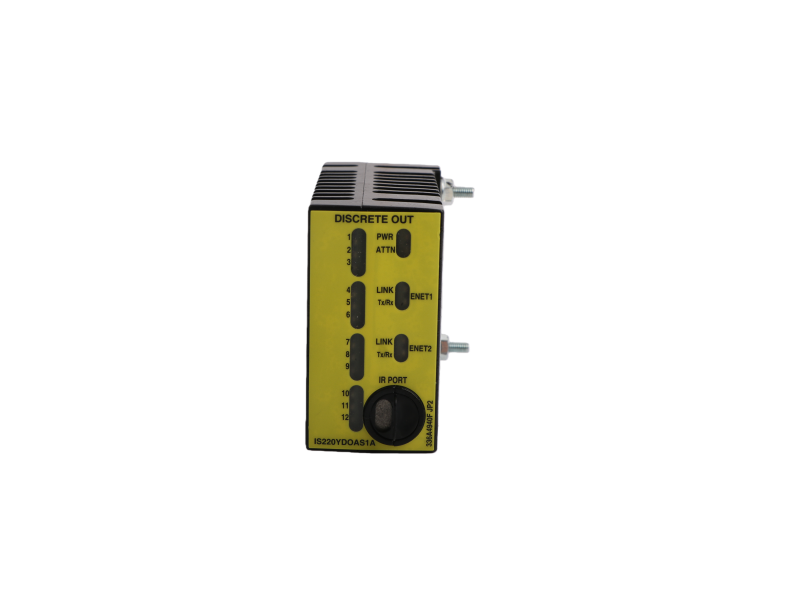

IS220YDOAS1AJ is a 12-channel, safety-rated discrete-output I/O-Pack. It bolts directly onto a Mark-VIe(S) terminal board (TRLY-series) and is recognised by the controller as the “YDOA” output function.
Typical loads are solenoid valves, motor contactors, strobe horns and circuit-breaker trip coils in gas-/steam-turbine skids .
|
Parameter |
Value |
|
Part number |
IS220YDOAS1AJ |
|
Pack function |
Safety discrete output (YDOA) |
|
Output channels |
12 Form-C relay contacts (potential-free) |
|
Contact rating |
24 VDC / 120 VAC – 2 A resistive, 80 VA pilot-duty (per chan.) |
|
Field connector |
37-pin D-sub (DC-37) mounted on pack |
|
Isolation |
1500 Vrms field-to-logic, 500 Vrms chan-to-chan |
|
Ethernet ports |
2× 10/100BASE-TX (IONet-A, IONet-B) |
|
Firmware base |
V05.00 or later |
|
Software support |
Control-ST V06.01 or later |
|
On-board LEDs |
12 yellow (relay commanded), 4 status (Diag / Net) |
|
Key Difference |
IS220YDOAS1A (Standard) |
IS220YDOAS1AJ (G3 Coated) |
|
Suffix meaning |
none (base model) |
“J” = G3 conformal coat + enhanced temp. |
|
Conformal coat |
no |
yes (G3, ISA 71.04 FX-3) |
|
Operating temp. |
–30 … +65 °C |
–30 … +70 °C * |
|
Part-number core |
362A968P415 |
362A968P415KD |
|
Net weight |
0.20 kg |
0.20 kg (same) |
|
Applicable in coastal / H₂S sites |
limited |
recommended |
|
Price adder (Q4-2025) |
baseline |
+8 % typical |
