Description:Same hardware as YDIAS1A; “K” is only a lot code—function, wiring and use are identical.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS220YDIAS1AK |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Identity & Function

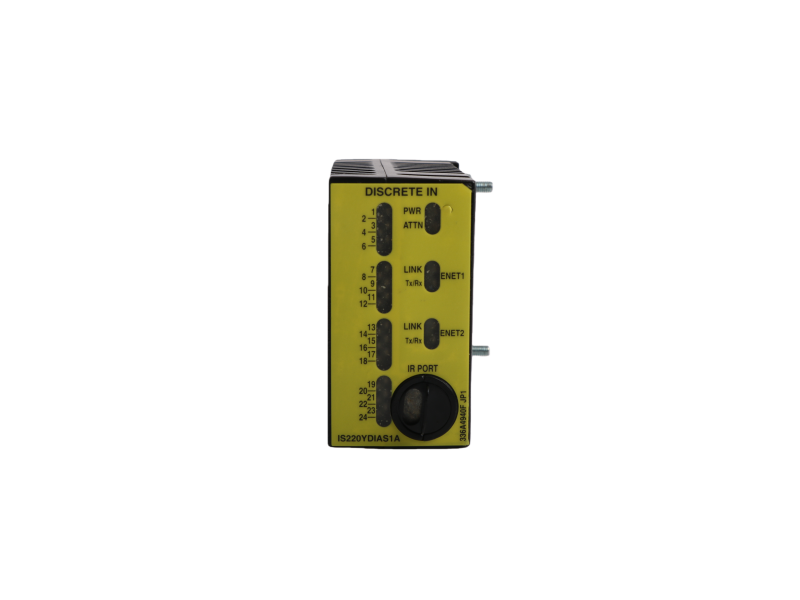

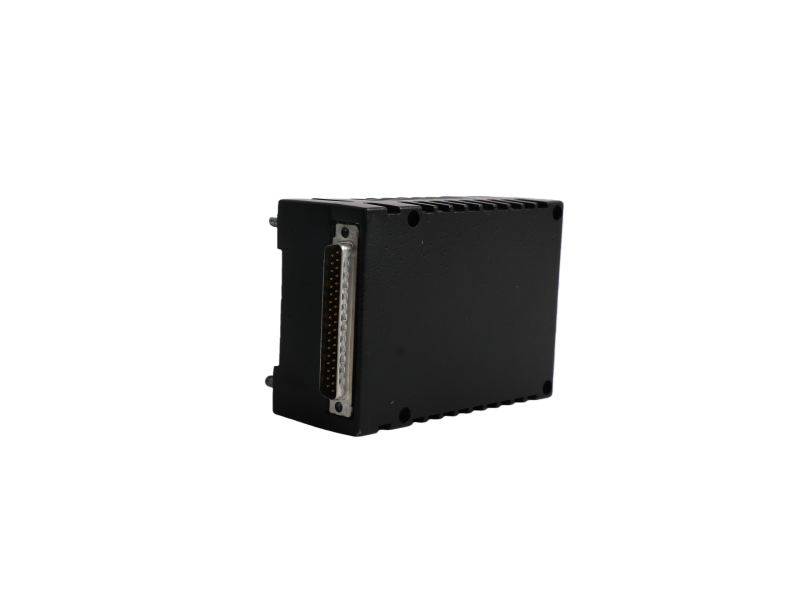

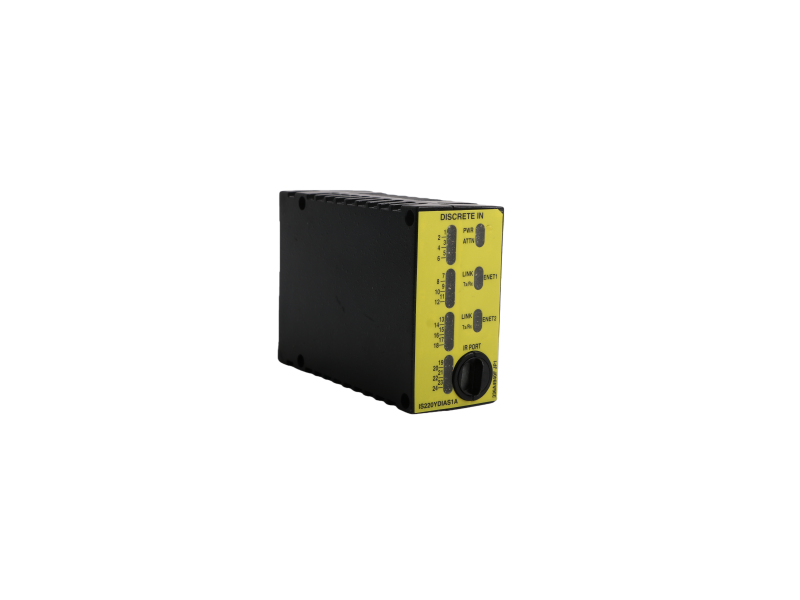

IS220YDIAS1AK is a 16-channel, 24 VDC discrete-input I/O-Pack in GE’s Mark-VIe safety-critical architecture.
It is NOT a stand-alone PLC card; it clicks directly onto a terminal board (e.g., IS200TREGH1B) and communicates with the controller over the IONet / Ethernet I/O ring. In turbine language it is the “contact-wetting” pack for speed probes, limit switches, vibration locks and ESD push-buttons.
Key Parameters at a Glance
|
Item |
Specification |
|
Channels |
16, current-sinking |
|
Nominal Voltage |
24 VDC (operating range 16…32 V) |
|
Input Impedance |
4.7 kΩ |
|
Typical Wetting Current |
5 mA |
|
Scan / Debounce |
1 ms, configurable 0…255 ms |
|
Isolation |
500 Vrms channel-to-bus, 1500 Vrms field-to-ground |
|
Power Consumption |
≤5 W from 28 VDC back-plane, no external supply |
|
Operating Temperature |
-40…+70 °C |
|
Relative Humidity |
5…95 % RH non-condensing |
|
Protection Rating |
IP20 |
|
Housing / Dimensions / Weight |
Aluminum, 12.2 × 8.2 × 6 cm, ~0.38 kg |
|
Certifications |
CE, UL, CSA, IEC 61131-2 Zone 2; optional G3 conformal coat |
|
Communication |
100 Mb/s EtherNet I/O (IONet) |
One-Minute Installation Checklist
a) Slide along DIN-rail until black latch clicks—wrong orientation will not seat.
b) Use Belden 7965A CAT-5e for IONet; copper ≤100 m, fiber up to 2 km with SFP.
c) Field wires: 0.5–2.5 mm², 85 °C minimum, cage-clamp torque 0.5 N·m.
d) Set “Input Filter” in ToolboxST—default 2 ms eliminates contact bounce.
e) Redundancy: same part number covers Simplex, Dual or TMR R-sectors.
Compatibility & Retrofit
Drop-in replacement for legacy IS200STAIH2A board-set while keeping existing terminal boards and field cabling. Do NOT confuse with IS220YDIAS1A (no “K” suffix) which lacks G3 corrosion coating.
Typical Applications
Gas & steam turbines, centrifugal compressors, HRSG gensets—any SIL-2 discrete input inside a Mark-VIe or Mark-VIeS safety loop. Common signals: overspeed bolt, thrust-bearing wear, fire-gas trip, generator differential lock-out.
Quick Fault Guide
• IONet LED amber blink → switch port mismatch; set fixed 100-FDX.
• DIAG LED red 2 Hz → channel over-voltage (>32 V); add external 24 V regulator.
• No LED life → pack not seated or 28 V rail missing; measure P3-P4 ≥18 V.
