IS220PTCCH1A Thermocouple temperature input module

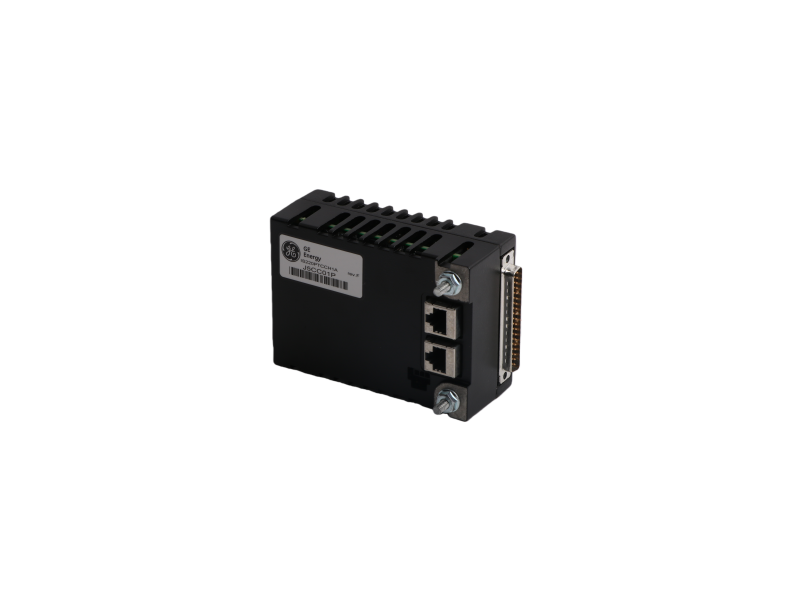

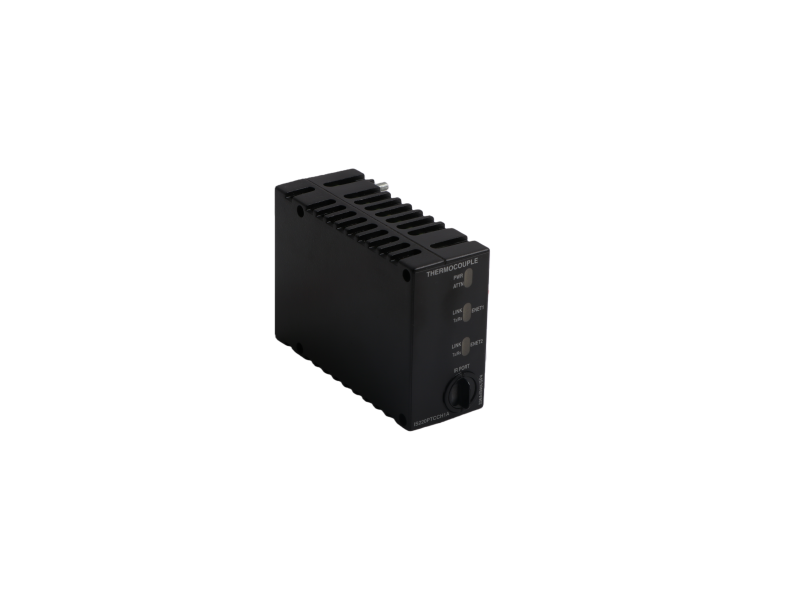

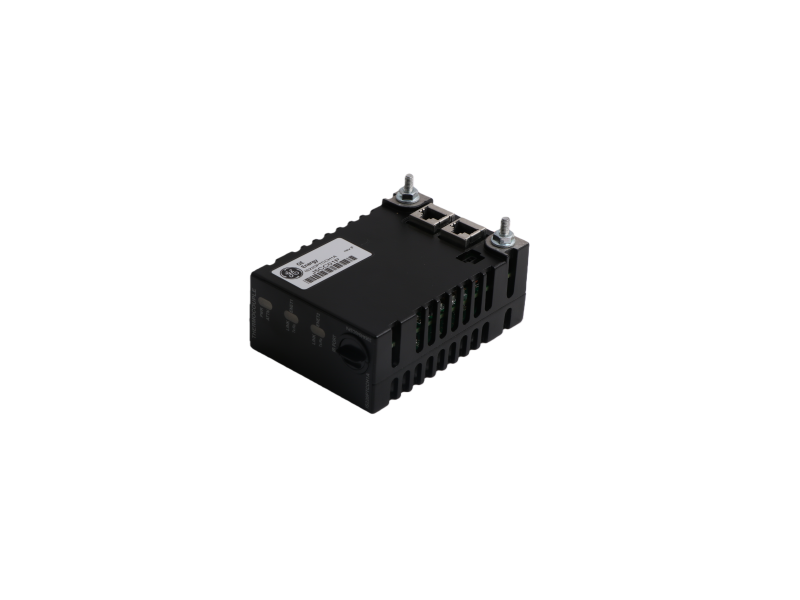

GE IS220PTCCH1A Thermocouple temperature input module

Name: GE IS220PTCCH1A Thermocouple temperature input module
Availability: InStock

Based on over 5000 reviews

Description:IS220PTCCH1A Mark VIe thermocouple temperature input module

Product condition: New

Packing condition:Factory Packing

100% insured shipping: A guarantee for your purchases

PLC Autocontroller DELIVER PARTS TO WORLD.

Inquire Now

Worldwide delivery
Delivery from stock
In stock really means in stock
No account required
Shipped from the China

Product Specifications

Manufacturer	GE
Item number	IS220PTCCH1A
Country of Origin	United States
Lead Time	In stock
After-Sales Support	12-months
HS Code / Commodity code	8537101190

FAQ

How long is my quote valid for?

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Is there any warranty?

Yes,we offer one year warranty for all new products.

Do you offer global delivery?

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

How many days will it take for my part to arrive?

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

1. Core Identity

IS220PTCCH1A is a Mark VIe-series thermocouple/RTD input slice that turns millivolt-level field signals into high-resolution temperature data for gas- and steam-turbine control loops.

2. Key Specifications

Channel count	24 differential TC or 12 3-wire RTD
Sensor types	J, K, E, T, N, S, R, B / Pt100, Ni120, Cu10
Accuracy	±0.1 % of reading ±0.2 °C (RTD) ; ±1 °C (typical TC)
Update rate	50 ms per channel (configurable 10–1000 ms)
Isolation	250 V rms channel-to-bus, 1500 V surge
Diagnostics	Open-circuit, short-circuit, over-range flags pushed to controller

3. Mechanical & Power

Ø Slice width: 38 mm – single-slot on Mark VIe I/O rack

Ø Power draw: 3.8 W @ 28 VDC (redundant feed from rack back-plane)

Ø Operating temp: –40 … +70 °C (G3 conformal coating standard)

4. Typical Application Hook-up

TC extension wires land on removable spring-clamp terminal blocks (IS-TBCH1A); cold-junction compensation is integrated in the slice, eliminating external ice-point references.

5. Certifications & Compliance

CE, UL 508, ATEX Zone 2, IEC 61000-6-2/4, IEEE 1613 (electric substation), RoHS.

6. Why Stock at PLC Autocontroller

Same-day shipment from Xiamen warehouse; every unit burned-in on a live Mark VIe rack and shipped with serialized test report. 20-year turbine spares expert—talk to an application engineer in English or Chinese within 10 min.

Company	Contact	Phone / WhatsApp	WeChat	Email
PLC Autocontroller	May	+86-18106909650	dcsfcs	ab@mooreplc.com

What happens next?

Email confirmation
You will get an email confirming that we've received your enquiry.
Dedicated Account Manager
Our team will reach out soon to verify your part specs.
Your quote

You’ll get a fully customized quote to fit your unique needs.
