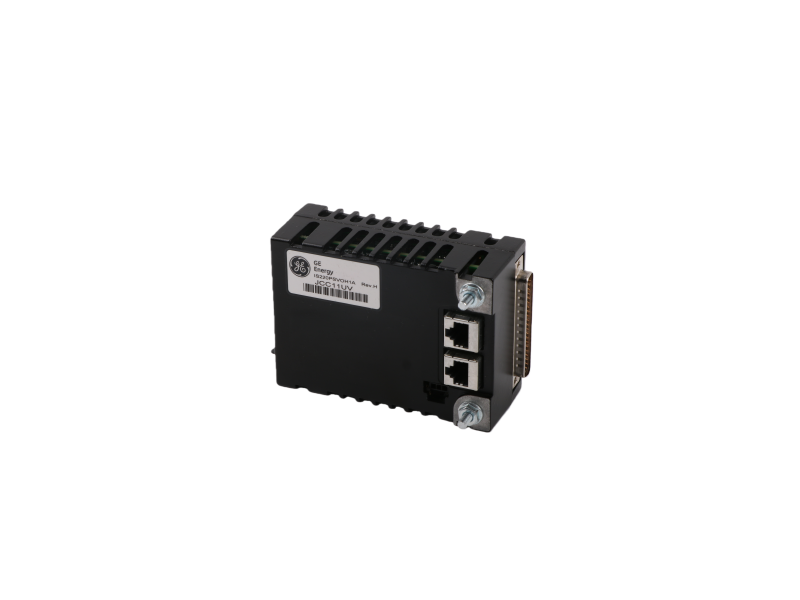

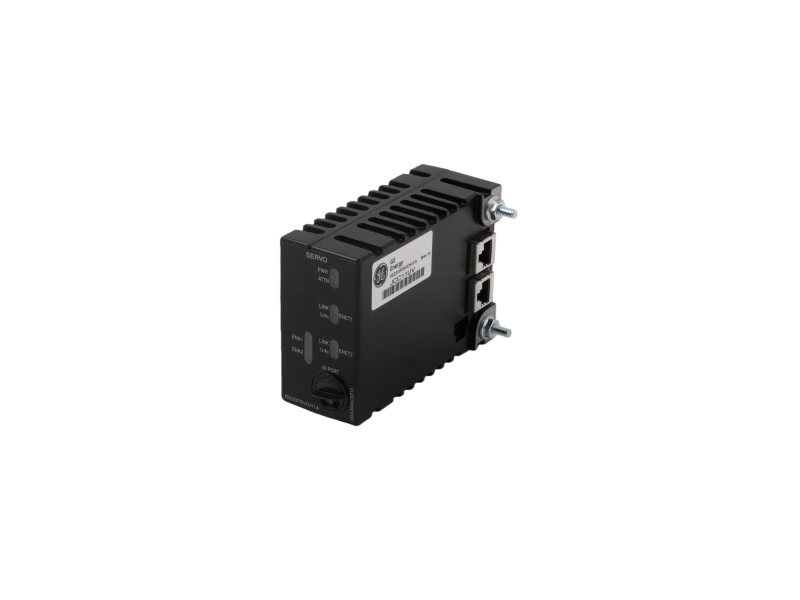

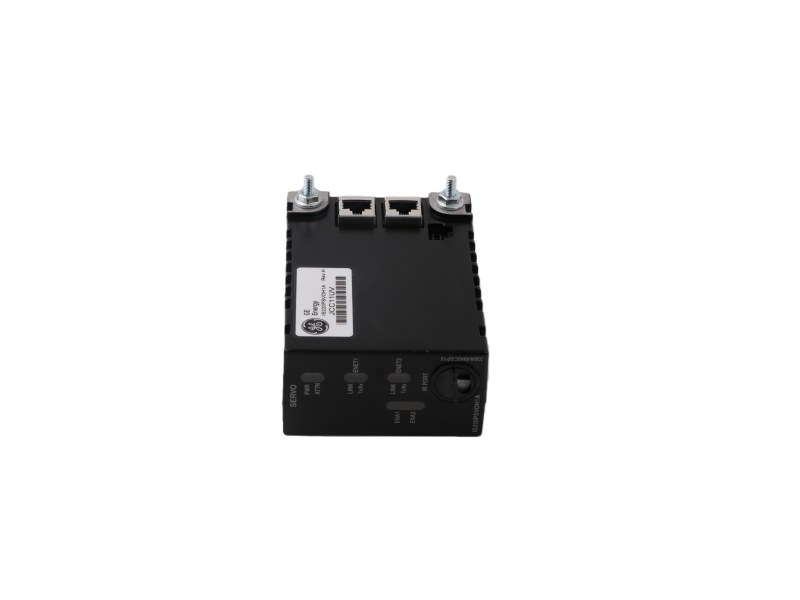

Description:GE IS220PSVOH1A is a “Servo Valve Output / Position Loop” I/O module—often called a “servo control pack”—developed by General Electric for the Mark VIe control system.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS220PSVOH1A |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
GE IS220PSVOH1A is a “Servo Valve Output / Position Loop” I/O module—often called a “servo control pack”—developed by General Electric for the Mark VIe control system.
It handles the following key tasks in gas/steam-turbine control, process control and general automation:
1.High-precision servo-drive output
Configurable ±10 V or 0–20 mA analog output to drive servo valves, actuators or variable-speed motors
16-bit resolution, typical accuracy ±0.1 %, directly controls fuel valves, IGVs, steam valves, etc.
2.Dual-channel position-loop control
One module closes two independent servo/position loops (LVDT/RVDT feedback); supports position, speed or force modes
Pairs with the TSVO terminal board for 8 LVDT inputs, 2 pulse-rate inputs and 2 servo outputs
3.Network & system interface
Two independent 10/100 M Ethernet ports (ENet1/ENet2) on the front; exchanges data with the controller over Mark VIe IONet
Supports TMR (Triple Modular Redundancy) and hot-swap; meets SIL / turbine-safety requirements
4.Diagnostics & maintenance
On-board temperature sensor and self-diagnostics: over-temp, wire-break, excessive deviation, etc.
Re-configuration via ToolboxST—automatic or manual; no re-download of control strategy after module swap
5.Environmental & mechanical specs (may vary by revision)
Operating temp.: –30 °C to +65 °C (some –40 °C to +85 °C)
Power: 24 VDC from backplane; power draw ≈ 12-25 W
Size ≈ 8.3 cm × 4.2 cm × 12.1 cm; weight 0.5-1.5 kg
IP20; rail-mounted in the system rack
6.Typical applications
Servo positioning of gas/steam-turbine fuel valves, IGVs, extraction valves
Speed or position control for large compressors, pump stations, fans
Any industrial automation that needs redundancy, fast response (<10 ms) and high accuracy (0.01 %)
7.Our Advantages
Fast Quotation & Quick Delivery – Get the parts you need without delay.
Comprehensive Support – We provide professional assistance both before and after sales.
Dedicated Team – Our staff work diligently to respond to your inquiries promptly.
Guaranteed Warranty – All products come with assured quality protection.
Flexible Returns – Goods return and replacement are accepted under warranty terms.
Integrity First – We keep our promises and deliver what we commit.
In short: IS220PSVOH1A is the Mark VIe module dedicated to high-accuracy, dual-loop servo-valve / actuator control, integrating analog output, position feedback, network communication and diagnostics—an essential servo interface for gas & steam turbines and other high-end automation.
