Description:Power/interface module for GE's Mark VIe system used in industrial automation control.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS220PGENH1AE |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

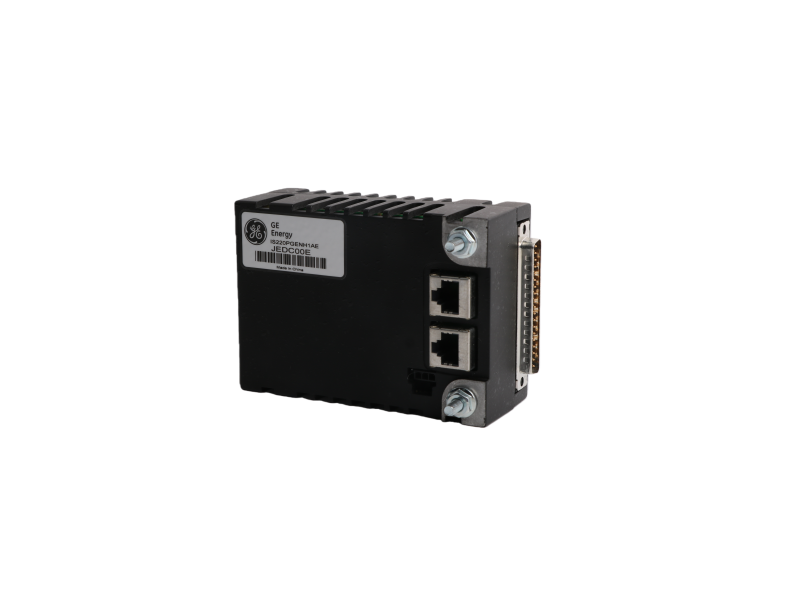

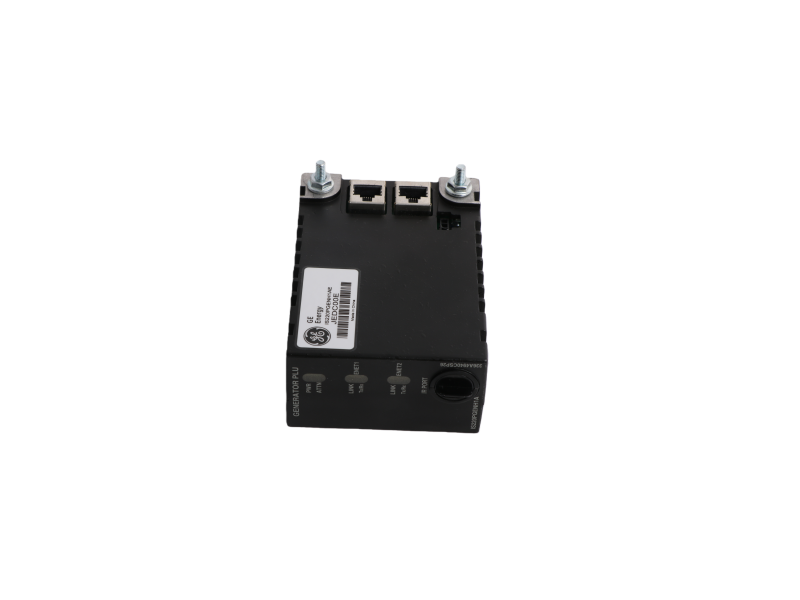

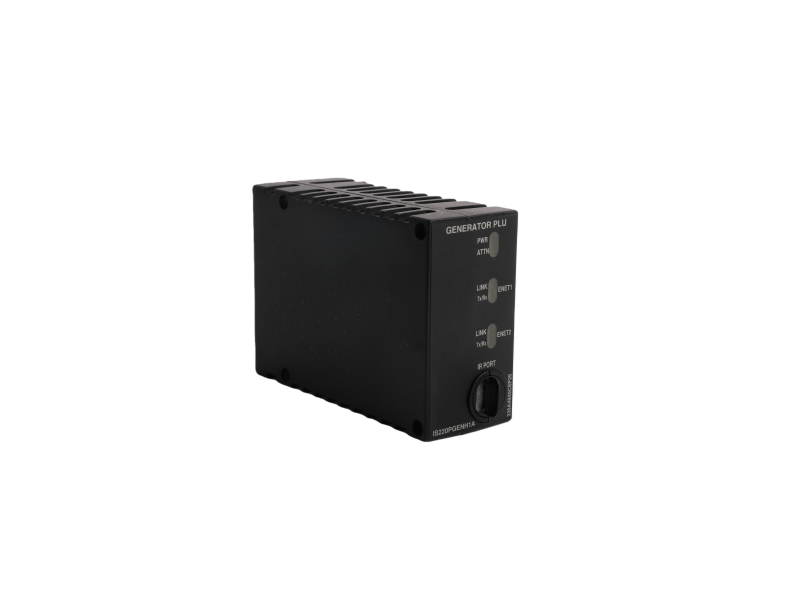

GE IS220PGENH1AE – Power & Ethernet Gateway Slice
Function: Delivers isolated 28 VDC bus plus dual-Ethernet switch for up to 8 I/O slices inside one Mark VIe pack.
|
Quick Spec |
Value |
|
Input range |
18–36 VDC, redundant diode OR-ing |
|
Output power |
120 W continuous, 150 W for 5 s |
|
Efficiency |
92 %, <25 W self-dissipation |
|
Protection |
OTP, OVP, 2 A electronic fuse, hot-swap |
|
Ethernet |
2×RJ-45 100BASE-TX + 1×100BASE-FX (LC) |
|
Ring recovery |
<15 ms (RSTP) |
|
Dimensions / mass |
131 mm H × 64 mm W, 270 g |
|
MTTR |
<5 min (front insertion, tool-free) |
Business benefits
✓ Eliminates external 24 V supplies – lower panel cost
✓ Fiber uplink = noise immunity on long turbine runs
✓ Dual copper & fiber feeds – zero single-point failure
✓ ≥80 pcs in Xiamen stock, same-day dispatch
All units supplied by PLC Autocontroller – 100 % brand-new & original, 12-month warranty
|
Product Family |
Short Description |
Key Specifications |
|
IS220PAOCH1A |
Mark VIe |
8-ch 0-20 mA analog output |
|
IS220PAOCH1BE |
Mark VIe |
SIL-2 8-ch analog output |
|
IS220PGENH1AE |
Mark VIe |
Power & Ethernet gateway |
|
IS220PVIBH1A |
Mark VIe |
Vibration input (proximitor) |
|
IS220PTURH1A |
Mark VIe |
Turbine I/O pack |
|
IC695CPU320 |
RX3i PACSystem |
1 GHz dual-core CPU |
|
IC695CHS007 |
RX3i |
7-slot universal back-plane |
|
IC200ALG326 |
Series 90-30 |
12-bit 4-ch analog output |
|
IC200CPUE05 |
Series 90-30 |
CPU with Ethernet |
|
PVX012A0X3-SRZ |
Critical Power |
66 W DC-DC converter |
|
APTS006A0X-SRZ |
Critical Power |
33 W PoL converter |
|
IC694APU300 |
Series 90-30 |
High-speed counter |
