Description:16-channel analog input module accepting voltage/current signals, offering HART communication and TMR redundancy support.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS220PAICH1A |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

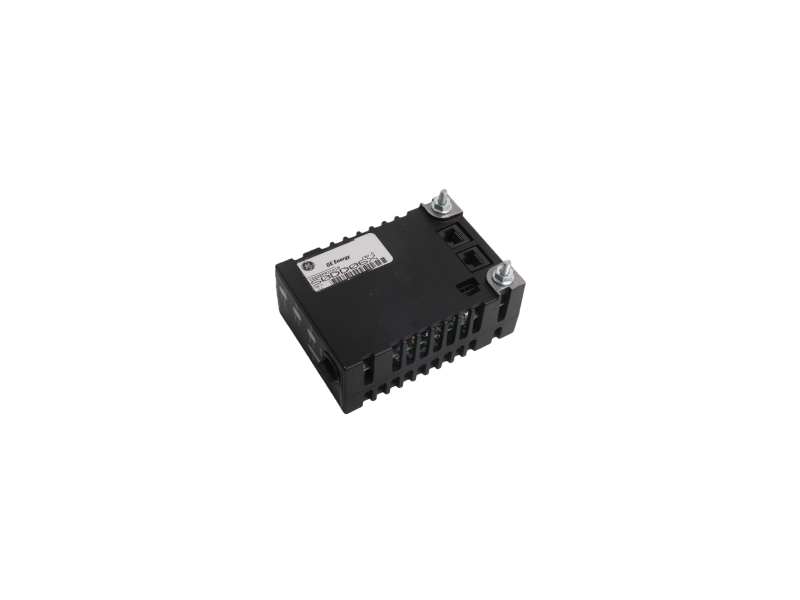

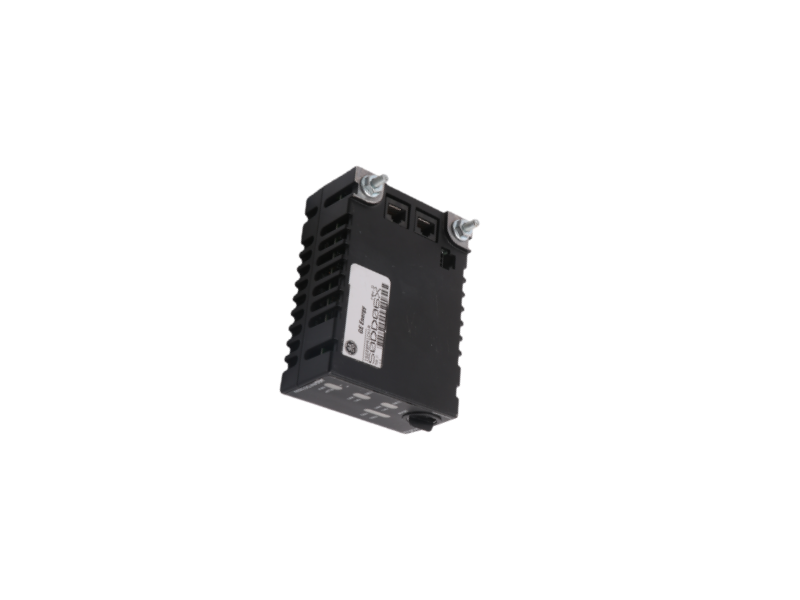

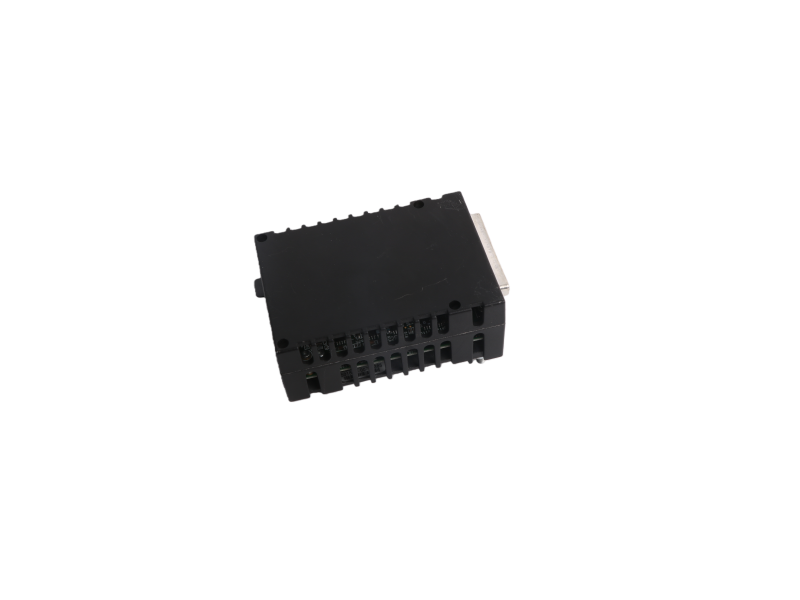

IS220PAICH1A is the “economy” analog input slice in the Mark-VIe ecosystem, used to acquire slow-changing signals such as temperature, pressure and flow for gas/steam turbines, compressors and small energy blocks.
² Channels: 16 differential analog inputs (current or voltage, jumper-free)
² A/D resolution: 16-bit Σ-Δ
² Input ranges: ±10 V, 0-20 mA, 4-20 mA, TC, RTD (Pt100)
² Scan rate: 10 ms for all channels
² Isolation: field-to-logic 1 500 V rms (overall)
² Accuracy: ±0.1 % of span @ 25 °C
² Protection: ±30 V over-voltage, 40 mA over-current, 1 kV surge
² Front ports: 1×RJ-45 (100 Mbps IONet), 3×LEDs (Run / Fail / Status)
² Power: +5 V @ 0.8 A from back-plane; 4 W typical
ü Gas-turbine exhaust temperature spread monitoring
ü Steam-turbine bearing RTD temperature acquisition
ü 4-20 mA tank level loops in chemical plants
ü Pressure feedback for small wind-turbine pitch systems
Ø Fast dispatch: in-stock units ship within 3 business days after payment
Ø World-wide couriers: DHL, UPS, FedEx, TNT, EMS – or your own forwarder
Ø Secure packaging: anti-static bag + foam + double-wall carton; special crate on request
Ø Same-day hand-over: orders cleared before 6 pm local time leave our warehouse the same day
Ø Tracking: sent immediately once goods are picked up
Ø Delivery time: typically 7-15 business days to any continent
Ø After delivery: please confirm receipt by e-mail so we can activate the warranty counter
