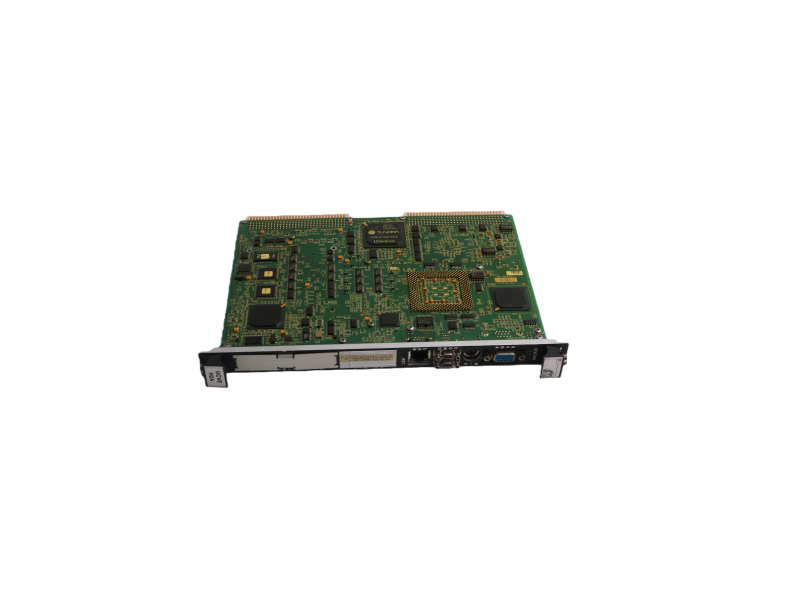

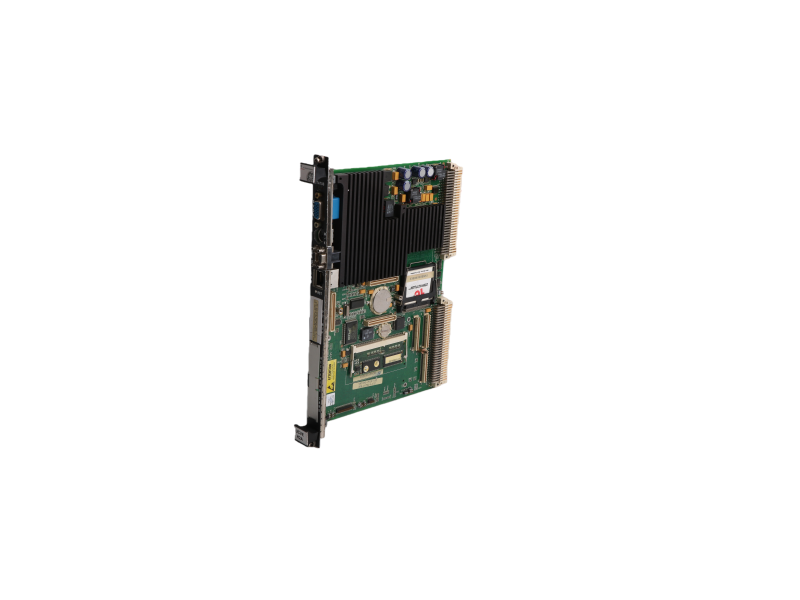

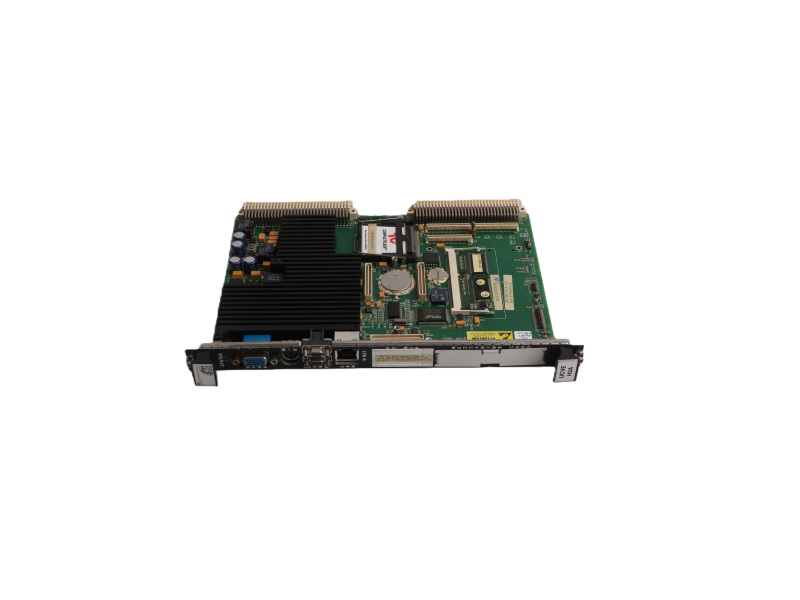

Description:VME64 master CPU board with 300 MHz processor, supporting multiple protocols for industrial automation and turbine control.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS215UCVEH2AE VMIVME-7614-132 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
IS215UCVEH2AE: GE internal part number
VMIVME-7614-132: original commercial part number (VMIC, later GE)
Both labels refer to the identical 6U VME64 CPU board—commonly called the “UCVE main processor”.
1.Hardware Role
Master CPU of Mark VI or Mark VIe rack; executes all turbine control, protection logic, data logging and communication.
Occupies slot-1 of the VME back-plane and automatically becomes system controller.
2.Key Specifications
|
Item |
Specification |
|
Processor |
Intel Celeron 300 MHz, Socket-370 |
|
Chip-set |
Intel 440BX |
|
Memory |
32 MB on-board SDRAM (not expandable) |
|
Mass storage |
128 MB CompactFlash, IDE interface, hot-swappable |
|
L2 cache |
128 kB |
|
Real-time clock |
On-board lithium cell, 10-year hold-up |
|
Ethernet |
2 × 10/100 Base-T RJ-45, front access |
|
Serial ports |
2 × RS-232/485 (16550-compatible), front access |
|
Parallel port |
1 × ECP/EPP on header |
|
VME interface |
VME64 32-bit, 40 MB/s, A16/A24/A32, D16/D32, RMW supported |
|
Timers |
3 × 16-bit programmable |
|
Watch-dog |
Software-enabled; can assert VME SYSFAIL or local reset |
|
Power |
+5 V only, 3.2 A typical, supplied by VME back-plane |
|
Operating temp |
30…+65 °C (tested to 40 °C start-up) |
|
Dimensions |
160 × 233 mm (6U single-slot) |
|
MTBF |
> 250 kh @ 55 °C (MIL-HDBK-217F, ground fixed) |
3.Software Environment
Ships with QNX 4.25 RTOS (GE-custom image); includes “bootmon” for remote Ethernet re-flash.
Fully supported by Control ST V 5.x/6.x for on-line download, break-point debugging and variable watch.
User algorithms: compile C code → *.so → place in /opt/ge/apps; main task auto-loads at start-up.
4.Typical Port Usage
ü LAN1: plant DCS link (EGD protocol, 2 kHz update)
ü LAN2: engineering laptop or remote diagnostics (RDMIVision)
ü COM1: GPS / IRIG-B time synchronisation
ü COM2: Modbus-RTU to local instruments (temperature, pressure)
5.Cross-Reference IS215UCVEH2AE ↔ VMIVME-7614-132
VMIVME-7614-132 = commercial ordering code, common in third-party VME chassis.
IS215UCVEH2AE = GE spare-part number used in Mark VI documentation.
Same PCB # 350-017614-132 D; plug-and-play replacement, no jumpers or firmware change needed.
