Description:VME controller board featuring 300 MHz Celeron CPU and TCP/IP/Modbus support, used in gas/steam turbine control.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS215UCVEH2AE |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

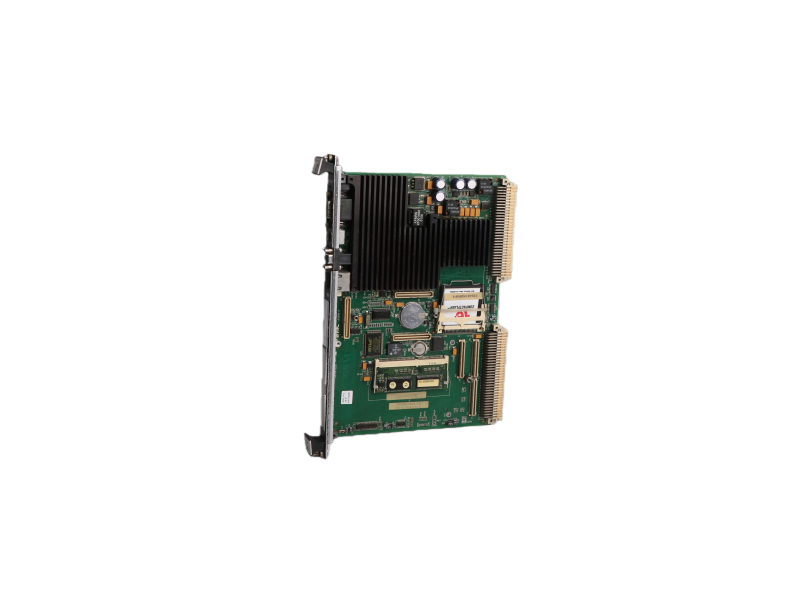

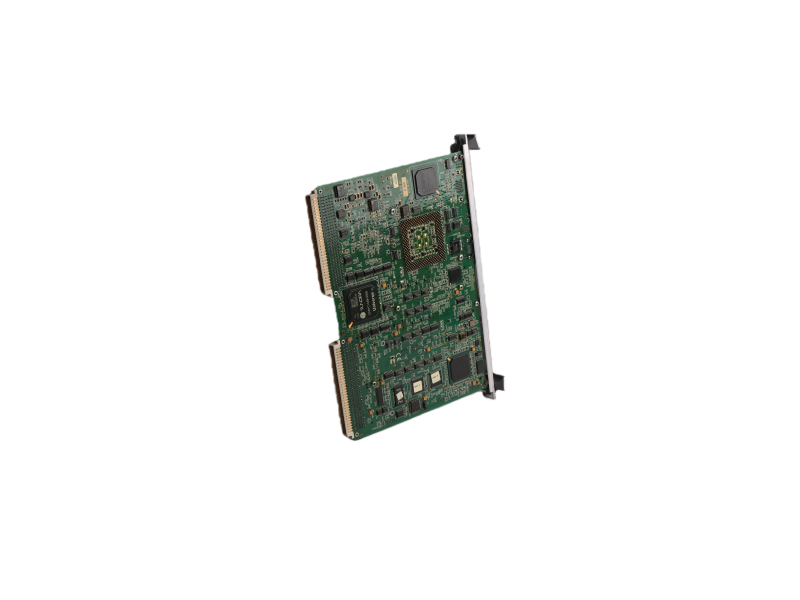

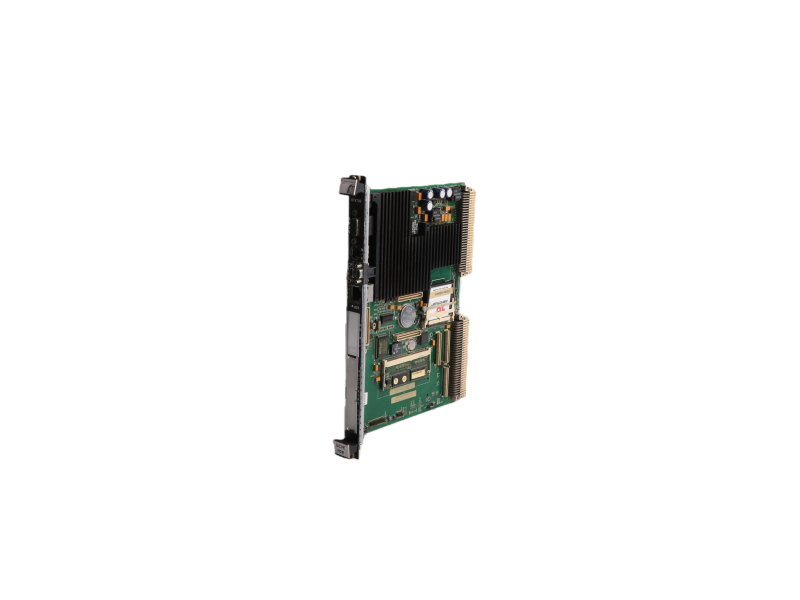

IS215UCVEH2AE is the VME64 master CPU board (GE internal part number) used in Mark VI/VIe turbine/generator control cabinets.
Hardware is identical to the commercial part VMIVME-7614-132 and is commonly called the “UCVE controller”.
Task scope: executes gas/steam turbine closed-loop control, protection logic, data logging, communication and redundancy switching.
1.Core Hardware Specifications
² CPU: Intel Celeron 300 MHz, Socket-370
² Chipset: Intel 440BX
² System Memory: 32 MB on-board SDRAM (fixed, not expandable)
² Mass Storage: 128 MB CompactFlash via IDE, hot-swappable
² L2 Cache: 128 kB
² Ethernet Ports: 2 × 10/100 Base-T RJ-45, front access
² Serial Ports: 2 × RS-232/485 (16550-compatible), front access
² Parallel Port: 1 × ECP/EPP header
² VME Bus: VME64 32-bit, 40 MB/s, A16/A24/A32, D16/D32, RMW supported
² Timers/Counters: 3 × 16-bit programmable
² Watch-dog Timer: Software-enable; can assert local reset or VME SYSFAIL
² Power Requirement: +5 V only, 3.2 A typical, supplied by back-plane
² Board Dimensions: 160 mm × 233 mm (6U single-slot)
2.Software & Firmware
Ships with QNX 4.25 RTOS (GE-custom image)
Remote PXE boot and re-image supported via bootmon
User algorithm interface: C source → compile to *.so → place in /opt/ge/apps → auto-loaded by main task
Fully supports on-line download, breakpoint debug and variable watch with Control ST V 5.x/6.x
