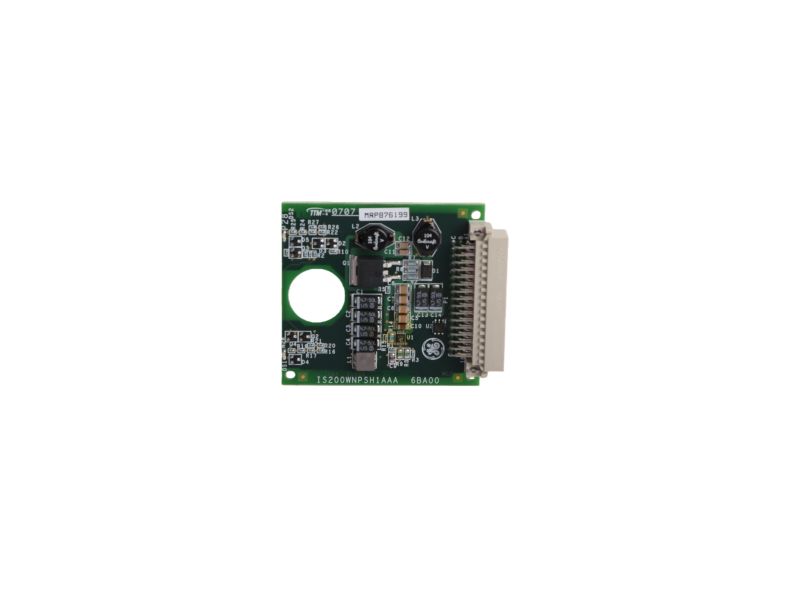

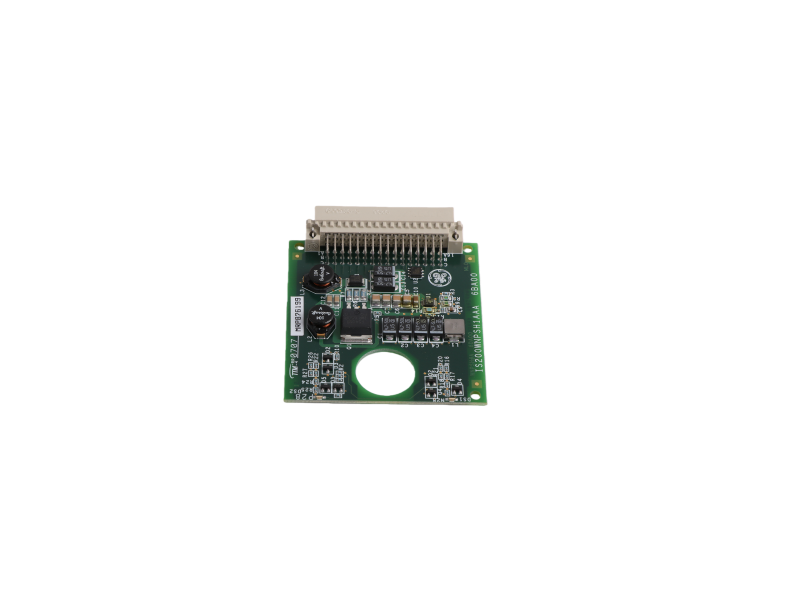

Description:A general-purpose I/O terminal board supporting multi-channel signal input/output for the Mark VIe control system.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200WNPSH1A IS200WNPSH1AAA |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Technical Q&A
Q1: What is the difference between IS200WNPSH1A and IS200WNPSH1AAA?
A1: The “AAA” variant adds conformal coating and extended-temperature screening to the base board IS200WNPSH1A, widening storage temperature to –40 … +85 °C for marine or high-humidity environments.
Q2: What is the main function of this board in a Mark VI system?
A2: It supplies isolated +28 V and –28 V wetting power to contact-input cards and feeds the actual voltage value back to the controller, ensuring reliable dry-contact detection.
Q3: What is the output capability?
A3: 200 mA max per 28 V rail, ripple < 50 mV pp—enough for about 40 typical dry-contact loops.
Q4: What are the input-bus requirements?
A4: 28 VDC nominal, 20 – 32 V transient tolerated; on-board TVS and diode-OR allow dual-power redundancy.
Q5: Is hot-swap supported?
A5: No. Power must be off for 5 min before insertion/withdrawal to prevent back-plane arcing.
Q6: How can I confirm the board is healthy?
A6: Front dual-color LEDs: “+OK” green = +28 V good, “–OK” green = –28 V good; either LED off sends a fault bit to the controller.
Q7: Dimensions & weight?
A7: 123 × 129 × 30 mm, approx. 0.45 kg, occupies one standard Mark VI daughter-card slot.
Q8: Which countries or regions do you ship to?
A8: We ship worldwide.
Q9: How do you ship the goods?
A9: By air courier—DHL, TNT, UPS or FedEx.
Q10: What is your delivery time?
A10: In-stock items: 2–3 business days.
Out-of-stock items: to be negotiated.
