Description:Servo output module configured for triple-redundant architectures, offering hot-spare switchover in <5 ms without position disturbance.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200VSVOH1BDC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

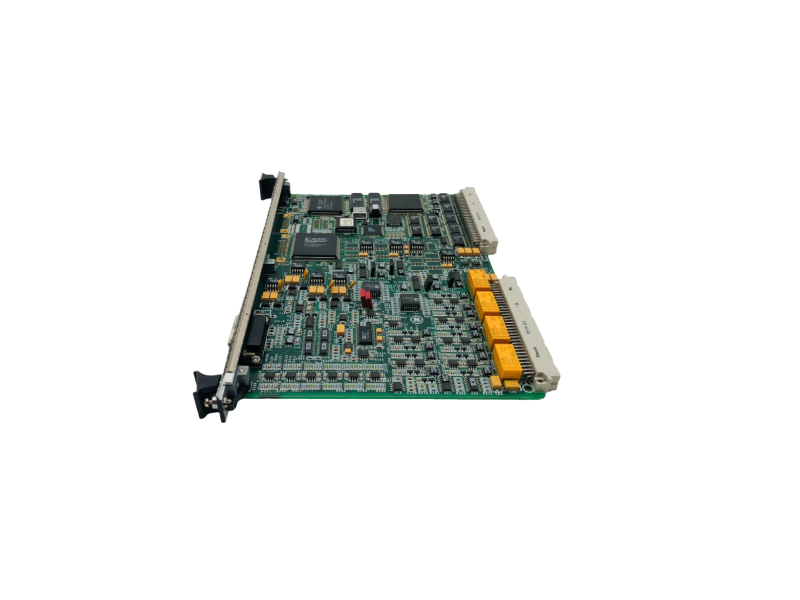

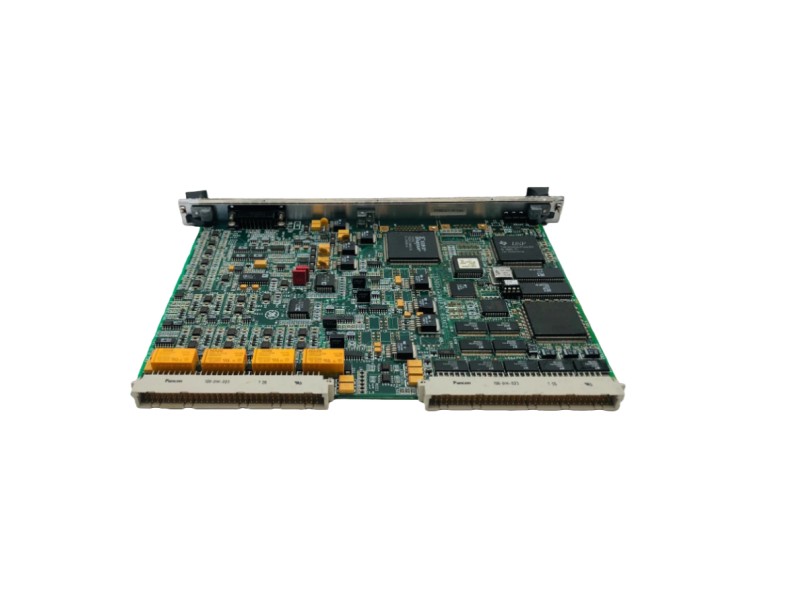

IS200VSVOH1BDC is the core servo interface board of the GE Mark VI/VIe turbine control system, providing:
· 4 independent electro-hydraulic servo valve drives
· 8 LVDT position-feedback demodulators
· 4 speed / pulse-rate inputs
· Closed-loop position & speed control in simplex or TMR redundant configurations
|
Category |
Specification |
Remarks |
|
Servo channels |
4 × 0–20 mA constant-current |
Load 0–850 Ω, resolution 0.1 % |
|
LVDT inputs |
8 × 0–5 Vrms differential |
3-/4-wire, 2.5 kHz excitation, accuracy 0.05 % |
|
Pulse-rate inputs |
4 × 2 k–14 kHz |
VR or Hall sensor, 1–30 Vp-p |
|
Control cycle |
5 ms (typ.) |
Synchronized with Mark VI frame |
|
Position-loop bandwidth |
≥ 25 Hz |
Phase margin > 45° |
|
Isolation |
channel-channel 500 Vrms |
channel-earth 1 500 Vrms |
|
Item |
Specification |
|
Form factor |
6U VME single-slot (160 × 100 mm) |
|
Backplane power |
+5 V @ 2 A, ±12 V @ 0.2 A |
|
Field power |
24 VDC (18–30 V), 550 mA typical |
|
Power dissipation |
13 W (fully loaded) |
|
Operating temperature |
–40 … +70 °C (with forced air) |
|
Humidity |
5–95 % RH non-condensing |
|
Protection |
Conformal coated (IPC-610 class 3) |
|
Certifications |
CE, UL, ATEX Zone 2 (optional) |
|
Connector |
Function |
|
J5 |
Combined servo-valve / LVDT / speed cable (MIL-DTL-38999) |
|
LEDs |
RUN (green) = healthy; Status (amber) = channel ready; Fail (red) = hard fault |
