Description:12-channel RTD input module supporting 3- and 4-wire Pt100, Ni120, Cu10 sensors with 0.1 °C resolution and automatic lead-wire compensation.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200VRTDH1DAC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

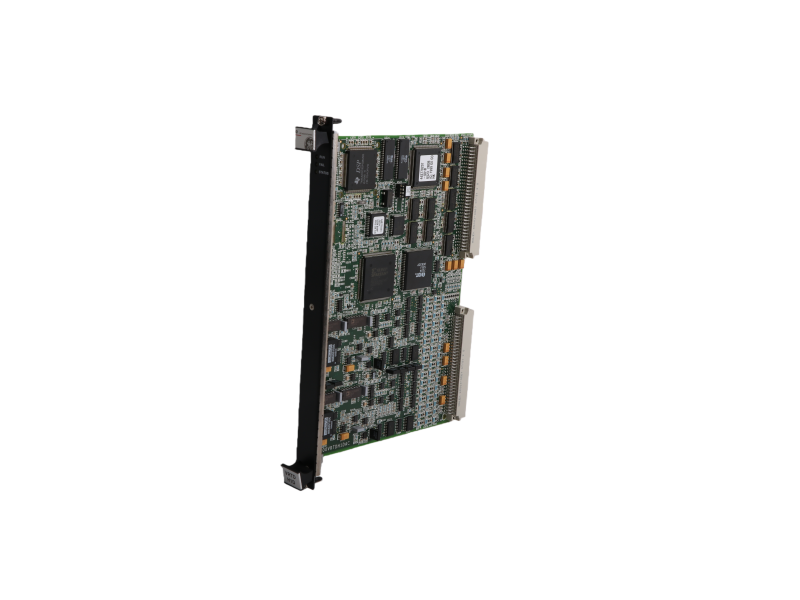

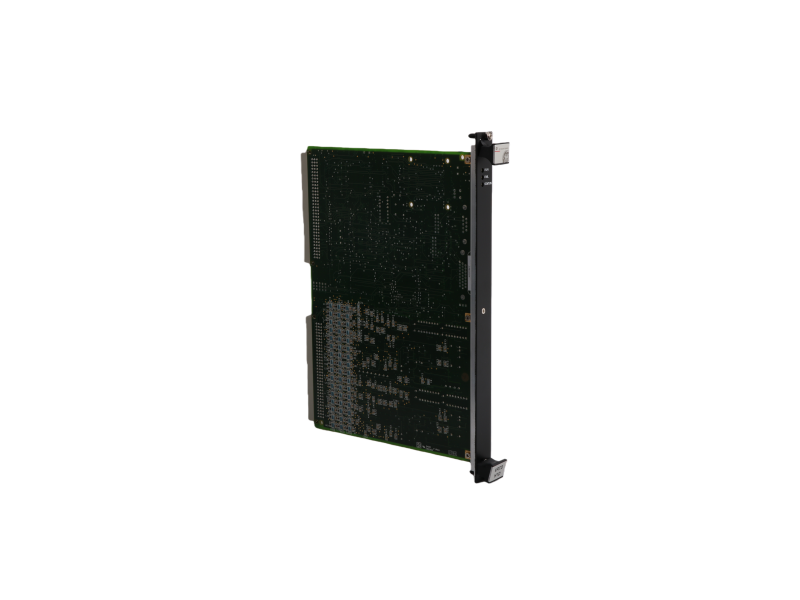

· Part Number: IS200VRTDH1DAC
· Series: GE Mark VI / Speedtronic
· Function: 16-ch 3-wire RTD inputs, resistance-to-temperature conversion
· Form Factor: 6U VME single-slot, 3 LEDs on face-plate
· Revision: DAC (latest C-grade hardware)
|
Item |
Value |
|
Input Types |
Pt25/100/1000 Ω, Cu10/50/100 Ω, Ni100/120 Ω, Ni/Fe 604 Ω |
|
Resolution |
16-bit temperature; 15-bit resistance |
|
Accuracy |
±0.15 % @ 25 °C |
|
Isolation |
250 V AC input-to-logic; 1500 V AC channel-to-ground |
|
Scan Rate |
100 Hz (10 ms) |
|
Back-plane Current |
5 V 125 mA max; 3.3 V 125 mA max |
|
Operating Temp |
0 … +70 °C |
|
Redundancy |
Simplex / Duplex / TMR capable |
|
Cable Interface |
Indirect via TCQA or TTUR terminal board |
|
MTBF |
> 200 000 h (MIL-HDBK-217F) |
|
Compliance |
CE, UL, RoHS, GEH-6721 |
· Acquires up to 16 3-wire RTD signals with high-accuracy linearization
· Delivers temperature data to the Mark VI controller via VME for turbine bearing & steam-temp protection
· On-board ID-Chip enables hot-swap and auto-calibration; 3-color LEDs show Run / Fail / Status
· Works with TCQA or TTUR terminal blocks to complete the RTD input chain
|
Part Number |
Description |
Relation |
|
IS200VRTDH1DAC |
This board – 16-ch RTD input |
Base unit |
|
IS200TCAIH1C |
RTD terminal block, 16-ch |
Cable mate |
|
IS200TTURH1B |
RTD DIN-rail terminal strip |
Alternate interface |
|
IS215VCMIH2CC |
VME communication interface |
Mandatory controller |
|
IS200VIBCH1C |
Vibration input board |
Same rack, different sensor type |
|
IS200VAICH1DBC |
20-AI + 4-AO analog board |
Thermal + process I/O combo |
All items above stocked in Xiamen and can be shipped together.
Send your requirement list – formal quotation and lead time returned within 30 minutes.
