Description:Latest 16-channel analog-input revision with built-in surge protection and automatic channel calibration verification.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200VAICH1DBC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

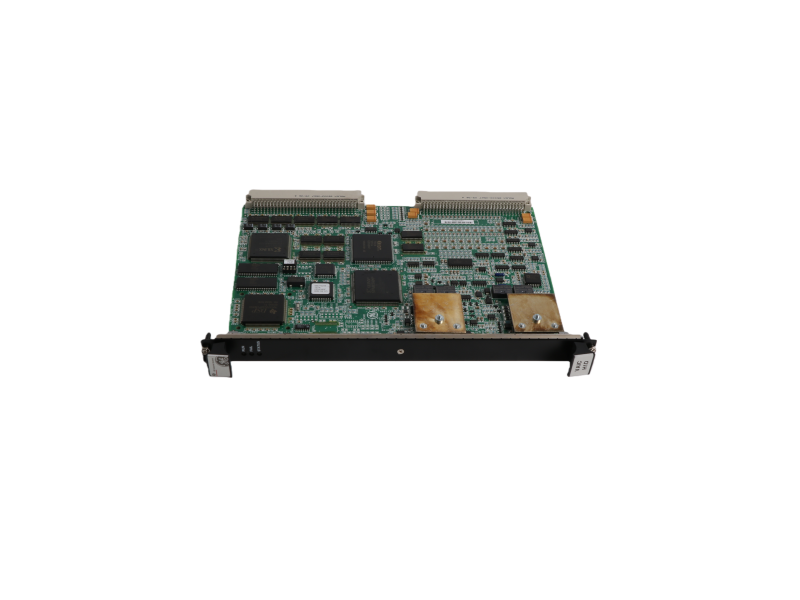

· Model: IS200VAICH1DBC
· Series: GE Mark VI / VIe
· Function: 20 × 4-20 mA analog inputs + 4 × 4-20 mA / 0-200 mA analog outputs
· Bus: VME dual-slot, C-grade revision
· Design: Enhanced noise immunity, direct drop-in for DAA/DAB boards
|
Item |
Value |
|
Inputs |
20 × 4-20 mA (differential, jumper-selectable ±5 V / ±10 V) |
|
Outputs |
4 × 4-20 mA / 0-200 mA, channel-to-earth isolated |
|
Resolution |
16-bit ADC / 14-bit DAC |
|
Scan time |
≤ 10 ms (100 Hz) |
|
Isolation |
500 V channel-to-earth |
|
Power draw |
< 31 mW from VME (+5 V & +15 V) |
|
Diagnostics |
Wire-break, over-range, zero-drift, ID-chip mismatch |
|
MTBF |
> 200 000 h (MIL-HDBK-217F) |
|
Operating temp |
0 … +70 °C (air-cooled rack) |
|
Compliance |
CE, UL, RoHS, GEH-6721 |
3. Cross-Reference / Companion Models
|
# |
Part Number |
Brief Description |
Relation to IS200VAICH1DBC |
|
1 |
IS200VAICH1DAA |
20 AI + 4 AO, earlier DAA rev |
Pin/soft compatible, field interchangeable |
|
2 |
IS200VAICH1DAB |
Mid-rev DAB, same feature set |
Direct predecessor, no config change needed |
|
3 |
IS200VAICH1DBC |
Current C-grade rev, enhanced EMI |
This product – latest drop-in |
|
4 |
IS200TBAIH1CDD |
20-ch analog terminal board |
Cable mate, provides fuses & terminals |
|
5 |
IS215VCMIH2CC |
VME communication interface |
Mandatory controller, handles TMR vote |
|
6 |
IS220PAICH1A |
Mark VIe I/O-Pack, IONet |
Upgrade path, functionally equivalent |
|
7 |
IS200VRTDH1DAB |
16-ch RTD input VME card |
Temperature companion, same rack |
· 20-year focus on high-end automation modules, physical stock in Xiamen
· 100 % original, fully tested with report before shipment
· 12-month global warranty, 48 h replacement / repair turnaround
· Trade terms EXW, DDP on request
· 30-minute quotation, 24 h on-line technical support
PLC Autocontroller – Xiamen, China
E-mail: ab@mooreplc.com
Tel / WhatsApp: +86-18106909650
WeChat: dcsfcs
Contact: Ms. May
Formal quotation and lead time returned within 30 minutes.
