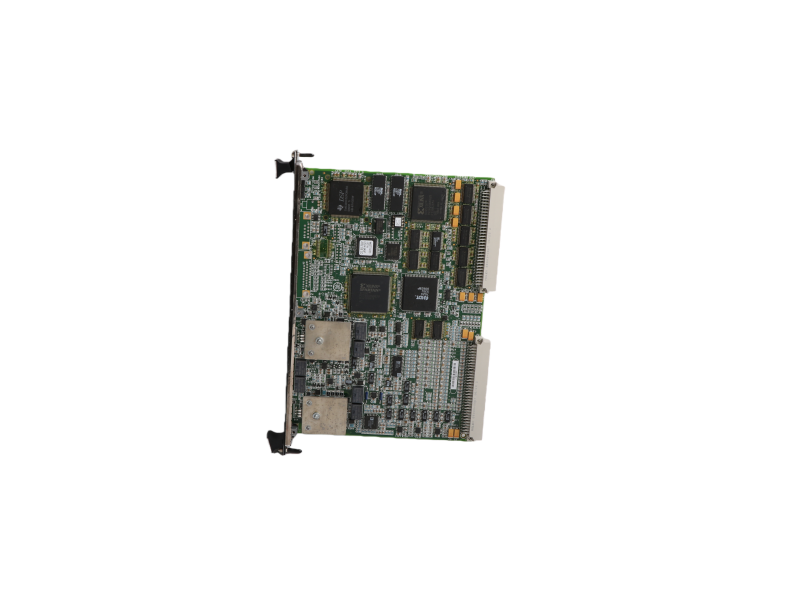

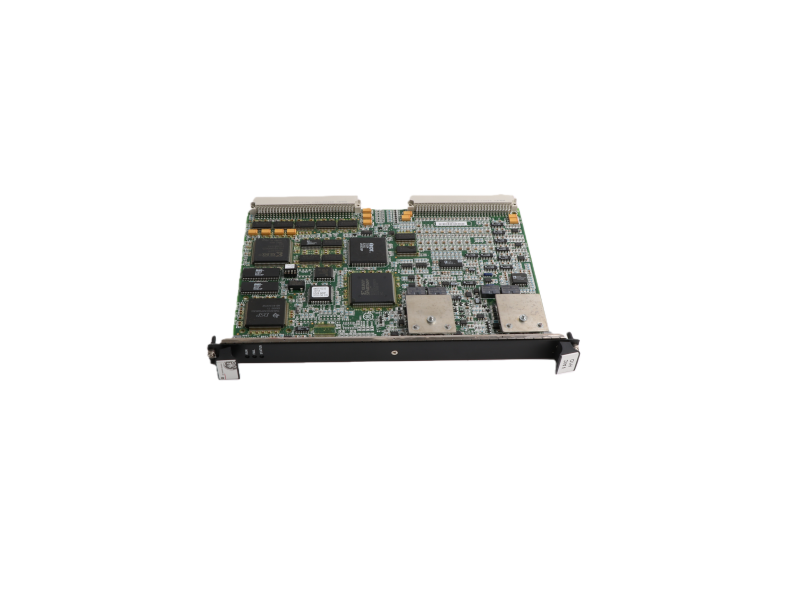

Description:16-channel analog-input revision adding HART pass-through and 3-way isolation between field, power, and logic sides.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200VAICH1DAB |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
· Model: IS200VAICH1DAB
· Series: GE Mark VI / VIe
· Function: 20 × 4-20 mA analog inputs + 4 × 4-20 mA / 0-200 mA analog outputs
· Bus: VME dual-slot
· Revision: DAB (Hardware Rev 1.1+, drop-in upgrade from DAA)
|
Item |
Value |
|
Inputs |
20 × 4-20 mA (differential, jumper-selectable ±5 V / ±10 V) |
|
Outputs |
4 × 4-20 mA / 0-200 mA, isolated |
|
Resolution |
16-bit ADC / 14-bit DAC |
|
Scan time |
10 ms (100 Hz) |
|
Isolation |
500 V channel-to-earth |
|
Power |
< 31 mW from VME (+5 V & +15 V) |
|
Diagnostics |
Wire-break, over-range, auto-zero error |
|
Operating temp |
0 … +70 °C |
|
MTBF |
> 200 000 h (MIL-HDBK-217F) |
|
Compliance |
CE, UL, RoHS, GEH-6721 |
|
# |
Part Number |
Brief Description |
Relation to IS200VAICH1DAB |
|
1 |
IS200VAICH1DAA |
20 AI + 4 AO, 4-20 mA, DAA revision |
Pin & firmware compatible, field interchangeable |
|
2 |
IS200VAICH1DBC |
Next hardware rev, enhanced noise immunity |
Direct replacement for DAB, no config change |
|
3 |
IS200VAOCH1B |
8-ch analog output slave board |
Output expansion partner, same rack |
|
4 |
IS200TBAIH1CDD |
Analog terminal board, 20-ch + fuses |
Default cable mate for VAICH1DAB |
|
5 |
IS215VCMIH2CC |
VME communication interface |
Mandatory controller, sets TMR/Simplex topology |
|
6 |
IS220PAICH1A |
Mark VIe I/O-Pack, IONet interface |
Upgrade path, functionally equivalent |
|
7 |
IS200VRTDH1DAB |
16-ch RTD input board |
Temperature complement, same rack slot |
All items above kept in stock in Xiamen and can be shipped together with IS200VAICH1DAB.
· 20-year focus on high-end automation modules, physical stock in Xiamen
· 100 % original, fully tested with report before shipment
· 12-month global warranty, 48 h replacement / repair turnaround
· Trade terms EXW, DDP on request
· 30-minute quotation, 24 h on-line technical support
PLC Autocontroller – Xiamen, China
E-mail: ab@mooreplc.com
Tel / WhatsApp: +86-18106909650
WeChat: dcsfcs
Attn: Ms. May
Formal quotation and lead time returned within 30 minutes.
