Description:16-channel analog-input revision offering faster 2 ms scan rate and expanded 0-1 mA input range for legacy transmitters.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |

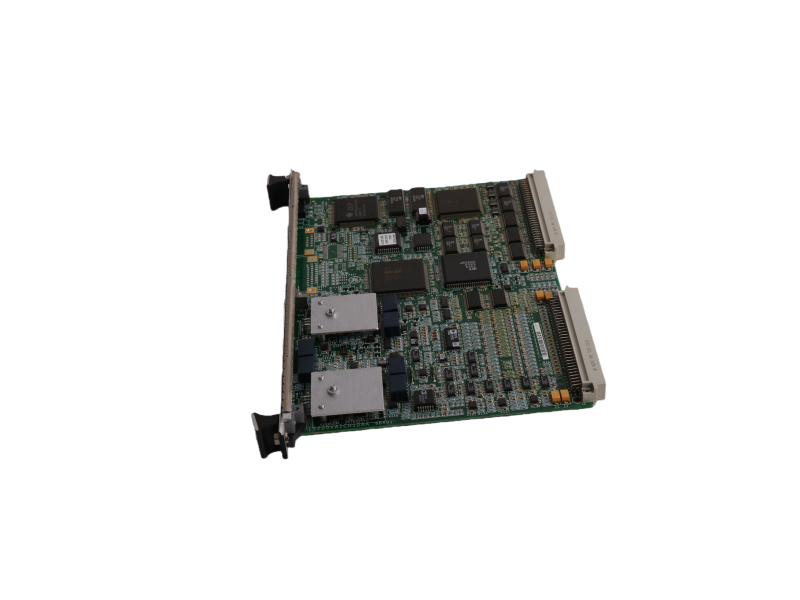

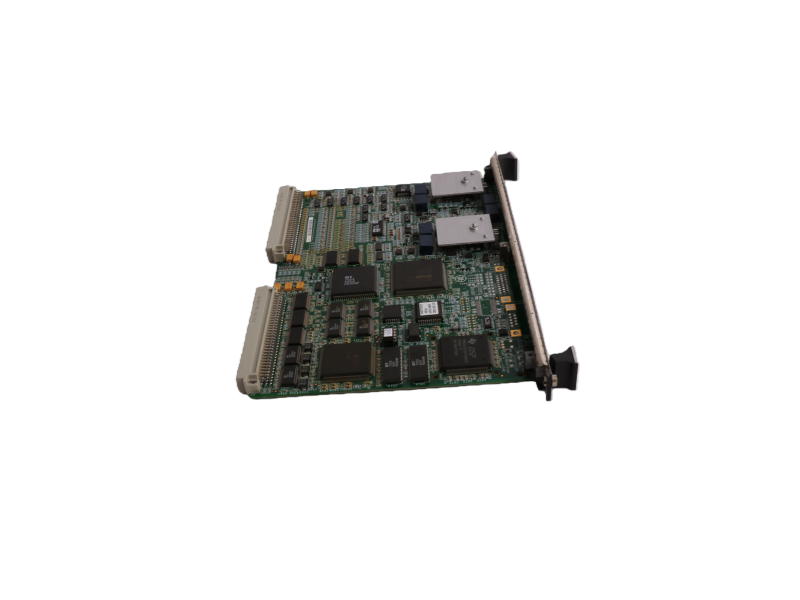

| Item number | IS200VAICH1DAA |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
1. Quick Facts
GE Mark VI Simplex / TMR systems | 20 AI + 4 AO channels | 4-20 mA I/O | VME dual-slot | Made in USA | Stock in Xiamen
2. Key Specifications
|
Parameter |
Value |
|
Part Number |
IS200VAICH1DAA |
|
System |
GE Mark VI (Simplex or TMR) |
|
Inputs |
20 × 4-20 mA, differential, 200 Hz scan |
|
Outputs |
4 × 4-20 mA / 0-200 mA, isolated |
|
Accuracy |
±0.1 % full scale @ 25 °C |
|
Resolution |
16-bit ADC / 14-bit DAC |
|
Isolation |
500 V channel-to-earth |
|
Power |
< 31 mW from VME (+5 V, +15 V) |
|
Connector |
P1 & P2 VME, 96-pin; JAI1-3 to TBAI/STAI |
|
MTBF |
> 200 000 h (MIL-HDBK-217F) |
|
Operating temp |
0 … +70 °C (air-cooled rack) |
|
Compliance |
CE, UL, RoHS, GEH-6721 |
3. Typical Application
IS200VAICH1DAA collects 4-20 mA signals from pressure, temperature or vibration transmitters and drives analog final-elements (I/P converters, valve positioners) in gas & steam turbine skids. The board auto-calibrates on power-up and supports hot-swap under Mark VI firmware ≥ G3.
4. Why PLC Autocontroller
20-year focus on high-end automation modules
100 % new & original factory-sealed units
Full-function test before shipment
One-year global warranty; repair/exchange service within 48 h
Same-day quotation, 24 h on-line technical support
Export license & drop-ship to any incoterm (EXW, DDP)
5. Contact
PLC Autocontroller – Xiamen, China
E-mail: ab@mooreplc.com
Tel / WhatsApp: +86-18106909650
WeChat: dcsfcs
Attn: Ms. May
Send your list —quotation back within 30 minutes.
