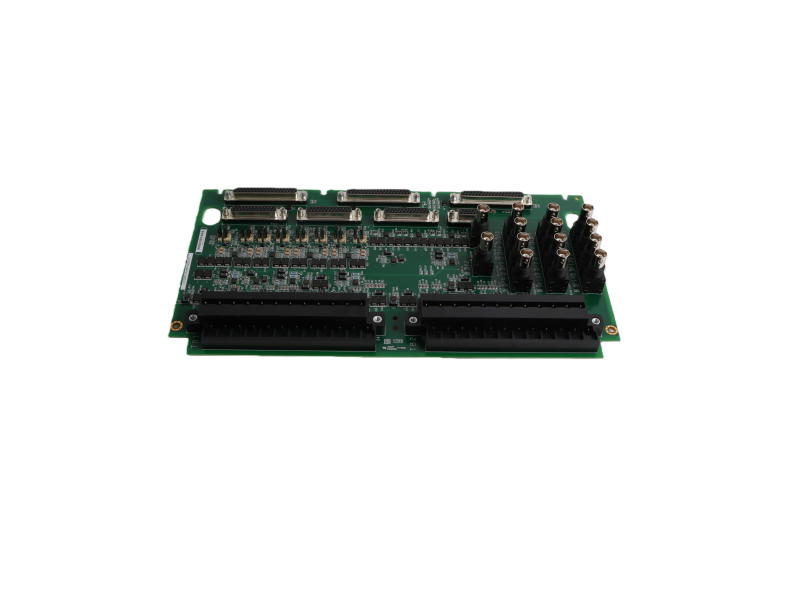

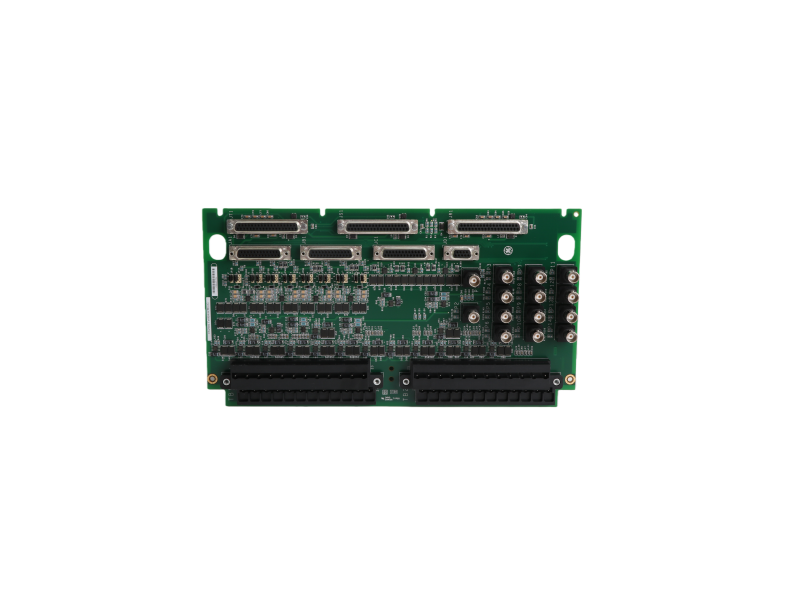

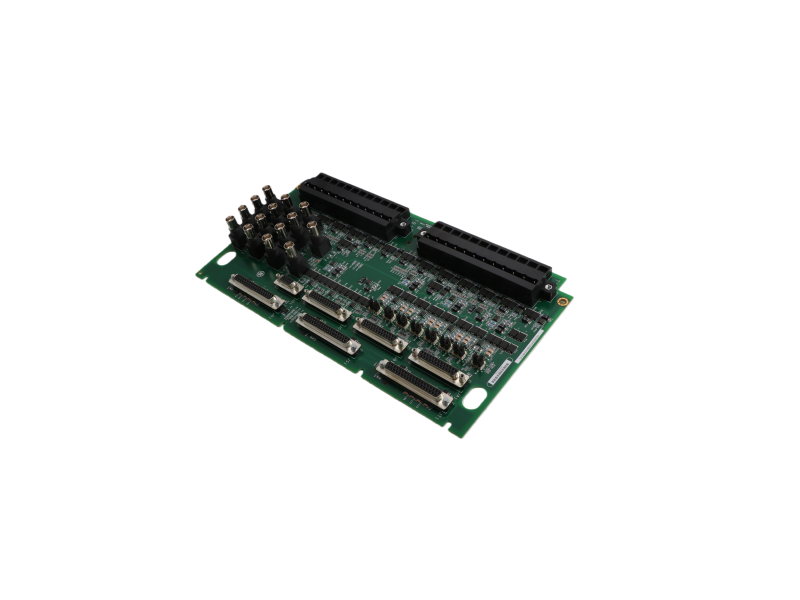

Description:Enhanced vibration-input module with improved 24-bit ADC resolution and automatic sensor-bias voltage checking.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200TVIBH2BCC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
|
Key Item |
Description |
|
Model |
IS200TVIBH2BCC |
|
Series |
GE Speedtronic Mark VI / Mark VIe |
|
Board Role |
Vibration Input Terminal Board |
|
Core Function |
Collects & conditions analog signals from field vibration probes (acceleration, velocity, displacement, phase) and routes them to the VVIB vibration processor; provides 24 V probe power and key-phasor inputs. |
|
Terminal / Connector |
Signal Type |
Channels |
Electrical Spec |
Remarks |
|
TB1 / TB2 |
Analog vibration inputs |
14 diff. |
±10 V, 0.1 % accuracy |
Screw-type barrier blocks, numbered |
|
TB3 |
Probe supply output |
4 groups |
-24 V or +24 V selectable |
Jumper-selectable, 50 mA per group |
|
TB4 |
Key-phasor / speed pulse |
2 |
1…24 Vpk, 0…20 kHz |
Differential, TTL compatible |
|
J1…J14 |
Board-edge headers |
— |
— |
Flat-cable to VVIB (Mark VI) |
|
JP1…JP16 |
User jumpers |
16 pairs |
— |
Range, filter, supply routing |
|
Category |
Value |
|
Input Range |
±10 V full scale |
|
Resolution |
12 bit (determined by VVIB A/D) |
|
Channel Isolation |
500 Vrms channel-to-ground |
|
Frequency Response |
0.5 Hz…20 kHz (-3 dB) |
|
Operating Temperature |
-30 °C…+70 °C |
|
Board Size |
188 mm × 86 mm × 21 mm |
|
Conformal Coating |
Standard acrylic, optional enhanced |
|
Calibration |
None required (probe scaling in VVIB) |
· Match probe sensitivity in VVIB config file (e.g., 100 mV/g)
· Set JP1-JP4 for required probe supply polarity before power-up
· Use shielded twisted pair for TB1/TB2; shield tied at panel ground
· TB4 key-phasor polarity reversible via JP15-JP16
· No potentiometers on board; all scaling done in VVIB software
