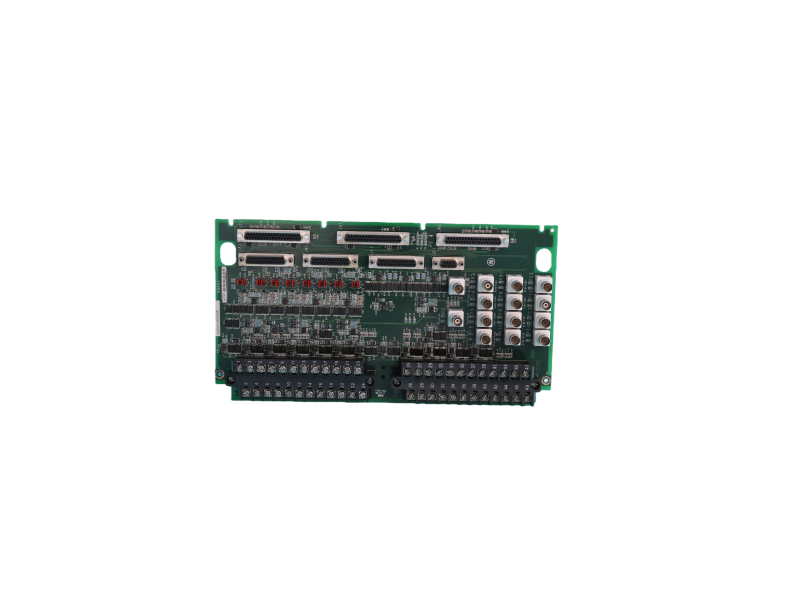

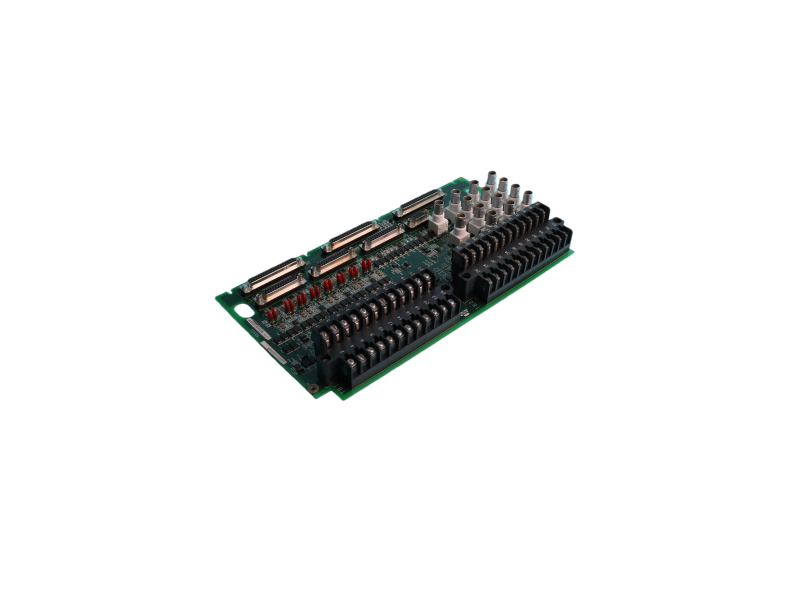

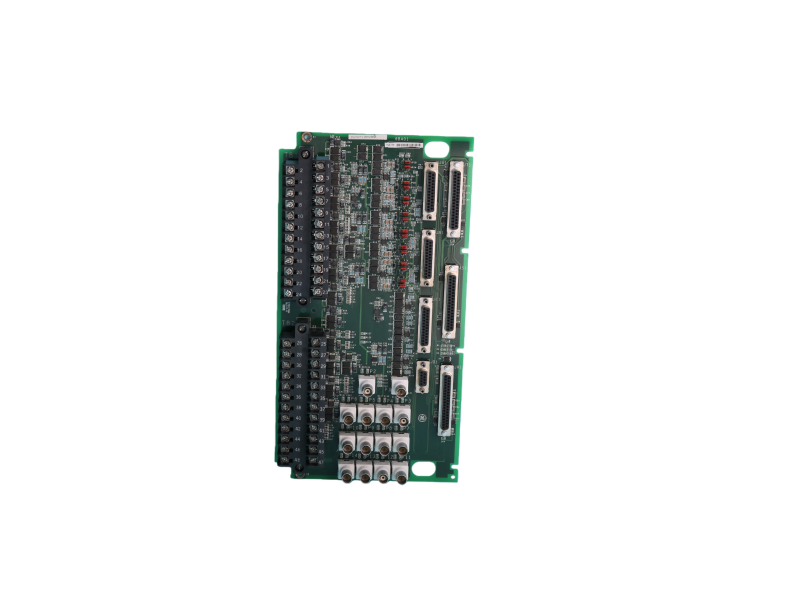

Description:Vibration-input module accepting 100 mV/g accelerometer or 200 mV/mil proximity signals for real-time shaft and bearing monitoring.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200TVIBH2BBB |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
|
Key Item |
Description |
|
Model |
IS200TVIBH2BBB |
|
Series |
GE Speedtronic Mark VI / Mark VIe |
|
Board Role |
Vibration Termination Board |
|
Primary Mission |
Centralized wiring for field vibration probes (acceleration, velocity, displacement, phase, seismic) → routed to VVIB board for A/D and vector processing; delivers vibration protection, alarming and diagnostics. |
|
Terminal / Connector |
Signal Type |
Channels |
Electrical Spec |
Remarks |
|
TB1 / TB2 |
Vibration analog inputs |
14 diff. |
0…10 Vpk, ±50 V common-mode |
Screw-pluggable, numbered per point |
|
TB3 |
Power output |
4 groups |
-24 V or +24 V selectable |
Powers Bently Nevada style probes |
|
TB4 |
Key-phasor / speed pulse |
2 |
1…24 Vpk, 0…20 kHz |
Sync sampling with vibration |
|
J1…J14 |
Board-edge headers |
— |
— |
Flat-cable to VVIB |
|
JP1…JP16 |
Jumpers |
16 pairs |
— |
Instant range / filter / supply selection |
|
Category |
Parameter |
|
Input Range |
0…10 V (extendable to ±10 V) |
|
Resolution |
12 bit (VVIB sampling) |
|
Sampling Rate |
100 kHz per channel (VVIB-controlled) |
|
Accuracy |
0.1 % F.S. |
|
Frequency Response |
0.5 Hz…20 kHz (-3 dB) |
|
Channel Isolation |
500 Vrms channel-to-ground |
|
Operating Temp. |
-30 … +65 °C |
|
Board Size |
188 mm × 86 mm × 21 mm |
|
MTBF |
> 100 000 h |
· Probe type: accel → 100 mV/g; displacement → 8 V/mm; velocity → 20 mV/mm/s
· Supply jumpers: JP1-JP4 pos 1-2 = -24 V, 2-3 = +24 V
· Key-phasor: N.C. probes require JP15-JP16 open
· Terminal torque: 0.5 N·m, lock-washer must be re-installed
· Board is calibration-free; run VVIB auto-zero on first power-up
