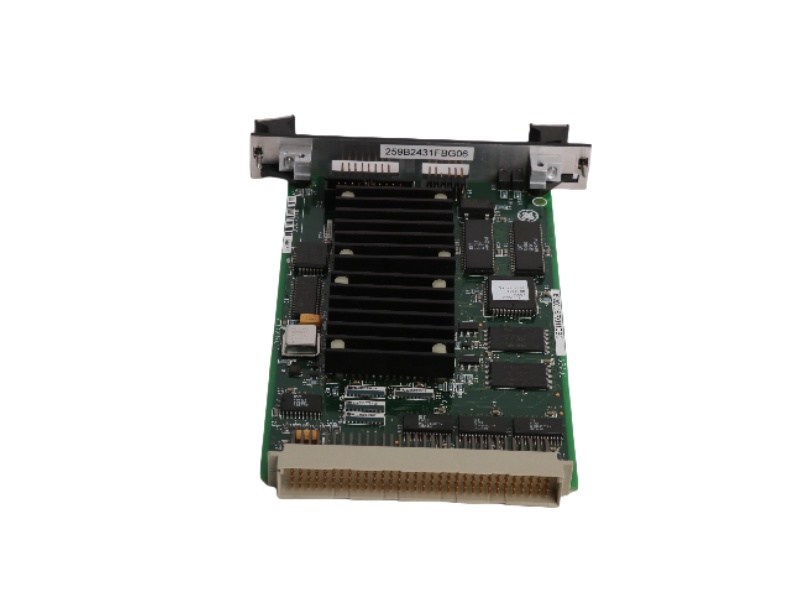

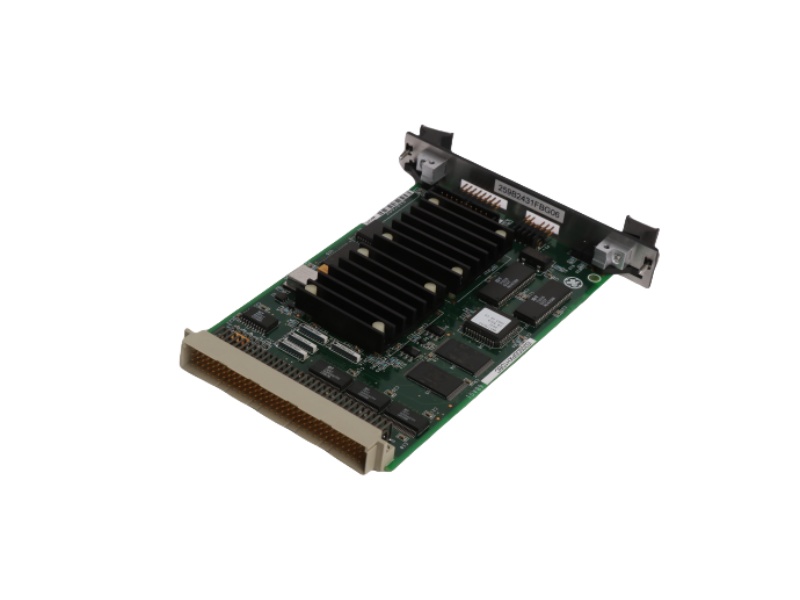

Description:IS200DSPXH1DBC Digital Signal Processor Control Board
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IS200DSPXH1DBC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Turbine-Control Expertise
Data Sheet: GE IS200DSPXH1DBC Digital Signal Processor Board
Purpose & System Fit
IS200DSPXH1DBC is the high-speed DSP control board at the heart of GE Speedtronic Mark VI / Mark VIe systems.
It executes turbine speed control, excitation logic, and protection algorithms for gas, steam, and hydro generators.
Key Specifications
• Processor: 60 MHz TMS320C6713B DSP
• Memory: 64 MB RAM + 4 MB Flash (user)
• I/O on-board:
-16 digital inputs
-16 digital outputs
- 4 analog inputs (±10 V / 4–20 mA)
-2 analog outputs (±10 V)
• Communication: backplane P1, P5 DSP-JTAG, P6 service port, P7 field I/O
• Diagnostics: dual front-panel LEDs (STATUS, FAULT)
• Power: 24 V DC (18–32 V), 10 W max
• Temperature: –40 °C to +85 °C
• Humidity: 5 %–95 % RH non-condensing
• Dimensions: 340 × 216 × 55 mm (13.39 × 8.5 × 2.17 in)
• Weight: 1 kg (2.2 lbs)
Certifications & Standards
• CE, UL, CSA, GOST-R
• Designed for SIL-2/SIL-3 safety loops when paired with Mark VIe safety manager
Typical Applications
• Gas / steam turbine governor control
• Synchronous generator excitation control (EX2100 family)
• Compressor surge protection
Quick FAQ
Q: Can I hot-swap IS200DSPXH1DBC?
A: Yes – Mark VI supports online replacement with automatic re-sync.
Q: Programming tool for IS200DSPXH1DBC?
A: ToolboxST / ControlST v8.1 or later.
Related Mark VI Spares
|
Part Number |
Description |
|
IS200DSPXH1DBC |
DSP board (this unit) |
|
IS200DSPXH1DCA |
Economy DSP variant |
|
IS200DSPXH1DBD |
Legacy version drop-in |
|
IS200EXAMG1A |
Exciter amplifier module |
|
IS200EGPAG1B |
Gate-pulse amplifier |
|
IS200VTURH1B |
Vibration/turbine interface card |
Ordering & Stock
PLC Autocontroller keeps the IS200DSPXH1DBC in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
