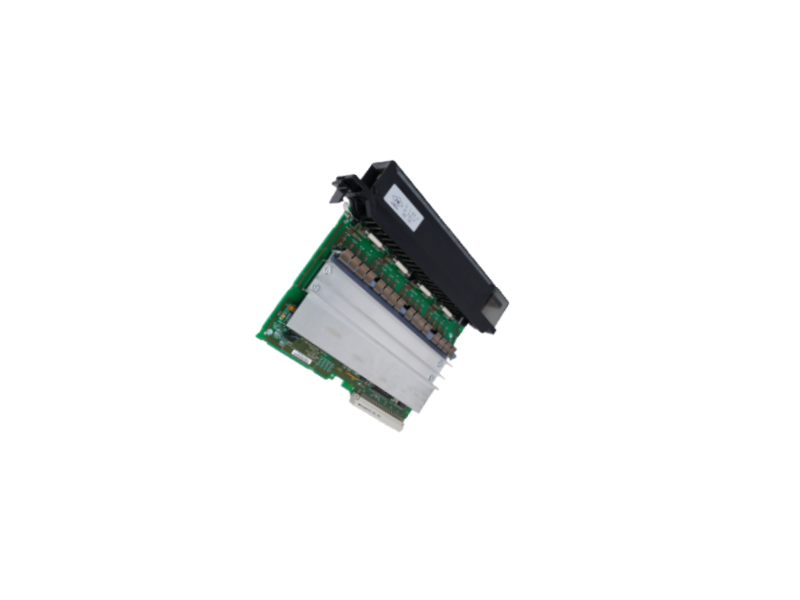

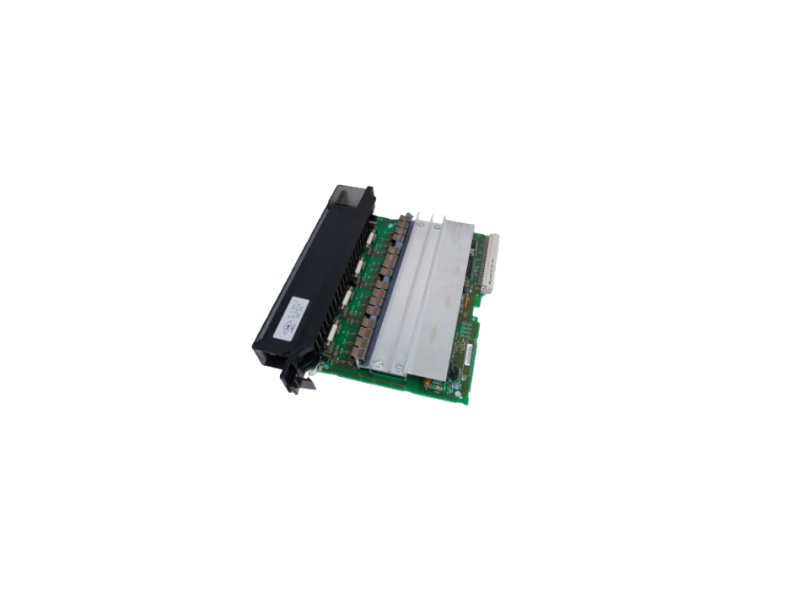

Description:IC697MDL740 — high-performance DC output module for General Electric PLC systems, providing reliable, isolated digital signal control for industrial automation applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | IC697MDL740 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
IC697MDL740 |DC output module
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Product Overview
The General Electric IC697MDL740 is a high-performance DC output module from GE (formerly GE Fanuc / Intelligent Platforms), belonging to the Series 90-70 PLC series. This module provides 16 positive logic DC outputs and is widely used for load driving and signal output in industrial automation control systems. It supports an operating voltage range of 24–48 VDC and features a modular design for easy installation in standard 90-70 PLC racks, providing stable and reliable output control capabilities.
Main Technical Parameters
|
Parameter |
Specification |
|
Product Model: |
IC697MDL740 |
|
Brand/Series: |
General Electric / Series 90-70 |
|
Module Type: |
DC Discrete Output Module |
|
Number of Output Channels: |
16 outputs (4 groups, 4 channels per group) |
|
Output Current: |
2 A/point, 4 A/group |
|
Surge Current Capability: |
20 A (continuous short-time peak, approximately 20 ms) |
|
Logic Type: |
Positive Logic Output |
|
Status Indication: |
LED indicator for each output point |
|
Protection Configuration: |
Independent fuse group protection (10 A per group) |
|
Backplane Connection: |
Standard Series 90-70 PLC rack interface |
Product advantages
Multi-channel output, high-performance drive capability
Provides 16 discrete outputs, each capable of outputting up to 2A of current, adaptable to various industrial field loads such as relays, valves, and solenoid coils.
Wide voltage compatibility and high surge withstand capability
Supports 24 VDC – 48 VDC power supply and can maintain stable operation under short-term surge conditions, enhancing the responsiveness of field equipment.
LED indication and easy integration
Clear output status LED displays facilitate on-site operation monitoring and fault diagnosis; modular design allows for quick and easy plug-and-play installation.
Reliable and durable, adaptable to industrial environments
Employs independent fuses and positive logic design, enhancing anti-interference and stability, ensuring long-term reliable operation in industrial environments.
