Description:DS3800NTCF1C1C — turbine control input card for GE Mark IV/Mark V systems, designed to receive and condition critical field signals for accurate monitoring, protection, and real-time control in industrial gas and steam turbine applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS3800NTCF1C1C |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
DS3800NTCF1C1C |input card
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview

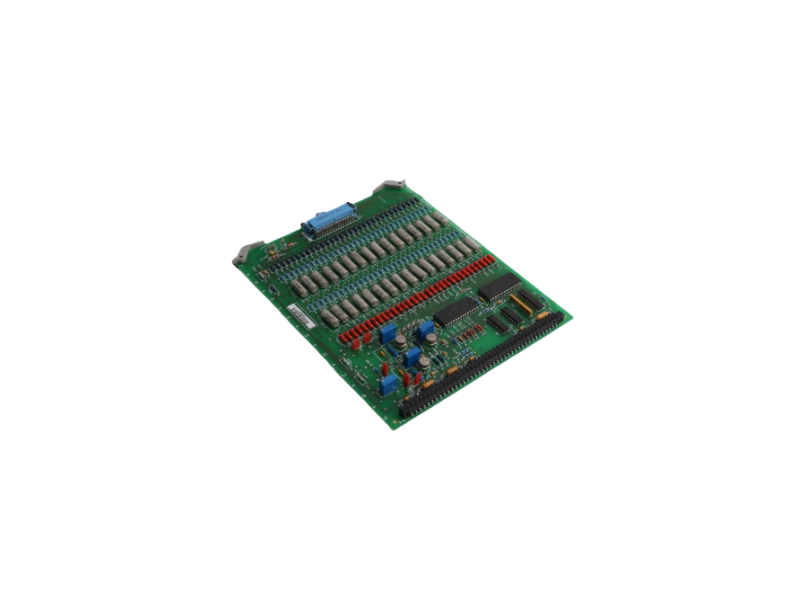

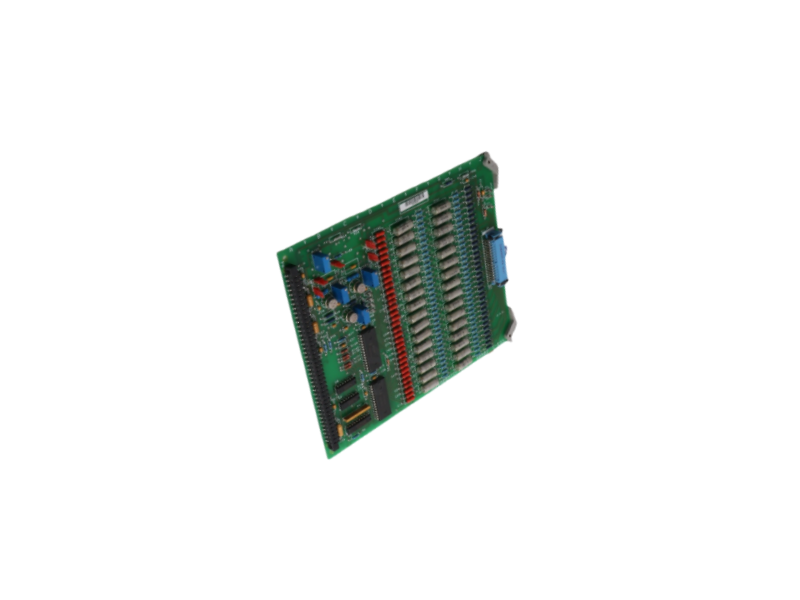

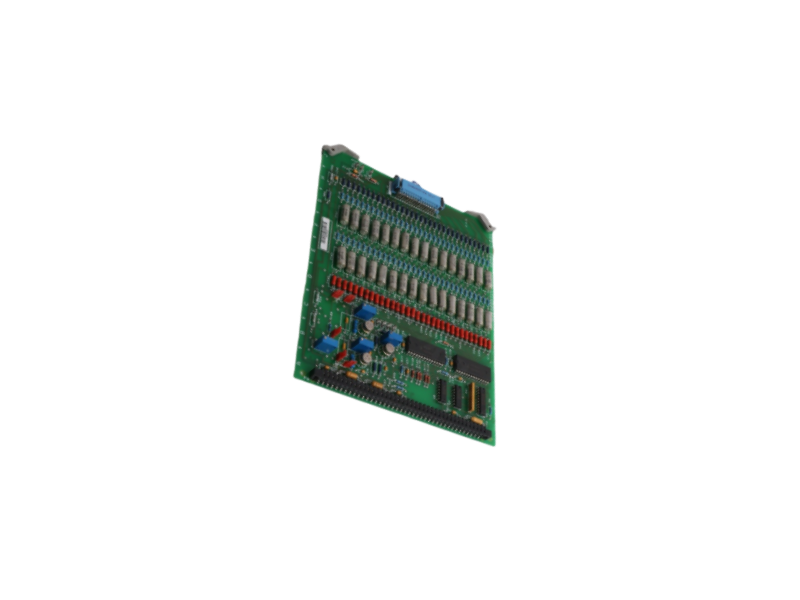

The General Electric DS3800NTCF1C1C is a thermocouple condition/input card in the GE Mark IV Speedtronic series, used for temperature signal acquisition, conditioning, and transmission in industrial gas turbine and steam turbine control systems.
This module is primarily responsible for receiving millivolt-level temperature signals from field thermocouples, amplifying, linearizing, and converting the signals, and finally sending them to the Mark IV control system for real-time monitoring and protection logic calculations. It is a key I/O component in the turbine control temperature link.
Core Specifications
|
Parameter |
Specification |
|
Brand: |
General Electric (GE) |
|
Model: |
DS3800NTCF1C1C |
|
Series: |
Mark IV Speedtronic |
|
Function: |
Temperature signal acquisition / signal conditioning / data conversion |
|
Input Type: |
Thermocouple |
|
Number of Channels: |
16 channels (typical configuration) |
|
Temperature Range: |
-60°C to +870°C |
|
Measurement Accuracy: |
±0.5% FS |
|
Mounting Method: |
Mark IV rack-mount card type |
|
Communication Method: |
Communicates with the control CPU via backplane. |
Product advantages
High-Precision Temperature Monitoring Capability
The DS3800NTCF1C1C enables real-time monitoring of gas turbine exhaust and critical component temperatures, ensuring the control system receives high-precision temperature feedback data.
Multi-Channel Signal Acquisition Design
Supports multiple thermocouple inputs, allowing simultaneous acquisition of temperature data from multiple points for statistical averaging control and redundant protection logic, improving system safety.
Industrial-Grade Anti-Interference Capability
Features excellent electromagnetic compatibility design, enabling stable operation in high-noise, high-vibration gas turbine environments, ensuring signal accuracy.
Dedicated Turbine Control Design
This module is specifically designed for the GE Mark IV Speedtronic system and is a crucial component of the gas turbine temperature control and protection logic.
High Reliability and Redundancy Architecture Support
Participates in temperature statistical control within a multi-card parallel architecture, enhancing system fault tolerance and preventing single-point failures from impacting overall operation.
