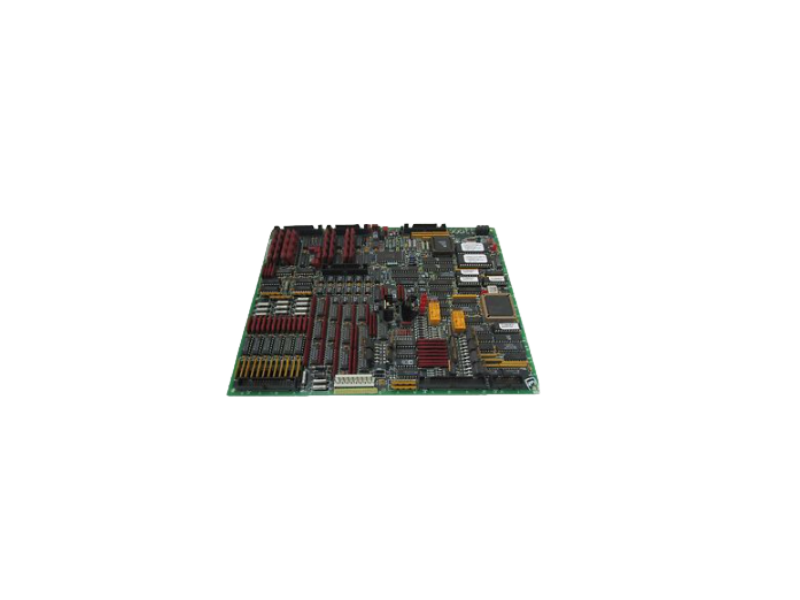

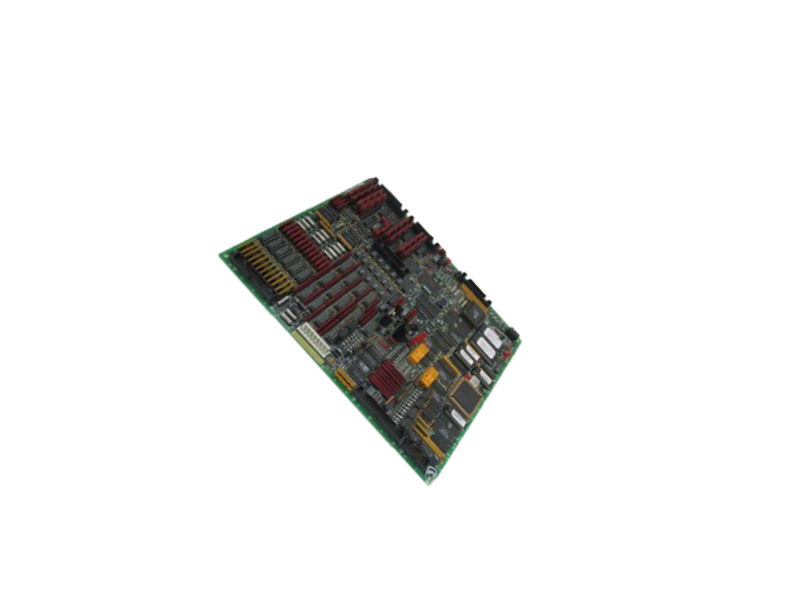

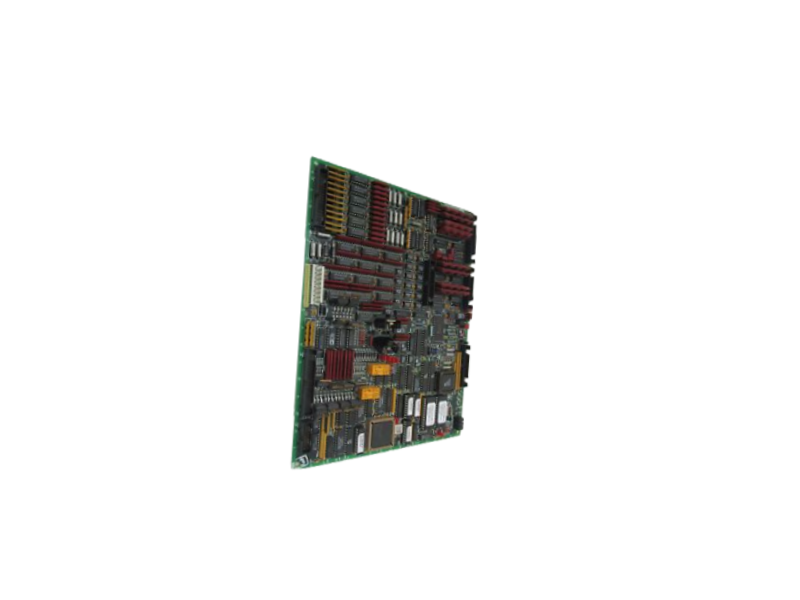

Description:DS200TCQAG1BHF — RST Analog I/O Board for GE Mark V turbine control systems, providing precise analog signal conditioning, scaling, and transmission for critical industrial automation and power generation applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS200TCQAG1BHF |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
DS200TCQAG1BHF | Analog I/O Board
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview
The DS200TCQAG1BHF is a TCQA Analog I/O Board in the General Electric (GE) Speedtronic Mark V control system, primarily responsible for the conditioning, scaling, and transmission of analog signals in the field. This module is installed in the Mark V system's I/O Core to process critical industrial signals from LVDT displacement sensors, thermocouples, vibration monitors, 4-20mA process signals, and servo valve feedback, transmitting the processed data to the control core for real-time calculation and control.
As a crucial component of the GE Mark V gas turbine control platform, the DS200TCQAG1BHF employs a mature analog signal processing architecture, boasting high reliability, strong anti-interference capabilities, and flexible system integration performance. It is widely used in power generation, energy, and heavy industry automation.
Core Specifications
|
Parameter |
Specification |
|
Product Model: |
DS200TCQAG1BHF |
|
Manufacturer: |
General Electric |
|
Product Type: |
Analog I/O Board |
|
Function Abbreviation: |
TCQA |
|
Series: |
Mark V Speedtronic |
|
Main Function: |
Analog signal conditioning and processing |
|
PCB Coating: |
Normal Coating |
|
Mounting Location: |
Mark V I/O Core |
Product advantages
High-Precision Analog Signal Processing
The DS200TCQAG1BHF can scale, filter, and condition various industrial analog signals, ensuring accurate and reliable data input for the control system.
Multi-Signal Compatibility
Supports multiple industrial signal types, including thermocouples, LVDT/LVDR, vibration monitoring, 4-20mA input/output, servo valve drives, and generator monitoring signals, adapting to complex control requirements.
Real-Time Status Monitoring
Onboard six LED indicators display the operating status in real time, helping maintenance personnel quickly locate faults and improve system maintenance efficiency.
Flexible Configuration Capabilities
Equipped with multiple hardware jumpers, parameters can be configured according to different application scenarios, achieving greater system compatibility and field adaptability.
Industrial-Grade Reliability
Designed specifically for Mark V gas turbine control systems, it can operate stably for extended periods in harsh industrial environments, improving the operational safety of critical equipment.
