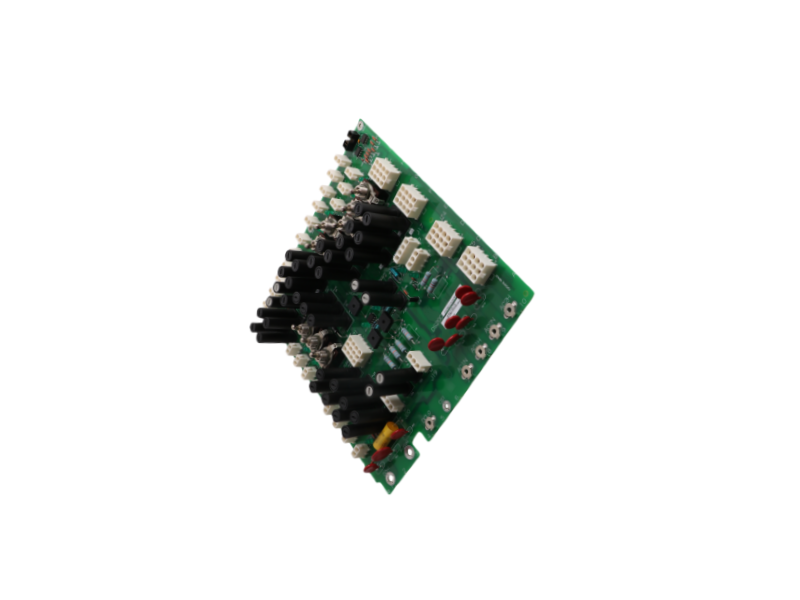

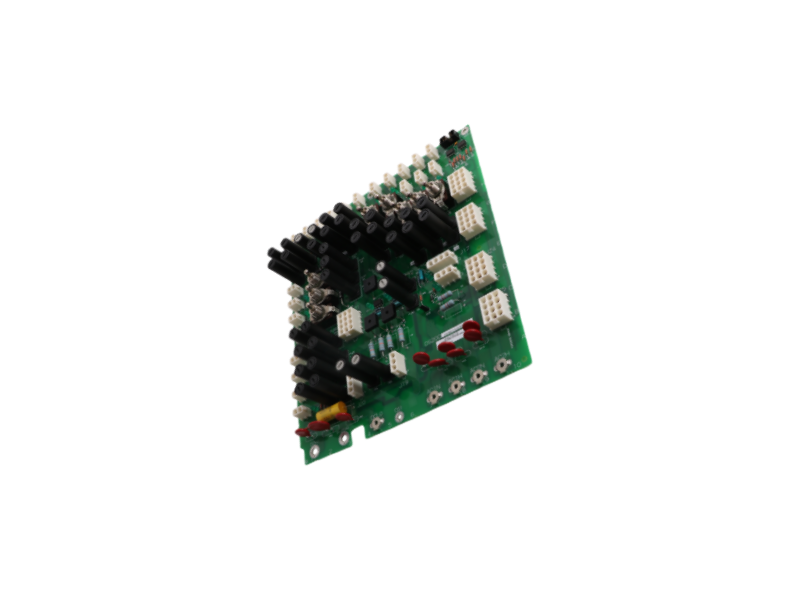

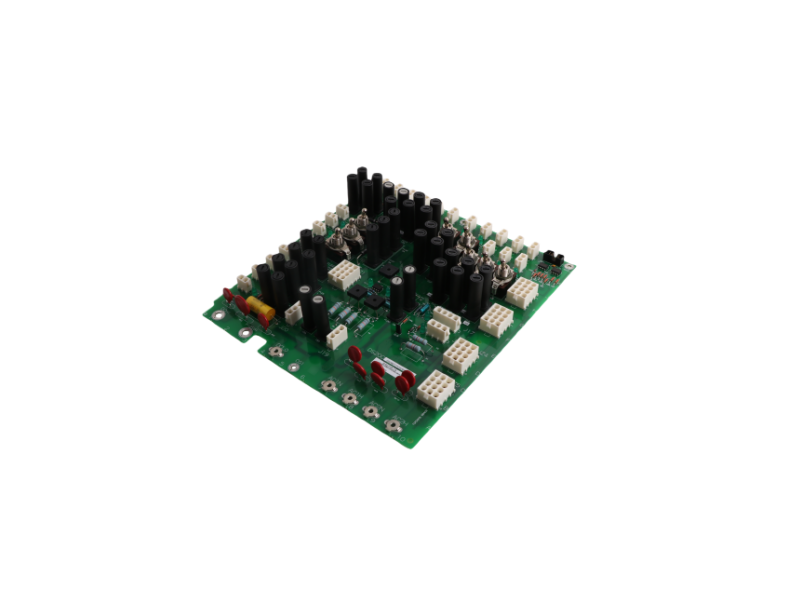

Description:DS200TCPDG2BEC — power distribution board for GE Mark V/Mark VI turbine control systems, providing controlled 125VDC routing and multi-channel power distribution to TCPS and core control modules for reliable industrial system operation.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS200TCPDG2BEC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | Spare Parts Speed 20 Years
Sales Manager May | Email: ab@mooreplc.com | Tel: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Ø Product Overview
The DS200TCPDG2BEC is a Power Distribution Board (TCPD) module used in the General Electric (GE) Mark V/Mark VI Speedtronic control system. This module primarily distributes 125 VDC control power within the turbine control system, reliably allocating power to the TCPD power board and various I/O cores (R1, R2, R3, etc.) and critical control loops, thereby ensuring the stable operation of the entire control system.
In the GE turbine control architecture, the TCPD module is an upstream power distribution unit responsible for independently managing the power supply to each control core and providing switching control and protection functions. It is a key fundamental component in the Mark system power chain.
Spec-Snapshot Table
|
Parameter |
Specification |
|
Product Model: |
DS200TCPDG2BEC |
|
Manufacturer: |
General Electric (GE) |
|
Product Type: |
Power Distribution Board |
|
Control Method: |
Multi-channel independent power switch control (SW1–SW8) |
|
Output Circuit: |
Power supply for control core R1–R5 / P1 / TCEA, etc. |
|
Interface Connection: |
Multiple sets of J1 / J7 / J8 / JZ series connectors |
|
Features: |
Power distribution, isolation control, system-level power management |
|
Installation Method: |
Rack-mounted Mark system within control cabinet |
Key Advantages
Independent Power Distribution for Multiple Components
The DS200TCPDG2BEC allows for independent power supply to different control cores (R1–R5, P1, etc.) via multiplexer control, enhancing system flexibility and safety.
Stable 125VDC Power Management
The module stably distributes main power to the TCPS power modules and control loops, ensuring continuous and reliable operation of the control system.
High-Reliability Industrial Design
Adopting GE Speedtronic industrial-grade design standards, it can operate stably for extended periods in high-temperature, vibration, and electromagnetic interference environments.
System-Level Power Protection Mechanism
Built-in switches and protection structures isolate faulty areas in abnormal situations, reducing the risk of system-level downtime.
Easy Maintenance and Expansion
Clear terminal and connector design makes field maintenance, replacement, and system expansion more efficient and convenient.
