Description:DS200TCPDG1BEC — power distribution board for GE Mark V turbine control systems, providing protected 125VDC multi-circuit power routing and fuse-monitored distribution to core control modules for reliable industrial operation.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS200TCPDG1BEC |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience

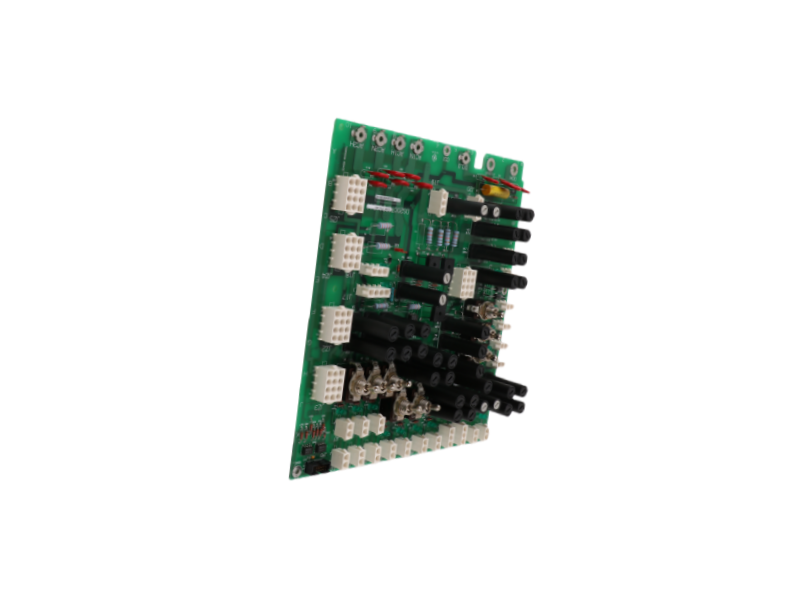

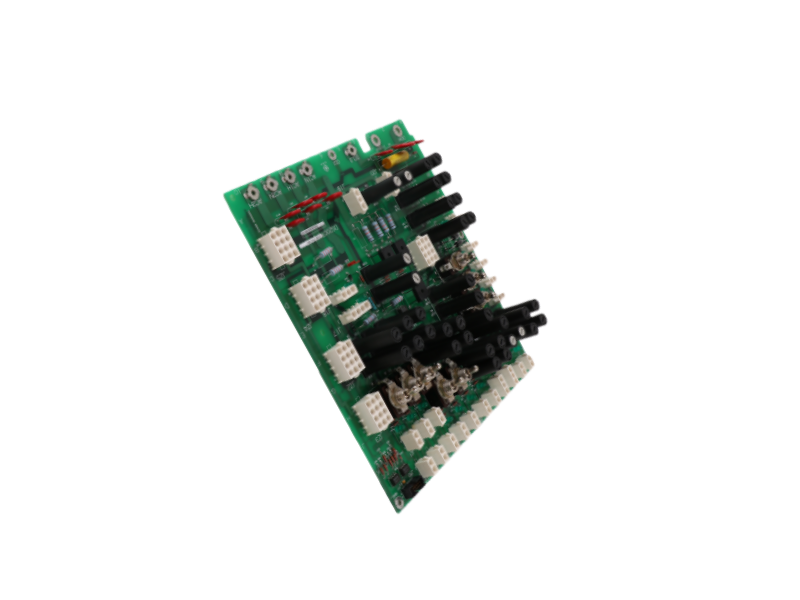

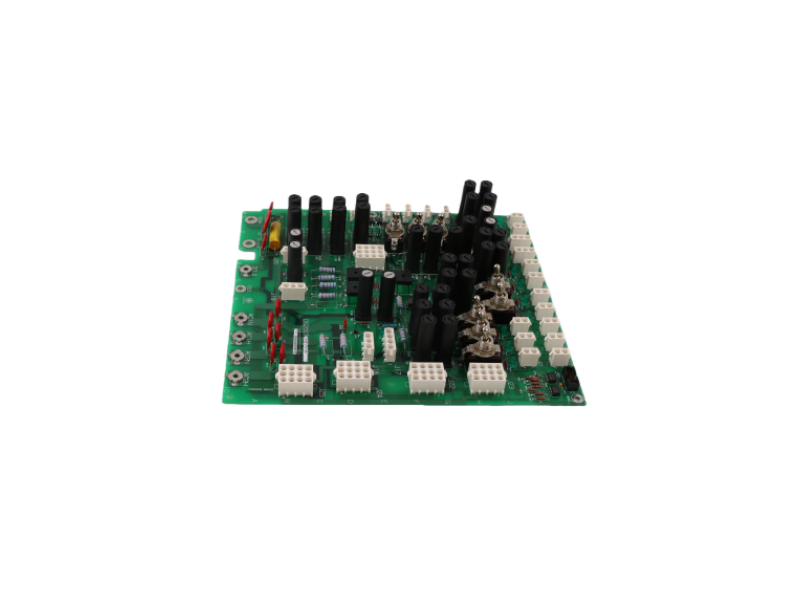

General Electric |DS200TCPDG1BEC |Power Distribution Board
What it is
The DS200TCPDG1BEC is a Power Distribution Module (TCPD) in the General Electric (GE) Mark V Speedtronic control system. It distributes the 125 VDC main control power in the turbine control system and reliably delivers power to the TCPS power board and various I/O cores (such as R1, R2, R3), as well as protection and control circuits.
This module is a core distribution unit in the Mark V system power architecture. Through multiple fuses and switch controls, it achieves independent power supply and isolation protection for different control areas, making it a crucial fundamental component for the stable operation of gas turbine and steam turbine control systems.
Technical Specifications
|
Parameter |
Specification |
|
Manufacturer: |
General Electric |
|
Product Model: |
DS200TCPDG1BEC |
|
Product Type: |
Power Distribution Board |
|
Series: |
Mark V Speedtronic |
|
Function: |
Power distribution and control loop protection |
|
Number of Fuses: |
36 |
|
Number of Switches: |
8 toggle switches |
Structure and Interface
Multi-channel independent power distribution
The DS200TCPDG1BEC can distribute 125VDC power to multiple control cores, enabling independent power supply and isolation for each subsystem, thus improving overall system safety.
High-density protection design
Each output is equipped with an independent fuse and status LED, allowing real-time monitoring of the circuit's health status and facilitating rapid fault location.
System-level isolation and control capabilities
Eight toggle switches enable power start/stop control for different control cores, improving maintenance flexibility and system management capabilities.
Industrial-grade reliability
Designed to GE Speedtronic standards, it is suitable for industrial environments with high temperatures, strong vibrations, and strong electromagnetic interference.
Easy maintenance
The fuses feature a clip-on design for quick replacement, significantly reducing downtime for maintenance.
Application Areas
Gas turbine control systems: Used for power distribution and protection of core control modules and actuators.
Steam turbine automation systems: Provide stable power supply to I/O and monitoring modules within the control cabinet.
Power plant DCS systems: Widely used in the GE Mark V control architecture of thermal power and combined cycle power plants.
Oil and gas industry: Suitable for power management of compressors, pump stations, and process control systems.
Industrial automation systems: Used in large-scale continuous production systems in metallurgy, chemical industry, water treatment, etc.
|
PLC Automation Controller-20 years of experience in sales automation |
|
|
Brand new original |
One Year Warranty |
|
Integrity supply |
best price |
|
Fast Delivery |
In Stock/A large number of stocks |
|
Top Quality |
24/7Service |
PLC Autocontroller keeps theDS200TCPDG1BEC in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
