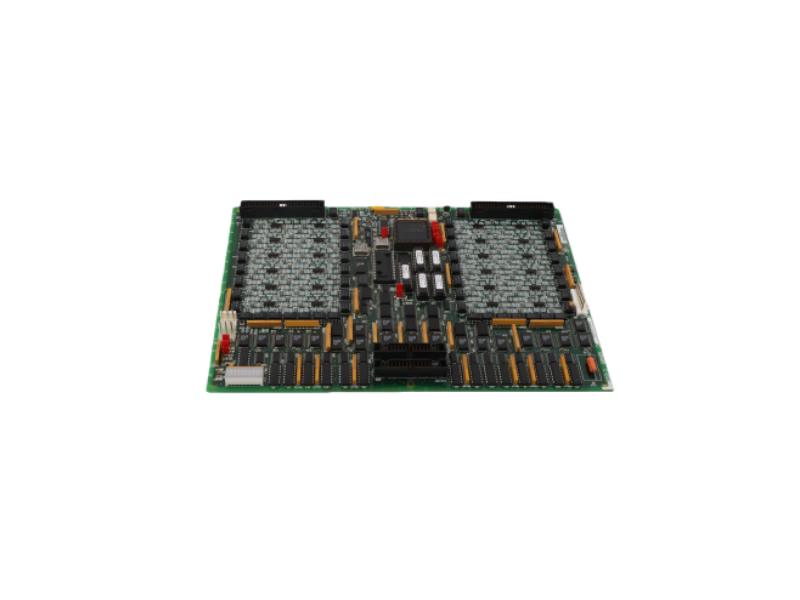

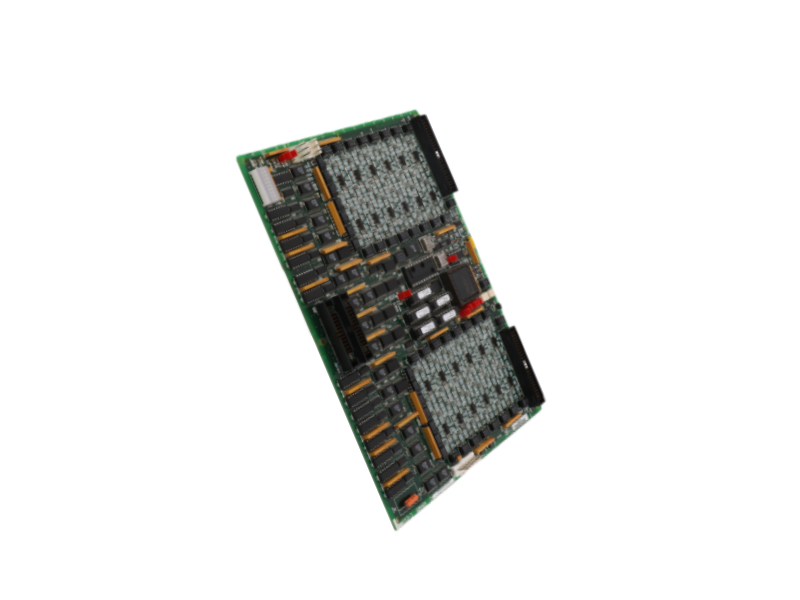

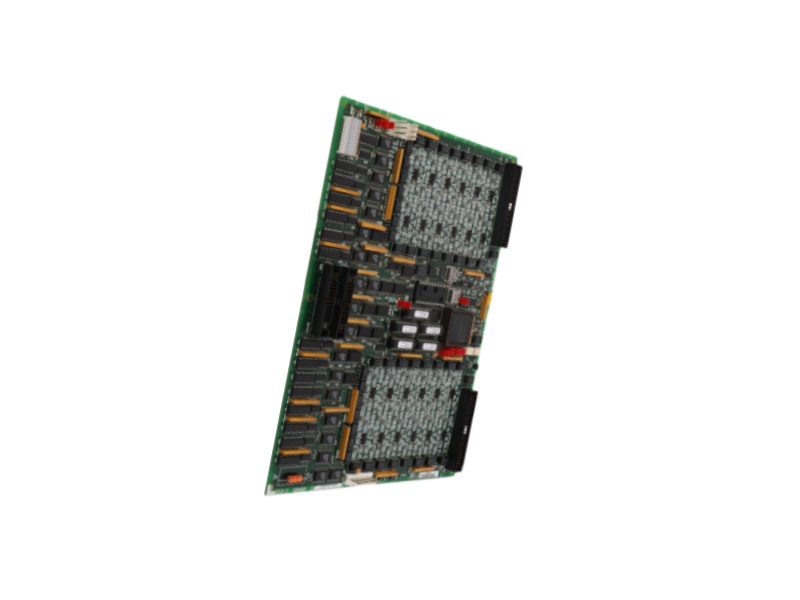

Description:DS200TCDAH1BHD — digital I/O board for GE Mark V turbine control systems, providing reliable discrete signal input/output handling and IONET communication for industrial automation and turbine control applications.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS200TCDAH1BHD |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
v GE Mark VI Series: DS200TCDAH1BHD
The DS200TCDAH1BHD is a Digital I/O Board (TCDA) in the General Electric (GE) Mark V Speedtronic turbine control system, used for digital signal interaction and processing between the control system and field devices.
This module is installed in the Mark V system's Digital I/O Core (such as Q11, Q51, or Q21), primarily receiving switch input signals from the DTBA/DTBB terminal blocks and transmitting the processed signals to the control core via the IONET network. It also outputs control signals to the TCRA relay/solenoid valve drive circuit, making it a critical digital signal interface module in the turbine control system.
v DS200TCDAH1BHD Specification
v Product Model: DS200TCDAH1BHD
v Manufacturer: General Electric (GE)
v Product Type: Digital I/O Board
v Function Abbreviation: TCDA
v Series: Mark V Speedtronic
v Main Functions: Digital input/output signal processing and transmission
v Input Signals: DTBA / DTBB contact signals
v Output Signals: TCRA relay/solenoid valve control signals
v Communication Method: IONET data bus
v Connection Interfaces: JP, JQ, JR, JO1, JO2, JX1/JX2
v I/O Core Location: Q11 / Q51 / Q21 (optional)
v The IS220PAICH1A offers numerous advantages:
v High-Speed Digital Signal Processing Capabilities: The DS200TCDAH1BHD can quickly process switch signals from field devices, performing debouncing and status recognition to ensure accurate and reliable control logic response.
v IONET Real-Time Communication Architecture: Communicates with the control core via the IONET network, enabling distributed digital signal management and improving overall system response speed and reliability.
v Bidirectional I/O Control Capabilities: Supports not only input signal acquisition but also outputs control commands to the TCRA module, achieving a complete closed-loop control of field devices.
v Industrial-Grade Stable Design: Designed to GE Speedtronic standards, it is suitable for industrial environments with high temperatures, high vibrations, and strong electromagnetic interference.
v Easy Maintenance and Diagnostics: Onboard LED status indicators and test point design facilitate rapid on-site diagnosis and troubleshooting.
v Why choose the IS220PAICH1A?
The GE DS200TCDAH1BHD is the core digital input/output module in the Mark V Speedtronic control system, responsible for acquiring field switch signals and outputting control commands. With its stable IONET communication capabilities, bidirectional I/O control structure, and industrial-grade reliability, this module plays a crucial role in logic control and signal interface in gas turbines and large-scale industrial automation systems.
