Description:DS200TBQAG1ABB — analog termination board for GE Mark V turbine control systems, providing reliable field signal termination and distribution of 4–20 mA, RTD, and thermocouple inputs to control modules.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS200TBQAG1ABB |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 years of excellence in industrial automation parts supply
DS200TBQAG1ABB | Emergency Overspeed Board
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Product Identification

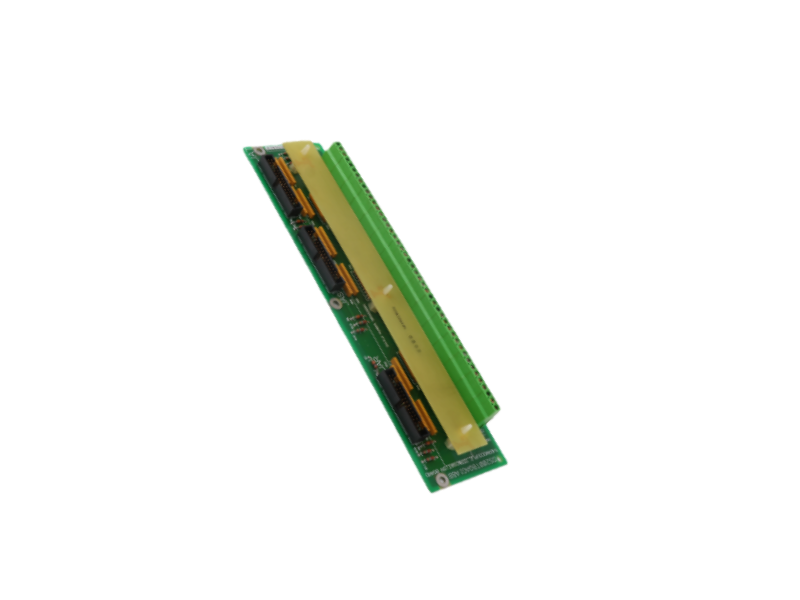

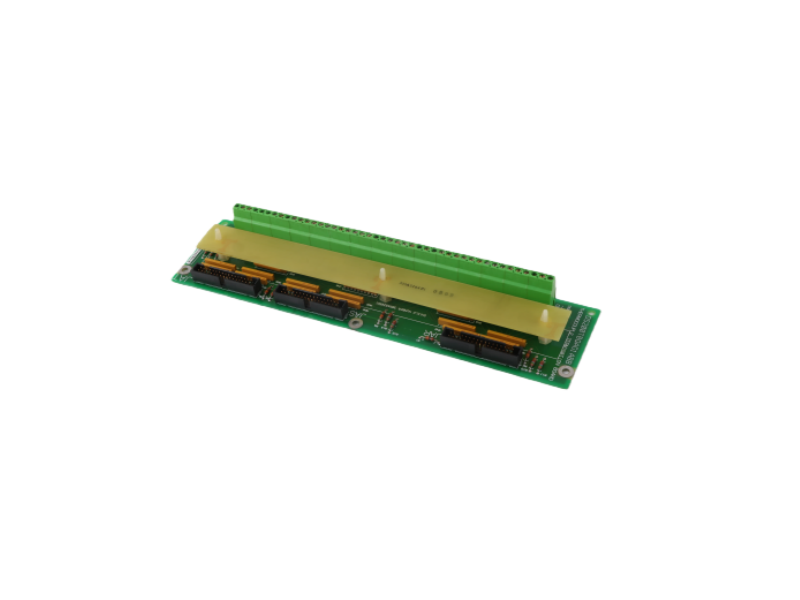

The DS200TBQAG1ABB is an RST Analog Termination Board (TBQA) in the General Electric (GE) Mark V Speedtronic turbine control system. It is used for the centralized access and distribution of field analog signals (such as temperature, pressure, 4–20 mA, thermocouples, etc.) within the control system.This module is typically installed in the R Core/I/O Core of the Mark V control cabinet, serving as the front-end terminal interface for analog signals. It reliably transmits process variable signals from field instruments to control processing modules such as the TCQA/TCCB, enabling precise monitoring and control of gas turbines and steam turbines.
Product Model: DS200TBQAG1ABB
Manufacturer: General Electric (GE)
Product Type: RST Analog Terminal Board
Functional Module: TBQA
Series: Mark V Speedtronic
Channel Capacity: Multiple analog signal inputs (system-level expansion)
Terminal Structure: Dual 90-pin terminal blocks (TB1 / TB2)
Maximum Signal Capacity: Up to approximately 180 signal inputs
System Connectors: Multiple 20-pin/50-pin onboard interfaces
Mounting Method: Mark V control cabinet plug-in mounting
Compatible Modules: TCQA / TCCB / TCDA and other I/O control boards
Operating Environment: Industrial control cabinet environment
System Application: GE Mark V turbine control system
Country of Origin: USA
Features (General Summary):
High-Density Analog Signal Input Capability
Supports up to 100 analog signal inputs, suitable for complex industrial process control systems.
Strong Anti-Interference and Stable Transmission
Industrial-grade terminals and shielding design effectively reduce electromagnetic interference and improve measurement stability.
System-Level Compatibility Design
Seamlessly collaborates with GE Mark V TCQA/TCCB modules to build a complete analog signal acquisition chain.
Reliable and Durable Structure
Utilizes industrial-grade PCB and terminal structure, suitable for long-term continuous operation environments.
Easy-to-Maintain Design
Modular terminal layout facilitates field wiring, maintenance, and replacement.
Application Areas
Gas turbine control systems are used for acquiring key process variables such as temperature, pressure, and fuel flow.
Steam turbine automation systems enable analog signal monitoring and closed-loop control.
Power plant DCS systems are widely used in the analog signal input layer of the GE Mark V control architecture.
Oil and gas industry systems are used for analog signal management in compressor and process control systems.
Industrial process control systems are suitable for continuous production systems in metallurgy, chemical industry, and water treatment.
