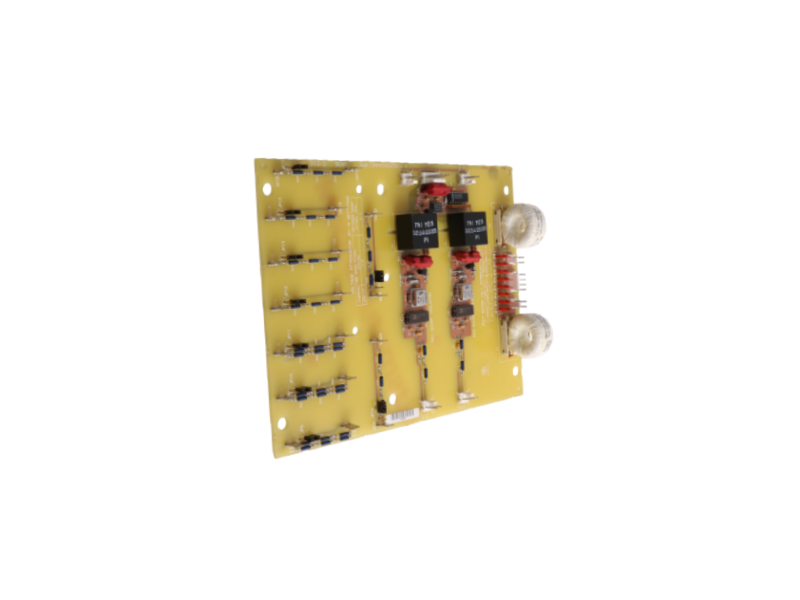

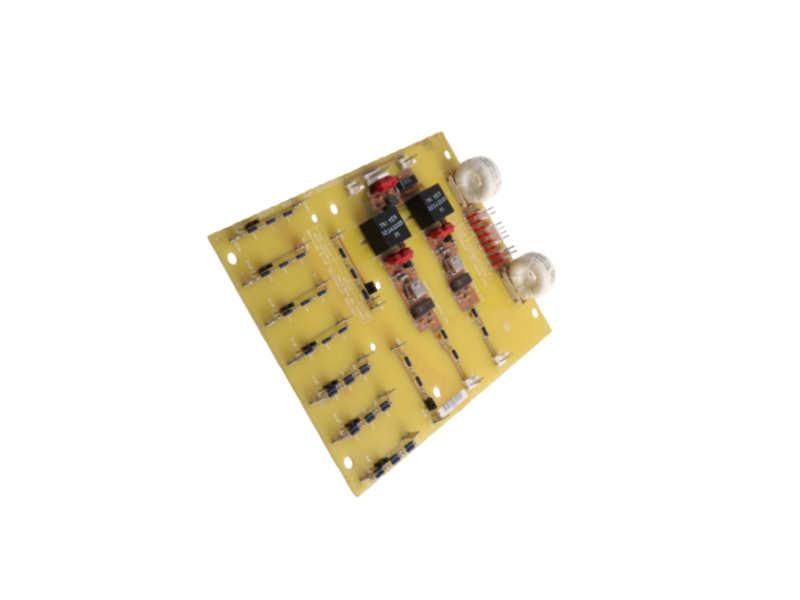

Description:DS200SHVMG1AFE — GE Mark V SCR high-voltage interface board enabling isolated signal conditioning and frequency conversion for accurate power feedback in turbine drive control systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | GE |
| Item number | DS200SHVMG1AFE |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience
General Electric |DS200SHVMG1AFE| Interface Board
What it is
The General Electric DS200SHVMG1AFE is an SCR High Voltage M-Frame Interface Board engineered for the GE Mark V Speedtronic turbine control platform. Designed to interface the SCR bridge, DCFB/SDCI power supply board, and PCCA power connection card, it performs high-voltage signal isolation, conditioning, and conversion to ensure accurate feedback and stable drive operation. The board converts shunt signals from –500 mV to +500 mV into differential frequency outputs ranging from 0 to 500 kHz, while also providing selectable current transformer attenuation for AC line current measurement. With its rugged industrial design and configurable hardware, the DS200SHVMG1AFE is widely used in GE drive, exciter, and turbine control systems requiring precise voltage and current feedback.
Technical Specifications
|
Parameter |
Specification |
|
Manufacturer: |
General Electric |
|
Product Model: |
DS200SHVMG1AFE |
|
Type: |
SCR High Voltage M-Frame Interface Board |
|
Series: |
GE Mark V Speedtronic |
|
Function Abbreviation: |
SHVM |
|
Main Function: |
High voltage signal interface and conditioning |
|
Application: |
M-frame SCR drive system |
|
Input Signal Range: |
-500 mV to +500 mV parallel input |
Structure and Interface
Designed specifically for GE Mark V Speedtronic industrial control systems.
Provides reliable isolation between high-voltage SCR circuits and low-voltage control electronics.
Converts low-level shunt signals into noise-immune differential frequency outputs.
Supports 0–500 kHz frequency output for accurate current feedback.
Features 17 configurable jumpers for flexible attenuation and application settings.
Offers selectable 10:1 current transformer attenuation for AC line current measurement.
Improves system accuracy by conditioning voltage and current feedback signals.
Rugged industrial PCB construction ensures reliable long-term operation.
Compatible with GE DCFB, SDCI, and PCCA interface boards for seamless integration.
Application Areas
The DS200SHVMG1AFE is widely used in:
GE Mark V Speedtronic turbine control systems
SCR-based industrial drive systems
EX2000 excitation systems
DC2000 drive control platforms
Gas turbine control
Steam turbine automation
Power generation facilities
Oil & gas processing plants
Petrochemical industries
Heavy industrial motor drive applications
|
