Description:Emerson DeltaV KJ4006X1-BP1 (12P4733X052) 40-pin high-capacity series terminal block is a key component in the DeltaV Distributed Control System (DCS).
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Emerson |
| Item number | KJ4006X1-BP1 12P4733X052 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of DeltaV Integration Expertise
Data Sheet: Emerson KJ4006X1-BP1 12P4733X052 – DeltaV 40-Pin Mass Terminal Block
Contact: ab@mooreplc.com | Same-day dispatch worldwide
What It Actually Is

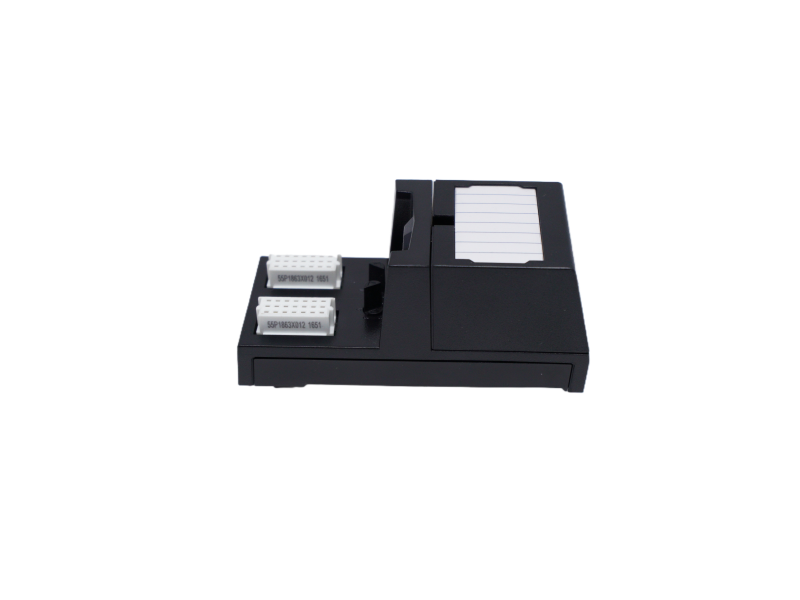

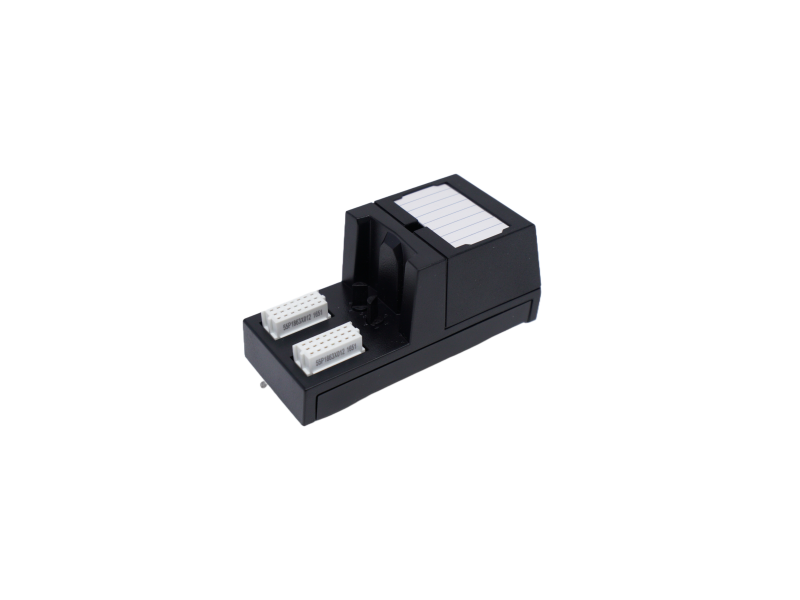

Emerson KJ4006X1-BP1 (part number: 12P4733X052) is a 40-pin mass terminal block designed specifically for the DeltaV S-series digital automation system. It acts as a high-density field wiring interface, enabling fast, secure, and service-friendly connections between process instruments and the controller. Each terminal is rated for 30 VDC field power at up to 3.2 A, so one block can carry a total of ~96 A without derating—enough to support large I/O bundles on a single footprint.
Key Details
• Pins: 40, screw-clamp, 2.5 mm² max conductor
• Voltage Rating: 300 V AC / 300 V DC (per Emerson ATEX sheet)
• Current Rating: 10 A per pin (UL), 16 A per pin (IEC)
• Wire Size: 0.14 – 2.5 mm² (AWG 26 – 12)
• Pitch: 5.08 mm (0.2 in)
• Temperature: –40 °C … +70 °C
• Protection: IP20, finger-safe shroud
• Approvals: CE, UL, marine (DNV, ABS, LR, BV, NK, KR, RINA)
• Keying: Rotating key system – must match I/O card key code before insertion
• Hot-swap: Can be inserted/removed under power only when no I/O card is installed and field wiring is disconnected (per Emerson ATEX instruction)
Ready-to-Ship Package
|
Part Number |
Description |
|
KJ4006X1-BP1 12P4733X052 |
40-pin mass terminal block |
|
KJ4006X1-BC1 12P4733X062 |
8-channel fused terminal block (30 V DC, 3.2 A per channel) |
|
KJ4006X1-BK1 12P4733X072 |
Redundant interface terminal block (35 V DC, 1 A per channel) |
|
KJ4001X1-CA1 12P0818X042 |
16-channel digital I/O terminal block |
|
KJ4001X1-CB1 12P0818X052 |
8-channel analog I/O terminal block |
|
KJ4001X1-CC1 12P0818X062 |
8-channel RTD terminal block |
|
KJ4001X1-CD1 12P0818X072 |
8-channel thermocouple terminal block |
Contact – Pick Your Channel
• Quote: ab@mooreplc.com
• WhatsApp: +86-18106909650 (24 h)
• WeChat id: dcsfcs
All items factory-sealed, ready for same-day dispatch worldwide.
