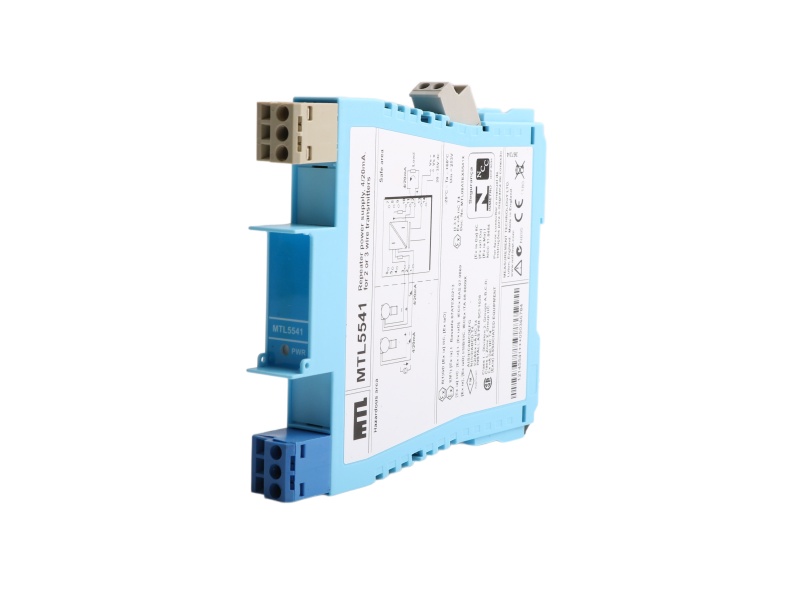

Eaton Crouse-Hinds MTL5541 Repeater Power Supply front view

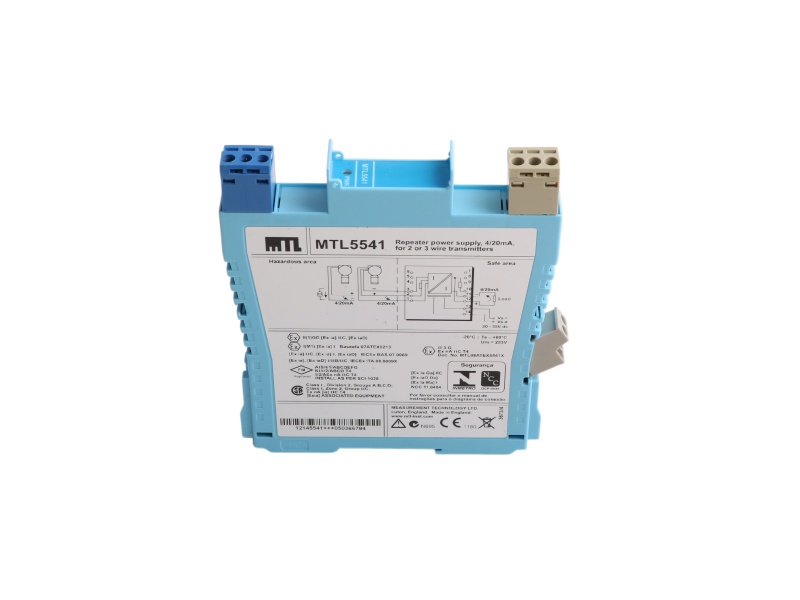

Eaton Crouse-Hinds MTL5541 Repeater Power Supply side view
Eaton Crouse-Hinds MTL5541 Repeater Power Supply detail view

Eaton Crouse-Hinds MTL5541 Repeater Power Supply

Application: Single-channel intrinsically safe repeater supply for 2- or 3-wire 4-20 mA transmitters.

Product familyMTL5500 Galvanic Isolators
Minimum order1 Piece
Applicable ratings4-20 mA with HART; 20-35 VDC supply
LifecycleLifecycle not stated in the current Eaton product listing
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Eaton Crouse-Hinds / MTL
Item number MTL5541
Country of Origin United Kingdom
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
MTL5541
HART REPEATER POWER SUPPLY

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

MTL5541 Technical Data

Exact item scope
Channel countOne isolated transmitter channel
Safe-area signal4-20 mA; under/over-range 0-24 mA
Safe-area load0-360 Ω at 24 mA; 0-450 Ω at 20 mA
Hazardous-area supply16.5 V available at 20 mA
Transfer performanceBetter than 15 µA accuracy at 20 °C; drift below 0.8 µA/°C
Dynamic responseSettles within 10% of final value in 50 µs
CommunicationsBidirectional HART on terminals 1 and 2
Module power20-35 VDC supply; 51 mA maximum consumption at 24 V with a 20 mA signal
Functional safetyAssessed as SIL 3 capable for a single device with HFT = 0
Model-specific application profile

Hazardous-area transmitter interface

MTL5541 energizes a conventional field transmitter in the hazardous area and repeats its loop current into a floating safe-area circuit while retaining compatible HART signalling.

Field-device roleInterfaces suitably certified Zone 0 or Division 1 transmitters with the control-side load
Terminal segregationMaintain the documented separation between hazardous-area and safe-area circuits
Entity checkValidate cable and apparatus parameters against Uo 28 V, Io 93 mA and Po 651 mW before installation

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What does the front green LED indicate?

The green indicator is the published power-on indication.

02

Can a separately powered four-wire transmitter be connected?

Yes, but the datasheet states that this arrangement does not support HART communication.

03

Is MTL5541S the same output arrangement?

No. The S suffix identifies a safe-area current-sink version rather than the source-output circuit listed here.

04

What ripple is specified on the safe-area circuit?

The manufacturer specifies less than 50 µA peak-to-peak.
