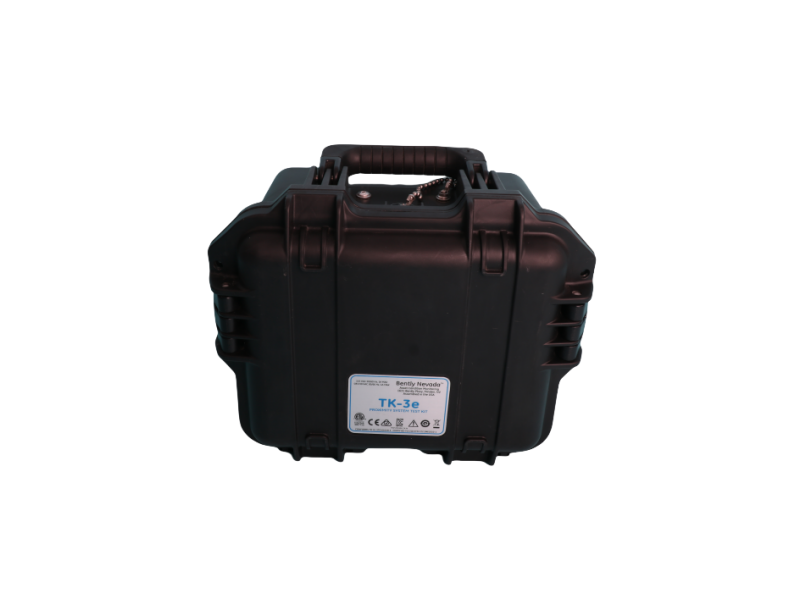

Description:Bently Nevada TK‑3E 177313‑02‑02 Test Kit — electric‑driven proximity system test kit to simulate shaft vibration & position for calibrating eddy‑current probe systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | TK-3E 177313-02-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

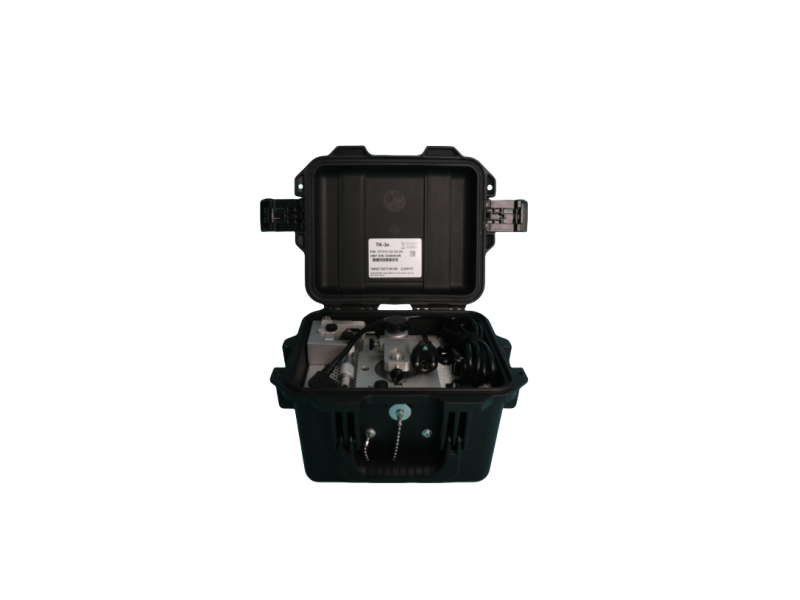

Bently Nevada tk-3e 177313-02-02 Proximity System Test Kit is an electrically driven calibration tool produced by Bently Nevada for simulating shaft vibration and displacement signals. Calibrate or conduct health checks on proximity probes and monitors. This device can simulate the signals in actual mechanical operation, allowing engineers to verify the system performance without stopping the machine or disassembling it
Precise calibration capability: By simulating mechanical vibrations through an adjustable "wobble plate", it helps calibrate the accuracy of proximity systems.
Universal probe installation: The Universal probe fixture supports probes ranging from 5mm to 19mm, eliminating the need to prepare multiple adapters for probes of different diameters.
No oscilloscope requirement: Signals are generated through the built-in simulation mechanism in vibration mode, allowing for reading and calibration without the need to connect an oscilloscope.
Portability & Durability: Robust housing (IP54), easy on-site maintenance, detachable spindle micrometer + magnetic base design.
Standard compatibility: Compatible with Bently 3300/3300 XL series proximity probes and monitoring modules, it can be widely used for on-site calibration and maintenance
|
Parameter |
Value |
|
Model |
TK-3E 177313-02-02 |
|
Type |
Electric-Driven Proximity System Test Kit |
|
Vibration simulation |
Amplitude 50 µm to 254 µm peak-to-peak (2 to 10 mils) |
|
Maximum Speed: |
0 to 5000 cpm (±1000 cpm), electrically driven |
|
Spindle Micrometer range: |
0-25.4 mm (0-1000 mils) |
Typical application scenarios
ü Calibration and verification of proximity probe systems for key rotating equipment (such as turbines and compressors)
ü System health check during the equipment maintenance cycle (routine maintenance)
ü Perform Factory Acceptance/Site Acceptance Test when installing the 3500/3300 series monitoring system
ü It is used for the linearity and deviation inspection of probes in predictive maintenance (PdM)
