Description:9990-10 - XX - 01-05 (MOD 285269-01) - Bently Nevada high-frequency two-wire 4-20 mA vibration transmitter for precise condition monitoring of critical rotating machinery.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 990-10-XX-01-05 MOD:285269-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
990-10-XX-01-05 MOD:285269-01| vibration transmitter
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview

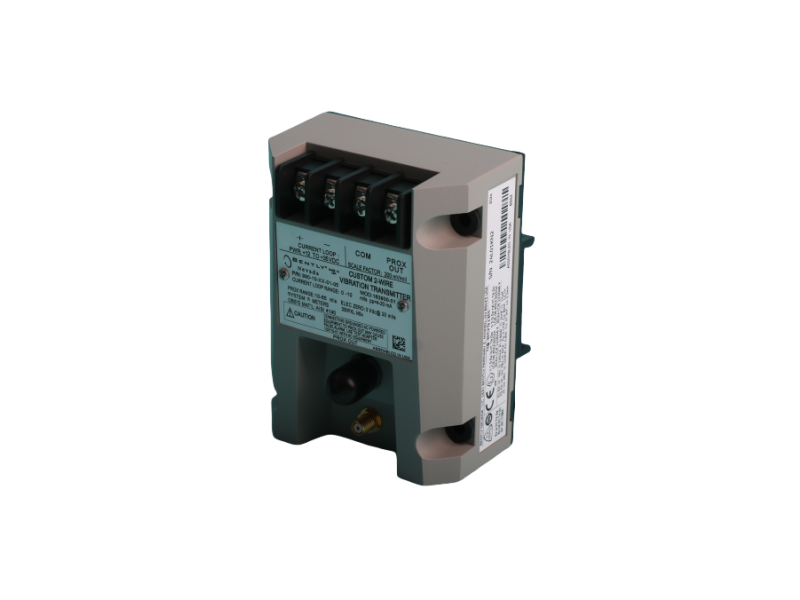

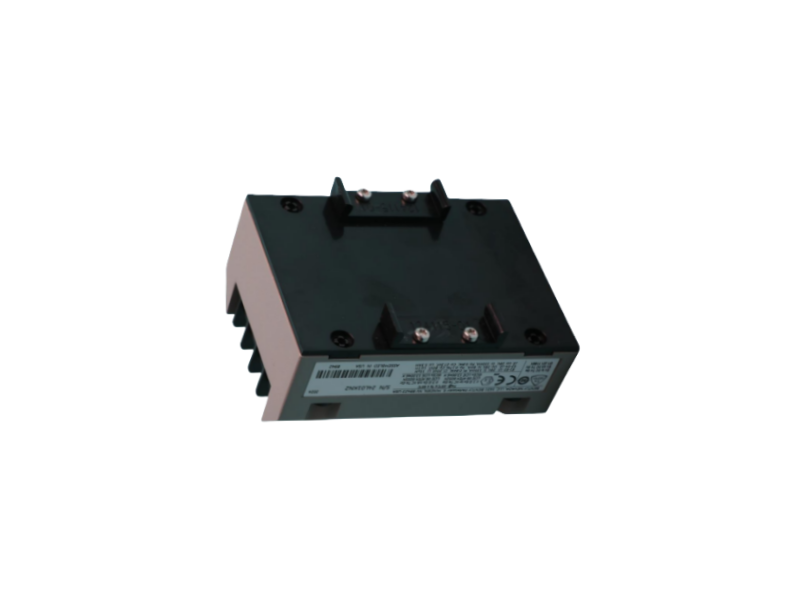

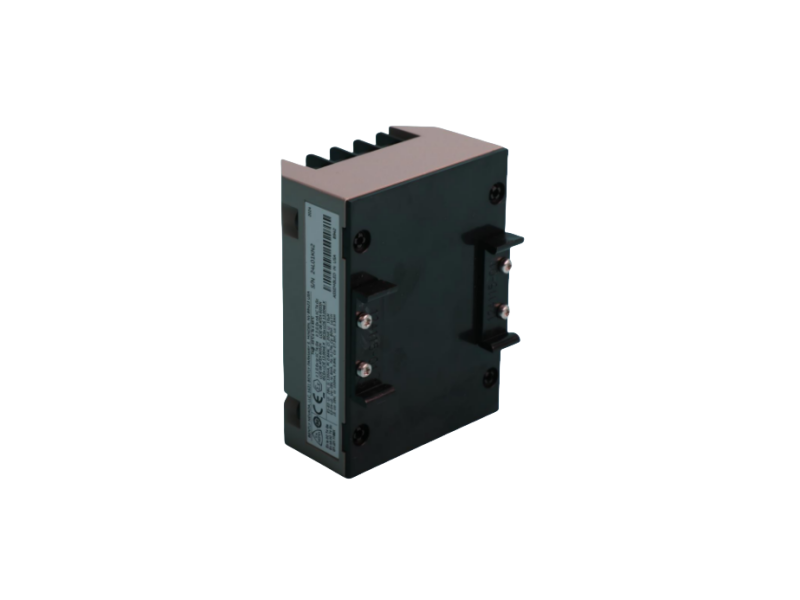

Model 990-10 - XX - 01-05 (MOD: 285269-01) is a high-frequency 2-wire vibration transmitter of the Bently Nevada 990 series. It converts the vibration signals of rotating machinery (such as compressors, pumps, turbines, etc.) into standard 4-20 mA output, suitable for OEM integration, as well as real-time condition monitoring and predictive maintenance.
Core Specifications
Ø Model/Version：990-10-XX-01-05 (MOD: 285269-01)
Ø Signal type/sensor:Proximity probe or other vibration sensors
Ø Output signal：4-20 mA loop power supply + output
Ø Supply voltage: 12-36 V DC
Ø Frequency response range example: 10 Hz to 10 kHz
Ø Measurement range/sensitivity, such as 10-100 mm/s (or other ranges)
Ø Environmental protection IP65 / IP67 (depending on the version)
Ø The Zero and Span external adjustable potentiometer for calibration function
Ø Fault protection "Not OK/Signal Defeat"
Ø Installation method: DIN rail or panel/base plate installation
Compatible modules and accessories
Proximity Probe: Such as the Bently Nevada 3300 NSv series probe, which is often used in conjunction with the 990 series transmitter.
Test adapter: When using the Test Input interface, loop verification can be performed using an oscilloscope/signal generator.
Wiring cable: It is recommended to connect the probe and the transmitter with shielded twisted-pair cable to reduce interference.
Installation accessories: DIN rail clips/bolt base plates are suitable for different installation environments.
Contact us
Sales Manager May – PLC Autocontroller (20 years of experience in supplying superior industrial automation parts)
E-mail: ab@mooreplc.com | Phone: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
What happens next?
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
