Description:990-05-XX-01-00 MOD:167577-07 — vibration transmitter module for high-precision vibration monitoring and signal output in industrial rotating machinery.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 990-05-XX-01-00 MOD：167577-07 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience

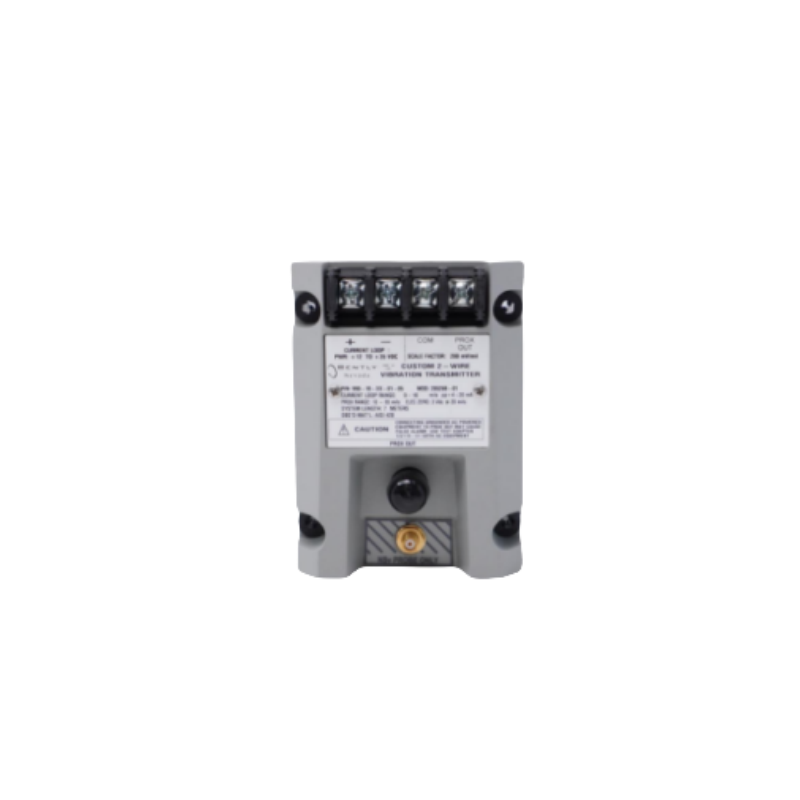

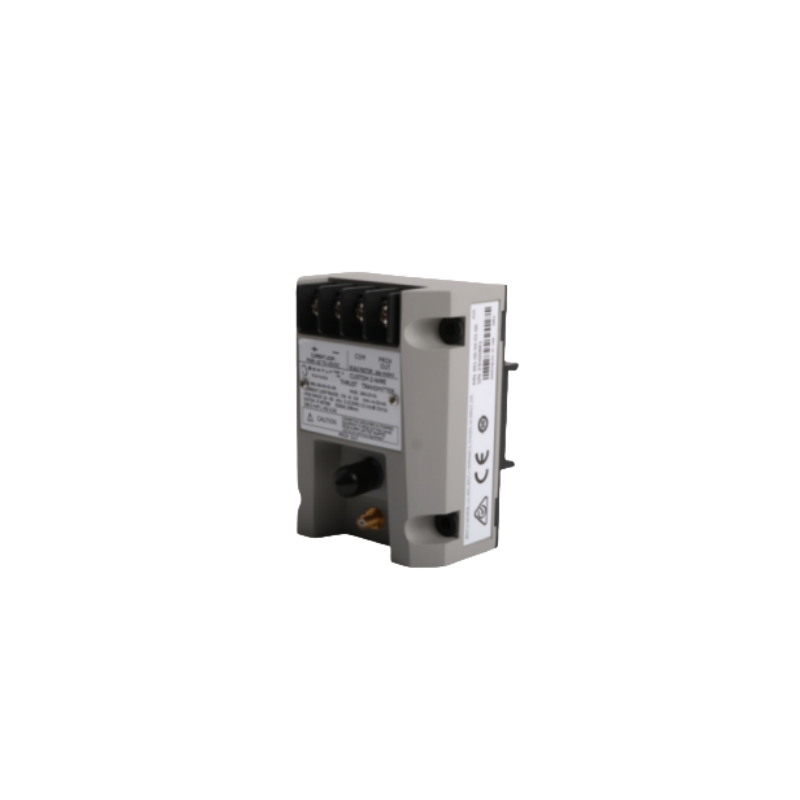

BENTLY NEVADA | 990-05-XX-01-00 MOD：167577-07 | vibration transmitter
Overview
990-05-XX-01-00 MOD: 167577-07 is a Bently Nevada 990 series compact loop power supply vibration transmitter. It can convert the shaft vibration signal detected by the 3300 NSv eddy current probe into a 4-20 mA two-wire current and has one SPDT mechanical relay alarm output. The equipment complies with Ex ia IIC T4... T6 intrinsically safe certification is applicable to vibration protection and trend monitoring of small rotating machinery such as centrifugal compressors, pumps, and fans, providing an economical and reliable mechanical protection solution for OEM and retrofitting projects.
Technical Specifications
Product series: Bently Nevada 990
Number of channels: 1 channel vibration (peak-to-peak)
Input type: 3300 NSv 5mm probe + extension cable (5m or 7m system)
Measurement range: 0-20 mm/s RMS
Sensitivity: 20 mV/mm/s (typical)
Frequency range: 4.5- 1,000 Hz (-3 dB)
Output signal: 4-20mA (two-wire system, loop power supply 18-30VDC)
Relay: SPDT, 250 VAC/5 A or 30 VDC/5 A (resistive load)
Alarm setting: Factory preset 0.5 in/s (customizable, ± 10% accuracy)
Recommended compatible modules and accessories
|
Product advantages |
Application field |
|
Economic integration The two-wire 4-20mA system can be directly connected to the PLC/DCS without the need for a separate vibration instrument Factory preset alarm points save on-site debugging time |
Centrifugal air compressor Radial vibration monitoring at the motor drive end Automatically unload or shut down when the speed reaches 0.5 in/s |
|
Special for small shafts It is equipped with a 5mm NSv probe and is suitable for a minimum shaft diameter of 38mm The frequency band of 4.5- 1,000 Hz covers the vibration characteristics of common fans, pumps and gearboxes |
process pumps and fans Vibration trend management of boiler induced draft fan bearings Online protection interlock of the circulating water pump |
|
Sturdy and durable IP66/NEMA 4X die-cast aluminum housing, resistant to salt spray and ultraviolet rays -20 °C… +70 °C industrial-grade temperature zone, can be directly installed outdoors or in cooling towers |
cooling tower Broadband monitoring of the high-speed shaft of the gearbox at 4.5- 1,000 Hz Early alarm for fan blade imbalance |
|
Explosion-proof certification Ex ia IIC T4… T6 intrinsically safe certification, Zone 1/21 plug and play The SPDT mechanical relay output can maintain a fail-safe state in the event of power failure |
Offshore platform Intrinsically safe vibration protection for natural gas compressor modules Long-term operation of the anti-corrosion area of the seawater lift pump |
|
PLC Automation Controller-20 years of experience in sales automation |
|
|
Brand new original |
One Year Warranty |
|
Integrity supply |
best price |
|
Fast Delivery |
In Stock/A large number of stocks |
|
Top Quality |
24/7Service |
PLC Autocontroller keeps the 990-05-XX-01-00 MOD：167577-07 in bonded inventory for same-day shipment.
