9200-06-05-05-00- Velocity Transducer

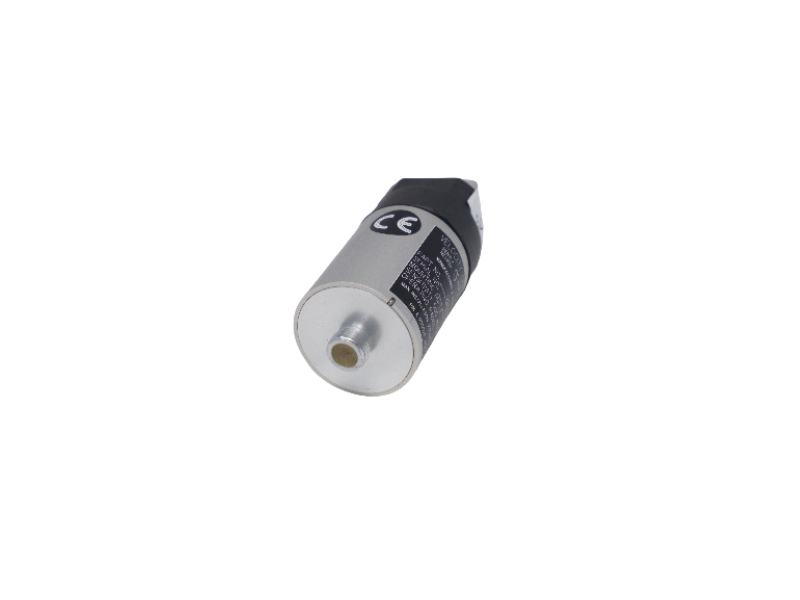

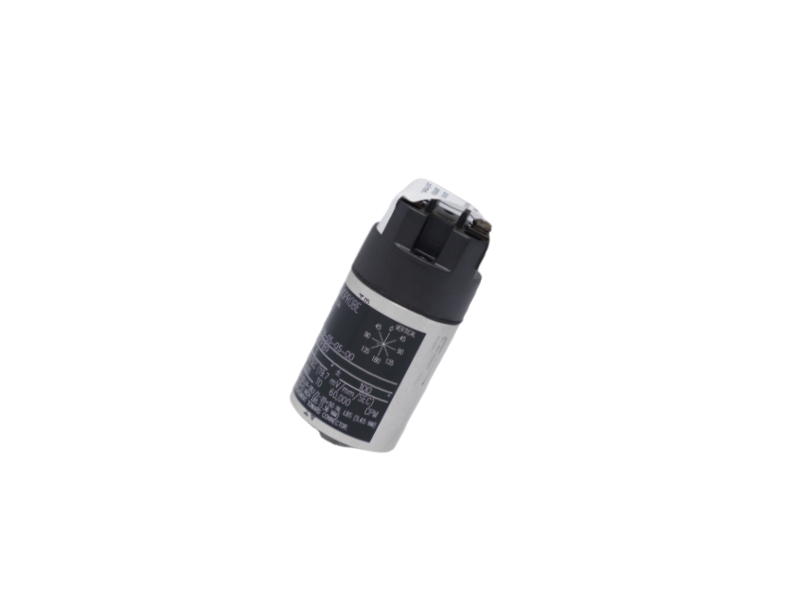

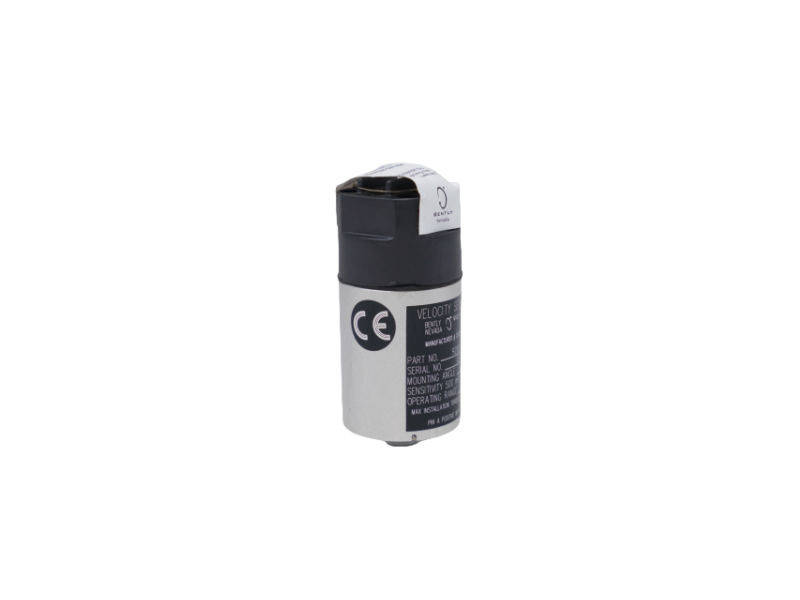

9200-06-05-05-00 is a two-wire Velocity Seismoprobe Transducer in the "9200 series" of Bently Nevada. This sensor is used to measure the vibration velocity of mechanical equipment (such as bearing housing, casing, structural body/machine frame, etc.), converting mechanical vibration into voltage signals proportional to the velocity. For analysis or alarm by monitoring systems (such as vibration monitoring systems/mechanical protection systems/PLC/DCS).

Key parameters and specifications

Ø Manufacturer: Bently Nevada

Ø Model (Part Number) 9200-06-05-05-00

Ø Module type Two-Wire Velocity Seismoprobe Transducer (Velocity Vibration Sensor)

Ø Sensitivity: 20 mV/(mm/s) (equivalent to 500 mV/in/s), ± 5% (in the correct terminal and calibration direction)

Ø Frequency Response: 10 Hz to 1 kHz (i.e., 600-60,000 cpm), +0 / -3 dB (typical)

Ø Maximum dynamic range (maximum displacement) 2.54mm peak-to-peak maximum displacement

Ø Velocity Range: 25 mm/s (1 in/s), reference conditions: +22°C, housing vibration: 100 Hz, load: 10 kΩ.

Ø Coil Resistance: 1.25 kΩ ± 5%

Ø Installation/Mechanical interface No base (No base), use 1/2-20 UNF-3a stud mount (stud mount)

Ø Output signal voltage (velocity - proportional voltage) output (through two-wire system)

Product advantages

Two-wire passive design - no external power supply required, reducing wiring complexity, facilitating retrofit or portable detection, and also facilitating long-term on-site installation with high reliability.

Stable, shock-resistant, suitable for industrial environment - Moving-coil technology is insensitive to shock/transient vibration (impulsive excitation) and more stable than solid-state velocity sensor It is suitable for monitoring industrial equipment that can withstand mechanical shock, environmental vibration or changes in vibration amplitude.

Wide frequency response & sufficient dynamic range - supports from low frequency (10 Hz) to high frequency (1 kHz), covering most common vibration frequencies of rotating machinery; The maximum peak-to-peak displacement of 2.54mm and the speed measurement capability of 25 mm/s are sufficient for the vibration monitoring of most casings/bearing housings.

The output is a standard voltage signal - the output voltage is proportional to the vibration velocity, which is convenient for direct reading by the back-end equipment (vibration monitoring system, analog input module, DCS/PLC) or further processing through the Velocity-to-Displacement converter (if necessary).

Easy installation & Strong compatibility - Using standard stud studs (1/2-20 UNF - 3A), suitable for quick installation; Compact in structure (about 300 g), it is convenient for use in space-constrained equipment such as bearing housings, pumps, compressors, fans, and small machinery

Order & ship

u Xiamen stock, 1 Year Warranty

u 100% Original Package

u UPS/ DHL/ FEDEX / TNT
