Description:9200-01-02-10-00 — Bently Nevada velocity transducer for accurate machinery vibration velocity measurement and seamless integration into industrial condition monitoring systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 9200-01-02-10-00 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

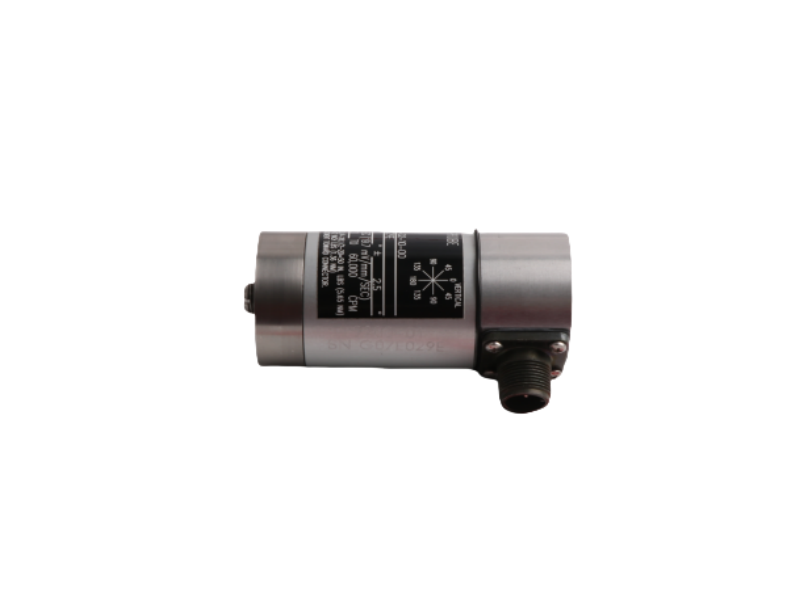

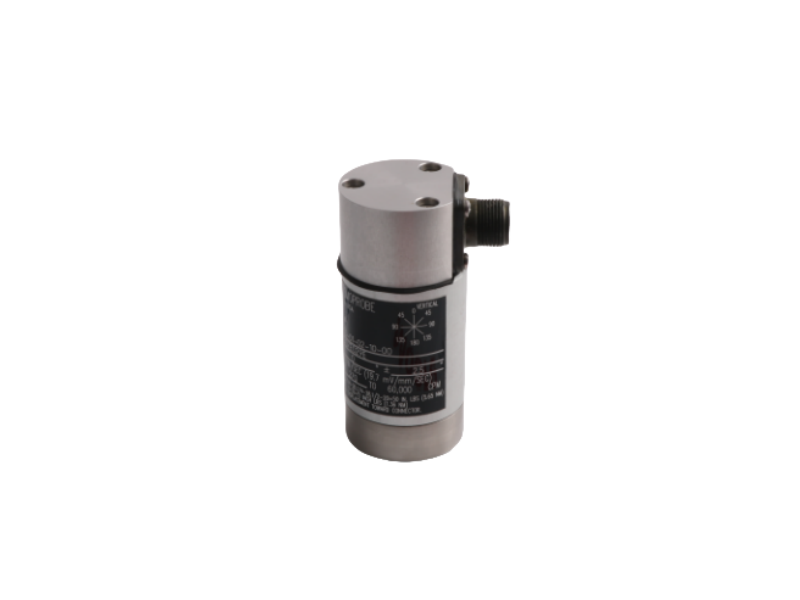

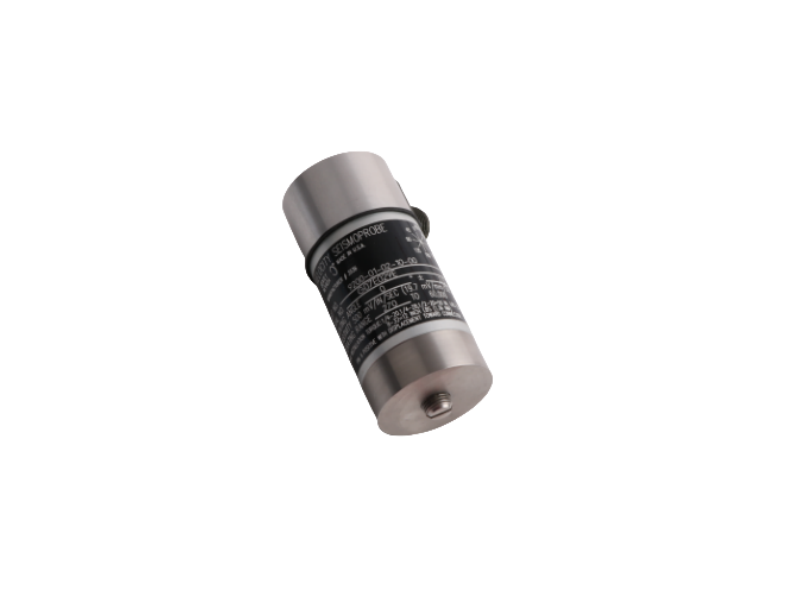

Model 9200-01-02-10-00 belongs to Bently Nevada '9200 Series Two-Wire Velocity Seismoprobe Transducer' - a two-wire velocity vibration sensor Seismoprobe. This sensor is used to measure the vibration velocity of rotating machinery (such as pumps, compressors, fans, motors) or equipment casings/bearing housings/casing. output a voltage signal (voltage output) proportional to the velocity (Velocity-proportional), which is convenient for connection to vibration monitoring systems, PLC/DCS/mechanical protection systems/analyzers for real-time monitoring, alarm or trend recording
|
Item |
Value |
|
Manufacturer: |
Bently Nevada |
|
Model (Part Number) |
9200-01-02-10-00 |
|
Type: |
Two-Wire Velocity Seismoprobe Transducer (Velocity Vibration Sensor) |
|
Sensitivity: |
20 mV/(mm/s) (i.e. 500 mV/in/s), ± 5% (under correct terminal/installation Angle and appropriate load conditions) |
|
Frequency Response: |
From the lowest operating frequency (depending on the installation options) to 1 kHz (i.e., 60,000 cpm), typically +0 / -3 dB |
|
Application scenarios |
|
Two-wire passive design + no external power supply required - saves wiring and installation costs, suitable for retrofit or on-site installation, and also convenient for portable testing or periodic inspection. |
|
High sensitivity and stable output - 20 mV/(mm/s) sensitivity + ±5% accuracy, coupled with stable output under standard load conditions, suitable for fine vibration monitoring and trend recording. |
|
Wide frequency response + full dynamic range - The frequency response covers from the lowest operating frequency to 1 kHz / 60,000 cpm, with a maximum displacement range of 2.54 mm, making it suitable for monitoring the vibration frequency and vibration level of most industrial machinery. |
|
Output standard voltage signal - easy for system integration - The output is velocity-proportional voltage, which can be directly connected to the monitoring system/analog input module/data acquisition system/PLC/DCS/vibration protection system, facilitating alarm, interlock and trend analysis. |
Why Choose Us
--Fast Delivery
In-stock products are shipped within 1–2 business days.
--Extensive Experience
With over 10 years of industry expertise, we understand your automation needs.
--Large Inventory
Thousands of parts in stock, covering multiple brands and overseas warehouses for global distribution.
--Quality Assurance
Every product is clearly inspected and backed by a 1-year warranty for guaranteed reliability.
What happens next?
BENTLY NEVADA / 3300 XL 25 MMSIDE-EXIT PROBE 330851-04-000-020-10-01-00 Eddy-current probe configured for differential-expansion measurement in steam-turbine TSI systems. RANGE12.7 mm OUTPUT SCALE0.787 V/mm TOTAL LENGTH1.0 m CASE1.06 in side exit CASE LENGTH2.0 in PROTECTIONSST armor APPROVALSNone
Details
3300 XL 8 mm · standard mount · without armor Confirm mechanical fit before requesting a quote A dimension-specific probe for non-contact static-position and dynamic-vibration measurement as part of a complete 3300 XL 8 mm system. Thread3/8-24 UNF Geometry3.7 / 5.7 in Lead1.0 m ClickLoc ApprovalOption 05 Fast check: verify thread, insertion depth, total system length and site approvals.
Details
Mechanical selection record Built around a 3.9 in exposed section Standard-mount 3300 XL 8 mm probe with a compact 4.7 in case, 1.0 m standard lead and ClickLoc connection. 3/8-24 UNF3.9 / 4.7 in1.0 mOption 05
Details
Long-case configuration · exact order-code check 330101-02-78-05-02-00 Standard-mount 3300 XL 8 mm probe with a 7.8 in overall case, 0.2 in unthreaded tip section and 0.5 m standard ClickLoc cable. THREAD3/8-24 UNF CASE7.8 in LEAD0.5 m ClickLoc APPROVALOption 00 ✓ Brand new original◆ One Year Warranty✈ Worldwide shipping Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
Precision selection card · approval option 05 330101-01-29-10-01-05 A compact 2.9 in standard-mount case with a 0.1 in unthreaded section, 1.0 m standard cable and factory connector protector. MOUNT3/8-24 UNF CASE2.9 in SYSTEM LEAD1.0 m Buyer check: confirm the 0.1 in tip geometry and option-05 site approvals. ● In Stock◆ Best Price✦ 24/7 Service Sales Manager May · ab@mooreplc.com · WhatsApp +86-18106909650
Details
BENTLY NEVADA 3300 XL SERIES 3300 XL 8 mm Proximity Probe 330101-01-39-10-01-05 Standard-mount probe with protected ClickLoc connector for a complete 3300 XL 8 mm transducer system. ● Configuration verifiedCSA · ATEX · IECEx Request QuoteContact Sales
Details
BENTLY NEVADA3300 XL 25 MM SYSTEM High-Temperature FluidLoc Extension Cable 330854-040-24-00 A 4.0 m, non-armored high-temperature FluidLoc extension cable for the complete 3300 XL 25 mm proximity transducer system. 4.0 mLENGTH FluidLocCABLE Option 00APPROVAL Request QuoteWhatsApp May
Details
BENTLY NEVADAMULTIPLE APPROVALS · OPTION 05 330854-040-24-05 4.0 m non-armored high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm transducer system. 4.0 m cableHigh temperatureMultiple approvals Request QuoteWhatsApp May
