Description:76683-50 — industrial transducer system for accurate vibration and velocity measurement in rotating machinery monitoring.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 76683-50 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

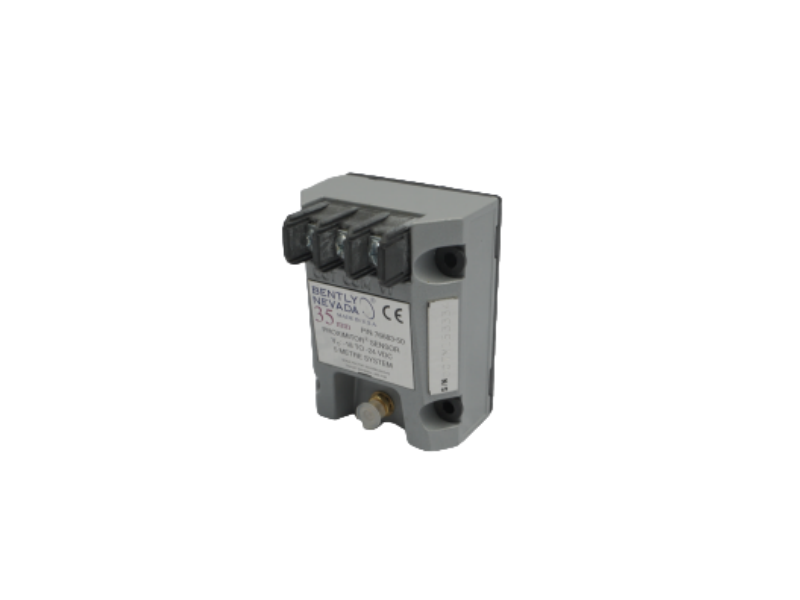

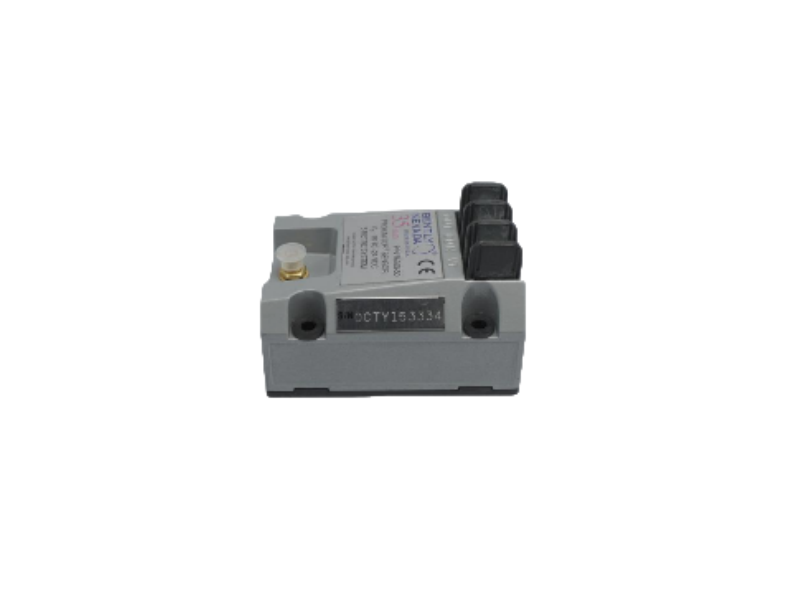

76683-50 is one of the 35 mm Proximitor/Proximity Sensor products of Bently Nevada. Designed for non-contact and precise measurement of shafts, casings or mechanical components in industrial environments (such as displacement, clearance, differential expansion/clearance monitoring, etc.). Its structure, signal output and compatibility make it suitable for the condition monitoring and protection systems of large turbines, generators, compressors, pumps and other rotating machinery.
Key Features
Non-contact proximity measuring reduces wear/mechanical interference and is suitable for long-term monitoring and industrial use.
Classic 35 mm Proximitor structure - can be used in combination with standard 35 mm proximity probe + extension cable.
Output impedance 50 Ω, compatible with standard monitoring/acquisition systems.
The specified linear range and range are suitable for monitoring the clearance between the shaft and the housing, shaft offset, differential expansion, etc.
The robust and durable mechanical structure and environmentally resistant design make it suitable for applications in industrial sites with requirements such as high temperature, vibration, humidity, and dust.
Ø High channel count and flexible expansion - Supports multiple input/output channels, saves rack space, and is suitable for large-scale systems or future expansion requirements
Ø Analog + digital hybrid capability - Supports both analog and digital signals simultaneously, with a wide range of applications and flexible system design
Ø Strong compatibility - Suitable for integration with Honeywell DCS/PLC systems, simplifying system integration/expansion work
Ø Convenient for maintenance and expansion - The plug-in module design makes it easy to replace and increase I/O points, suitable for system upgrades and spare parts management
|
Parameter |
Value |
|
Part Number/model: |
76683-50 |
|
Product Type: |
35mm Proximitor/Proximity Sensor/Transducer System |
|
Operating Principle: |
Proximity (non-contact) measuring via eddy - current |
|
Compatible Input: |
Accepts 35 mm series non-contact proximity probe + extension |
|
Application field/Applications |
|
differential expansion monitoring of the shaft-housing of large turbines (steam/gas turbines), especially suitable for situations where the temperature at the probe installation site is high and the measurement range requirement is > 4 mm. |
|
The measurement of shaft displacement/clearance and the monitoring of rotor-casing clearance for equipment such as generators, compressors, pumps, and heavy rotating machinery play a significant role in preventing axial offset, excessive displacement, and abnormal vibration. |
|
Industrial condition monitoring, machinery protection, predictive maintenance - providing reliable data through non-contact and precise measurement. |
|
System Retro-FIT/Equipment Upgrade/Field Expansion - suitable for occasions where it is necessary to extend the probe cable, replace the old sensor, or add detection points. |
