Description:3500/62 163179-03 — variable monitor module for real-time vibration monitoring and machinery protection in Bently Nevada 3500 series systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/62 163179-03 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller|20 Years of Excellence in Industrial Automation Parts Supply
3500/62 163179-03 |Variable Monitor
Sales Manager May
E-mail: ab@mooreplc.com
Phone: +86-18106909650 (whatsapp)
Wechat id: dcsfcs

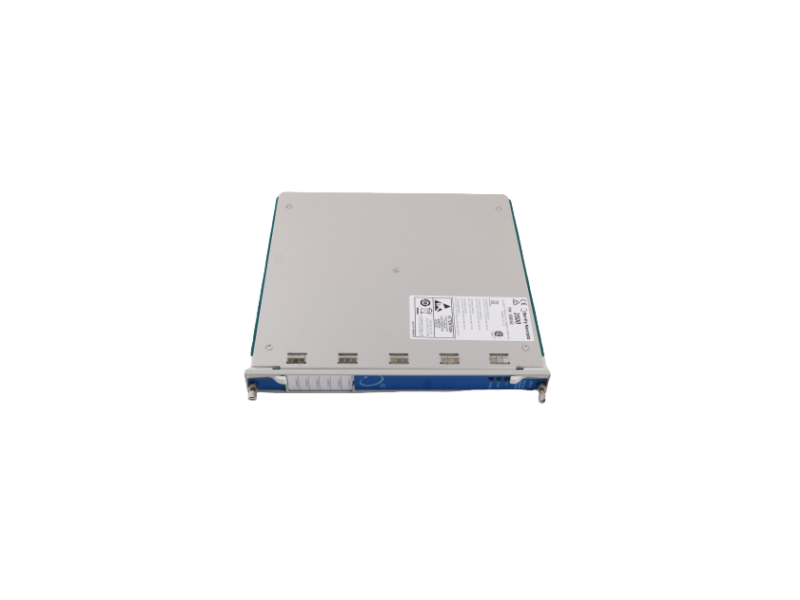

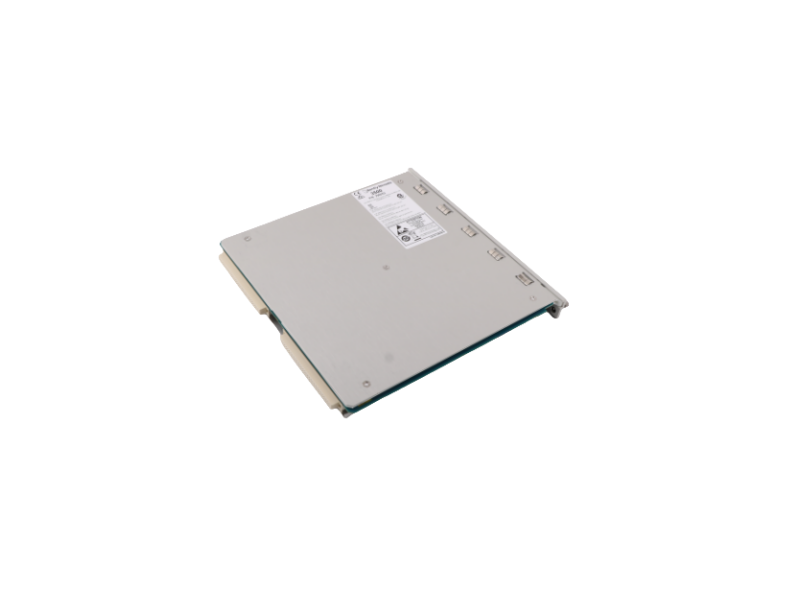

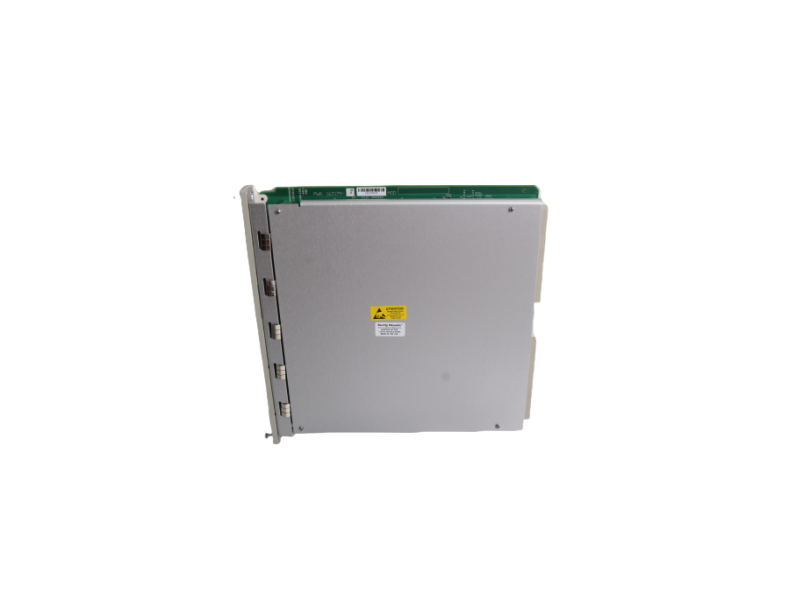

163179-03 is the 3500/62 six-channel Process-Variable Monitor (PVM) for Bently Nevada’s 3500 machinery-protection suite.
It accepts any mix of ±10 V or 4-20 mA signals from transmitters measuring temperature, pressure, flow, level, load, etc., compares them to user-programmable alarm set-points and supplies real-time data to the 3500 rack for display, relay actuation and DCS/SCADA export.The card is hot-swappable, SIL 2 capable and certified for Zone 2 hazardous areas.
|
Parameter |
Value |
|
Part number |
163179-03 |
|
Channels |
6, universal, isolated or non-isolated |
|
Input types |
±10 V dc (-10…+10 V) or 4-20 mA (sink/source) |
|
Accuracy |
±0.25 % of full scale |
|
Resolution |
0.1 % of full scale |
|
Update rate |
1 Hz per channel (typ.) |
|
Alarm set-points |
2 danger + 2 alert per channel, fully programmable |
|
Relay outputs |
Rack relays driven via 3500/32 or 3500/34 |
|
Analog output |
4-20 mA buffered output per channel (optional) |
|
Communications |
3500 back-plane (TCP/IP via 3500/92) |
Key Advantages
Universal inputs – mix RTD, T/C, pressure, flow or custom 4-20 mA/±10 V transmitters on the same card.
SIL 2 capable – meets IEC 61508 for safety-related loops when used with 3500/32 relay module.
Hot-swappable – replace or add cards without shutting down the rack.
Zone 2 certified – optional ATEX/CSA approval for oil & gas, chemical and marine plants.
Built-in diagnostics – open/short sensor detection, loop-break monitoring and channel-health LEDs.
Seamless integration – alarm status, live values and trend data automatically available in System 1® software and third-party DCS via Modbus/TCP or OPC.
