Description:3500/61 136711-02 — temperature monitor module for reliable thermal measurement and machinery protection in Bently Nevada 3500 series systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/61 136711-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
3500/61 136711-02 | temperature monitor
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs

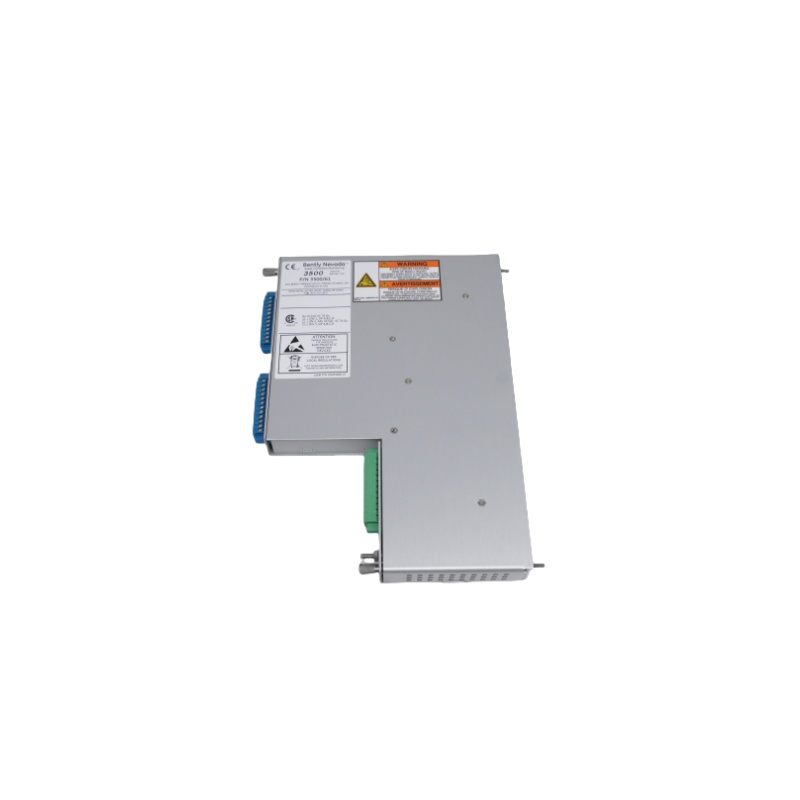

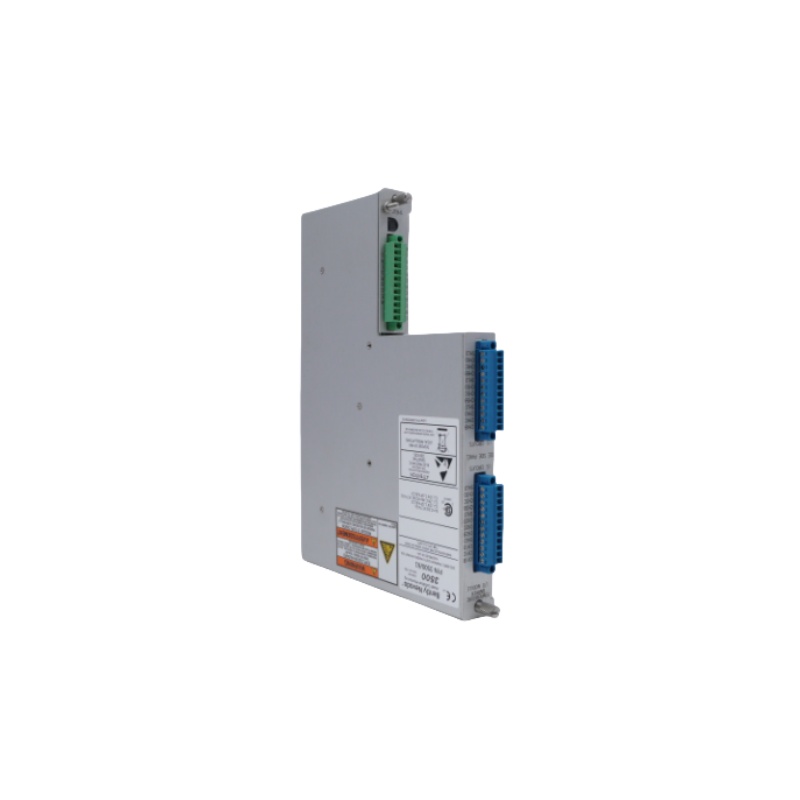

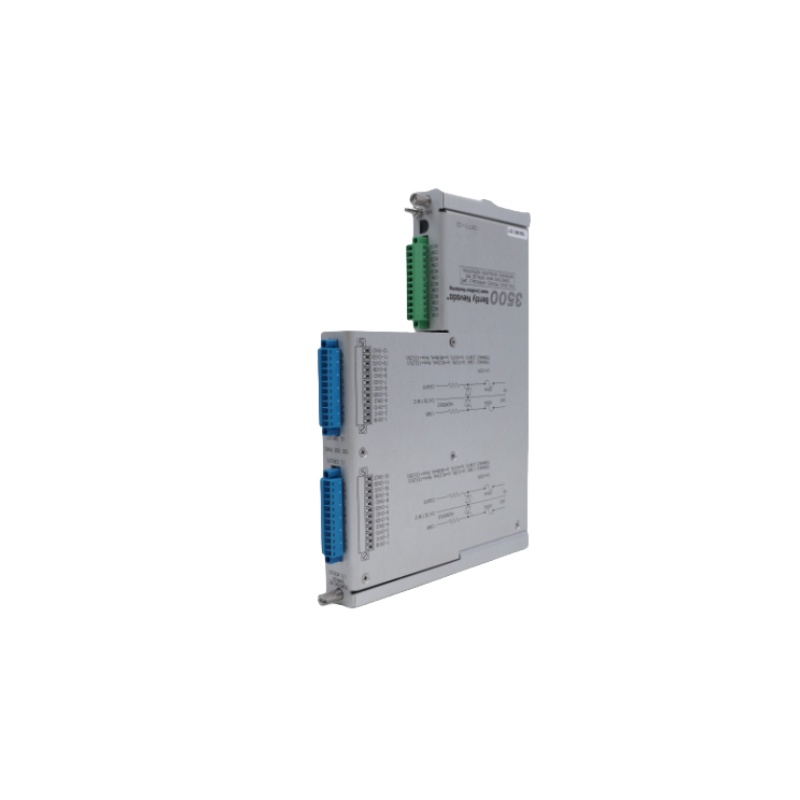

136711-02 is the I/O module that mates with the 3500/61 temperature monitor front card (163179-02).
It provides six universal temperature channels with built-in intrinsic-safety barriers and on-board screw terminals, allowing direct connection of RTD or thermocouple sensors in hazardous-area Zone 2 installations without external barriers.
The module is hot-swappable, SIL 2 capable and fully compatible with TMR (Triple Modular Redundant) 3500 racks.
Key Specifications
|
Feature |
Value |
|
Part number |
136711-02 |
|
Channels |
6, non-isolated, share common ground |
|
Sensor types |
2-, 3-, 4-wire RTD (Pt100, Pt1000, Cu10, Ni120) |
|
Thermocouple |
J, K, T, E, N, R, S, B |
|
Intrinsic safety |
Internal barriers per control drawing 138547 |
|
Hazardous-area rating |
ATEX / IECEx Ex nA nC ic [ia Ga] IIC T4 Gc |
|
Temperature span |
–200 °C … +850 °C (RTD) / –270 °C … +1 820 °C (TC) |
|
Accuracy |
±1 °C typical (RTD) / ±2 °C (TC) |
|
Resolution |
0.1 °C |
|
Update rate |
100 ms per channel |
|
Terminations |
Internal screw-clamp terminals |
Key Advantages
Ø Built-in barriers – eliminates external IS isolators; saves panel space & wiring.
Ø Internal terminations – direct sensor landing on module; no extra terminal strips.
Ø Universal inputs – software-selectable RTD or TC per channel.
Ø Hot-swap – replace module in < 2 min without rack shutdown.
Ø TMR ready – install three identical modules side-by-side for dual-voting SIL 2 loops.
Ø Plug-and-play – auto-recognized by 3500 Rack Configuration Software.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
