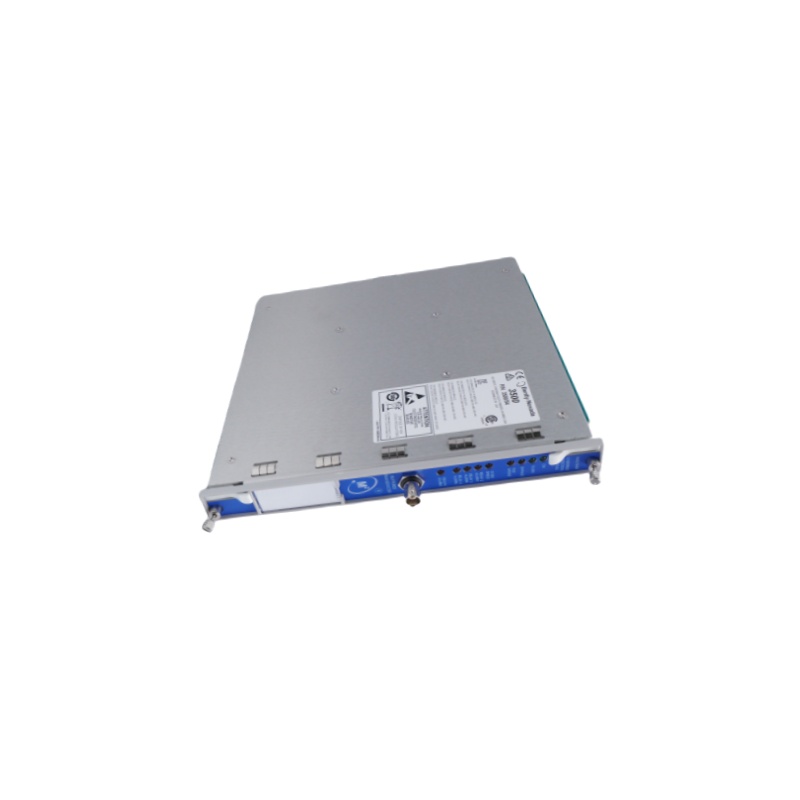

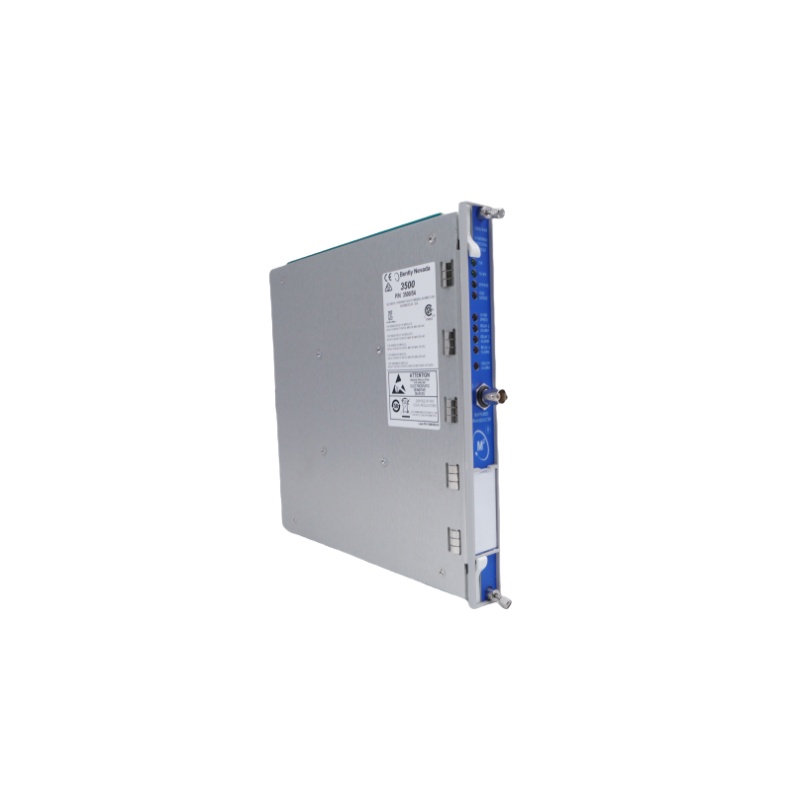

Description:3500/54M 286566-01 — overspeed detection module for fast and reliable rotational speed monitoring and machinery protection in Bently Nevada 3500 series systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/54M 286566-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
3500/54M 286566-01 |vibration monitoring
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
286566-01 is the 2-channel tachometer / overspeed card for the 3500 rack.
It measures shaft speed, rotor acceleration, zero-speed or reverse rotation from 1× Keyphasor® or magnetic-pick-up signals and compares the result to user-defined overspeed (and speed-band) limits.
The module can be deployed in 2-out-of-2 or 2-out-of-3 voting to satisfy API 612 overspeed-protection requirements.
Main Technical Parameters
|
Feature |
Value |
|
Part number |
286566-01 (3500/54M) |
|
Channels |
2, independent |
|
Input type |
Proximity probe or MPU |
|
Freq. range |
0.05 Hz – 50 kHz (works down to 1 rpm) |
|
Speed accuracy |
±0.02 % of reading |
|
Overspeed set-points |
4 per channel (Alert / Danger, latching or auto-reset) |
|
Response time |
< 40 ms (typ.) to Danger relay |
|
Peak-hold |
Max speed, max reverse speed, # of reversals |
|
Keyphasor® output |
Conditioned 1× pulse to 3500 back-plane |
|
Input impedance |
20 kΩ |
Product advantages
Ø Support for multiple thermocouple types - Compatible with various thermocouples, adapting to different temperature measurement requirements and temperature ranges.
Ø Multi-channel input - 8-channel input design, suitable for monitoring multiple points or multiple groups of temperature sensors, facilitating centralized management.
Ø Modular structure - Compatible with the original system of Bently Nevada, facilitating integration and replacement.
Ø Stable and reliable - Specifically designed for industrial automation/control systems, suitable for long-term online monitoring and control.
Ø Suitable for process control and safety systems - industrial processes that are sensitive to temperature or have high temperature control requirements (such as boilers, reactors, and chemical plants) are more applicable.
