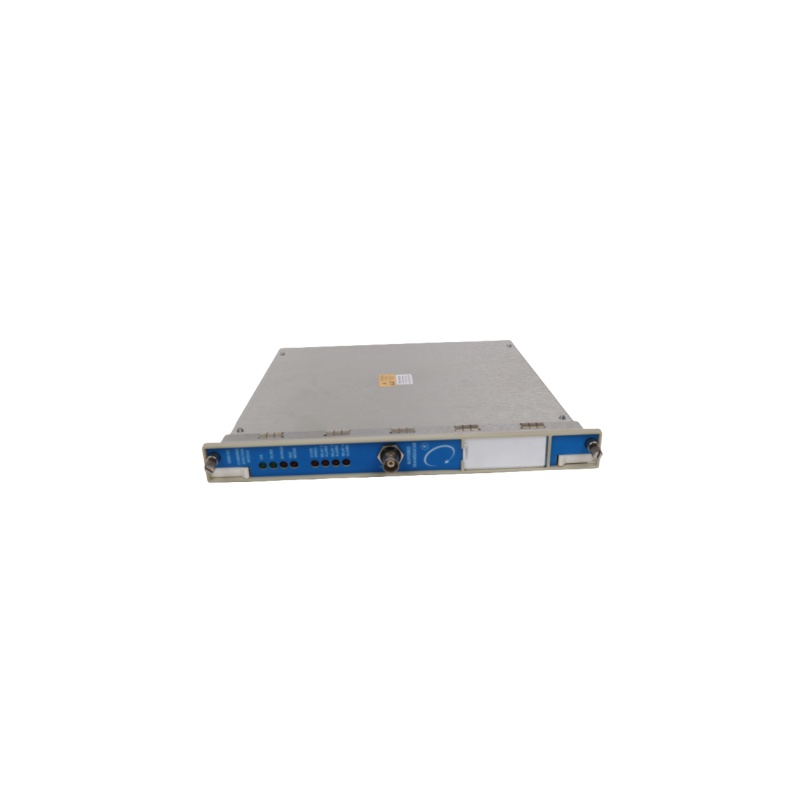

Description:3500/53 133388-01 — overspeed detection suite for comprehensive rotational speed monitoring and machinery protection in Bently Nevada 3500 series systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/53 133388-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller |20 years of experience specializing in automation equipment
3500/53 133388-01| overspeed-detection suite
PLC Autocontroller| Sales Manager May| Wechat id: dcsfcs
Overview
133388-01 is the front-card of the 3500/53 overspeed-detection suite.
Each card provides two independent tachometer channels that accept Keyphasor® or magnetic-pick-up signals, measure speed from 0 – 100 000 rpm (±0.1 % accuracy) and compare the result to user-programmable overspeed limits.
Up to three cards can be installed in one rack to build 2-out-of-3 voted overspeed protection that satisfies API 612.
Core Specifications
|
Feature |
Value |
|
Part number |
133388-01 (3500/53) |
|
Channels |
2, fully independent |
|
Input type |
Proximity probe or passive MPU |
|
Speed range |
0 – 100 000 rpm |
|
Accuracy |
±0.1 % of reading |
|
Response time |
< 1 ms to Danger relay |
|
Overspeed set-points |
4 per channel (Alert / Danger) |
|
Peak-hold |
Max speed, max reverse speed |
|
Keyphasor output |
Conditioned 1× pulse to 3500 back-plane |
|
Input range |
+10 V … –24 V (internally clamped) |
|
Input impedance |
20 kΩ |
Protection & voting modes
Overspeed – single set-point (API 612)
Speed-band – window alarming (e.g. idle / rated)
Acceleration – rate-of-change limit (rpm/s)
Zero-speed – stand-still confirmation
Reverse rotation – direction change alarm
Peak-hold – stores maxima until reset via software or DI
Why use it
API 670 / 612 compliant – meets petro-chemical and power-industry overspeed rules.
Sub-millisecond response – fast enough for steam-turbine trip relays.
2-out-of-3 voting – build SIL 2/3 protection without external logic.
Wide speed range – 1 rpm to 100 000 rpm with the same card.
Keyphasor sharing – eliminates a separate Keyphasor module in the rack.
Hot-swap – exchange in < 2 min while rack remains powered.
