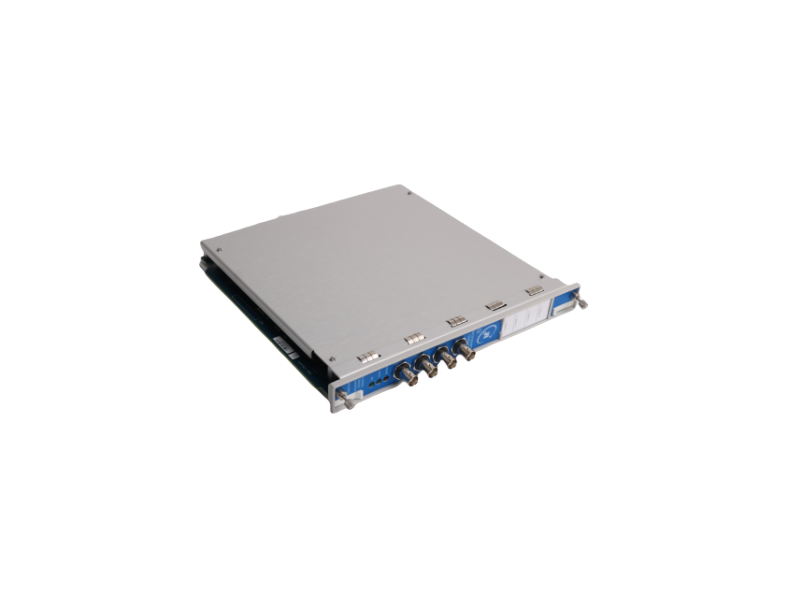

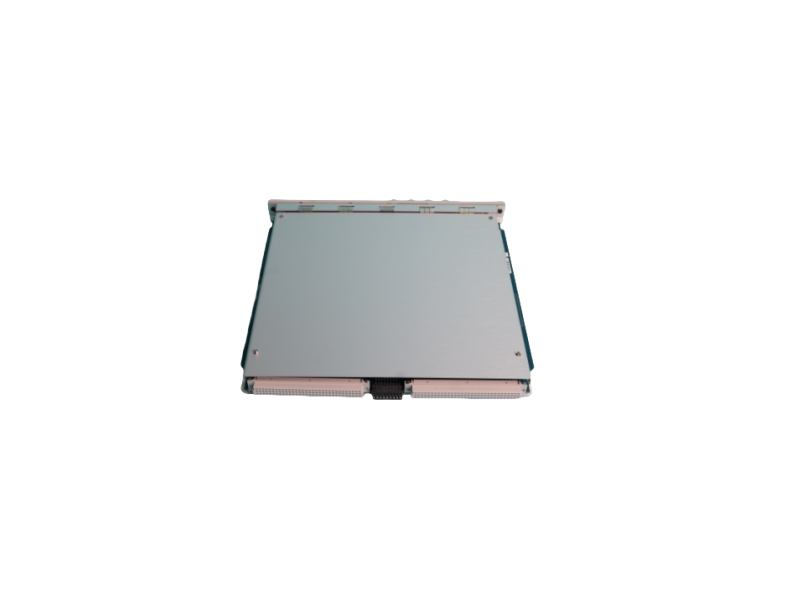

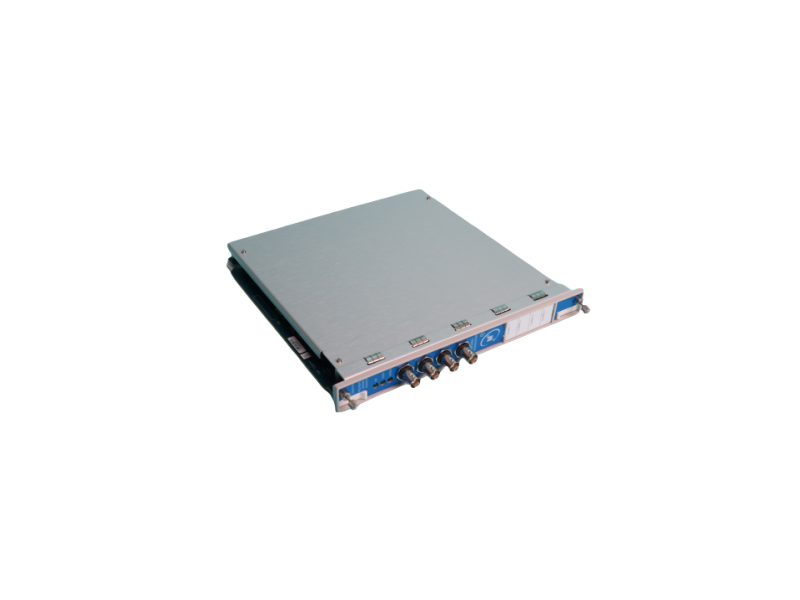

Description:3500/42M 176449‑02 — 4‑channel Proximitor/Seismic monitor module for continuous vibration & position monitoring in Bently Nevada 3500 machinery protection systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/42M 176449-02 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | Spare Parts Speed 20 Years
Sales Manager May | Email: ab@mooreplc.com | Tel: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Ø Product Overview
The Bently Nevada 3500/42M 176449-02 is a four-channel Proximitor Monitor that continuously guards critical rotating machinery.
It accepts signals from eddy-current proximity probes, Velomitor® piezo-velocity sensors and accelerometers, then delivers high-resolution radial vibration, axial position, speed or acceleration data to the 3500 machinery protection system.
SIL 2 capable, hot-swappable and API 670 compliant, the 176449-02 module is the first line of defence for turbines, compressors, pumps, fans and gear-boxes in oil & gas, power, chemical and steel plants.
Spec-Snapshot Table
|
Item |
Specification |
|
Model |
3500/42M 176449-02 |
|
Channels |
4, independently programmable |
|
Input types |
Eddy-current, Velomitor®, piezo accel., magnetic pickup |
|
Frequency range |
0.5 Hz – 20 kHz (user selectable) |
|
Sample rate |
10 kHz per channel max. (1.25 kHz selectable) |
|
Amplitude range |
0-25 mm/s vel.; 0-10 g accel.; 0-20 mm pk-pk vib. |
|
Accuracy |
±0.33 % full scale (typ.) |
|
Analog outputs |
Isolated 4-20 mA per channel, 0-600 Ω load |
|
Buffered outputs |
Raw transducer signals for DCS or portable analyser |
|
Relays |
Via 3500/32 or /33 modules (six Form-C, SIL rated) |
|
Update rate |
1 ms (vibration); 10 ms (position) |
|
Industry |
Asset |
Critical Measurements |
|
Oil & Gas |
Centrifugal & reciprocating compressors, pumps |
Radial vibration, thrust position |
|
Power Gen. |
Steam, gas & hydro turbines, boiler feed pumps |
Shaft vibration, eccentricity, speed |
|
Petrochemical |
Turbo-expanders, fans, extruders |
Casing vibration, acceleration |
|
Steel & Mining |
Blast-furnace blowers, rolling-mill motors |
Gear-box vibration, motor speed |
|
Pulp & Paper |
Dryer cans, refiners, vacuum pumps |
Bearing vibration, axial float |
|
Marine |
Naval propulsion, ferry gas turbines |
Shock-rated vibration monitoring |
