Description:3500/33 149986‑01 — 16‑channel relay output module for comprehensive alarm and trip signaling in Bently Nevada 3500 series machinery protection systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/33 149986-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Automation Controller | 20 Years of Industrial Automation Supply Experience

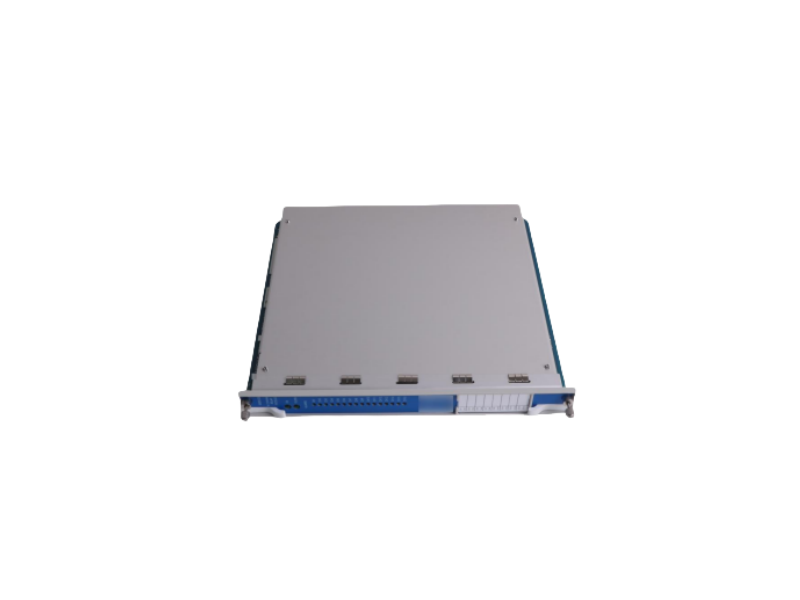

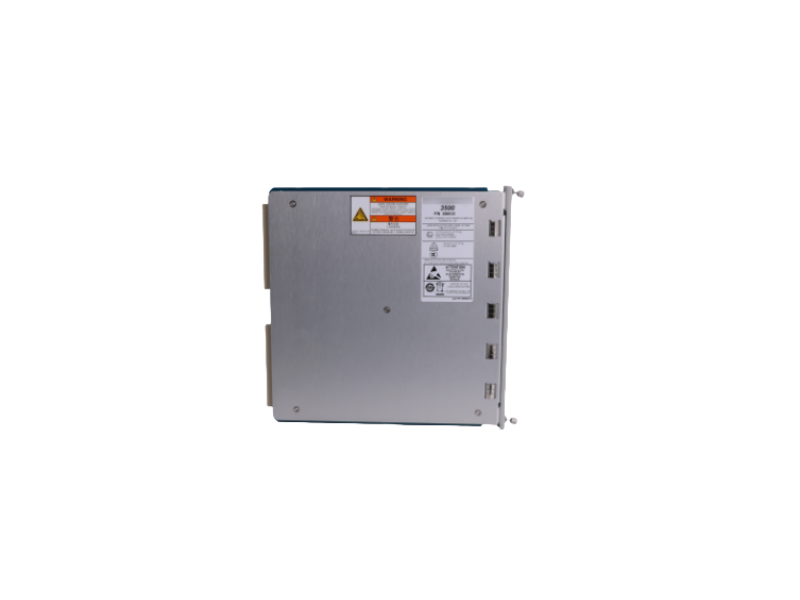

BENTLY NEVADA |3500/33 149986-01 | 16-channel relay module
What it is
The 3500/33 149986-01 is a full-height, 16-channel relay module that plugs directly into any 3500 rack.
Each SPDT contact is driven by configurable AND/OR alarm logic, converting vibration, thrust, temperature or speed alarms from any 3500 monitor into isolated control signals for plant safety systems, DCS/PLC interlocks, annunciators or machine trip circuits. The module is hot-swappable and SIL-rated, providing the final “execute” layer of Bently Nevada’s API 670-compliant machinery protection suite.
Technical Specifications
|
Parameter |
Specification |
|
Channels |
16, individually programmable |
|
Contact type |
SPDT (Form C) |
|
Contact rating |
2 A @ 24 VDC / 24 VAC; 5 A @ 250 VAC resistive |
|
Operate time |
< 8 ms (pick-up) |
|
Release time |
< 4 ms (drop-out) |
|
Isolation |
1 500 Vrms channel-to-ground & channel-to-channel |
|
Logic functions |
AND, OR, voting, latching, inversion per relay |
|
LED indicators |
16 red/green LEDs (relay state & coil health) |
|
Back-plane power |
24 VDC via 3500 rack, 0.3 W per relay (4.8 W max) |
· Key Benefits
Ø High-density tripping – 16 independent relays in one slot cuts panel space and wiring by 50 %.
Ø SIL 2 / API 670 logic – certified for safety-critical machine trip circuits and plant interlocks.
Ø Sub-10 ms response – fastest pick-up time in class for turbo-machinery overspeed or thrust-trip protection.
Ø Flexible alarm math – combine any monitor channel with AND/OR voting to eliminate false trips during start-up.
Ø Hot-swap maintenance – front LEDs show relay and coil health; swap modules on-line without rack power-down.
Ø Multi-voltage contacts – same relay drives 24 VDC solenoids, 120 VAC annunciators or 250 VAC motor contactors.
Ø Hardened for extremes – conformal coating and –20 °C rating suit offshore, desert and arctic installations.
Applications
Gas & steam turbines – machine trip, fire-fuel shut-off and emergency lube-oil start on overspeed or high thrust.
Centrifugal compressors – antisurge valve open and motor shutdown on high vibration or low flow.
Generators – field-breaker trip and exciter disable on rotor eccentricity or stator temperature alarm.
Refinery pumps – process isolation and spare-pump start on bearing temperature or seal failure.
Fans & blowers – damper close and motor coast-down on blade-pass vibration or motor overload.
Test cells & rigs – activate dynamometer brake and alarm horn when any monitored parameter exceeds SIL limits.
|
PLC Automation Controller-20 years of experience in sales automation |
|
|
Brand new original |
One Year Warranty |
|
Integrity supply |
best price |
|
Fast Delivery |
In Stock/A large number of stocks |
|
Top Quality |
24/7Service |
PLC Autocontroller keeps the 3500/33 149986-01 in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
