Description:3500/32 125712‑01 — 4‑channel relay output module for alarm and trip signaling in Bently Nevada 3500 series machinery protection systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/32 125712-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
3500/32 125712-01 | 4-channel relay module
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
3500/32 125712-01 is4-channel relay module

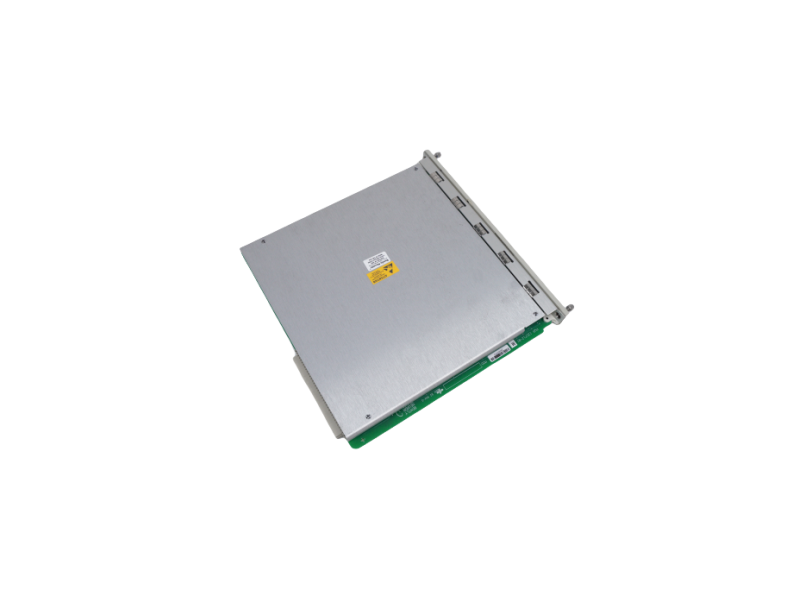

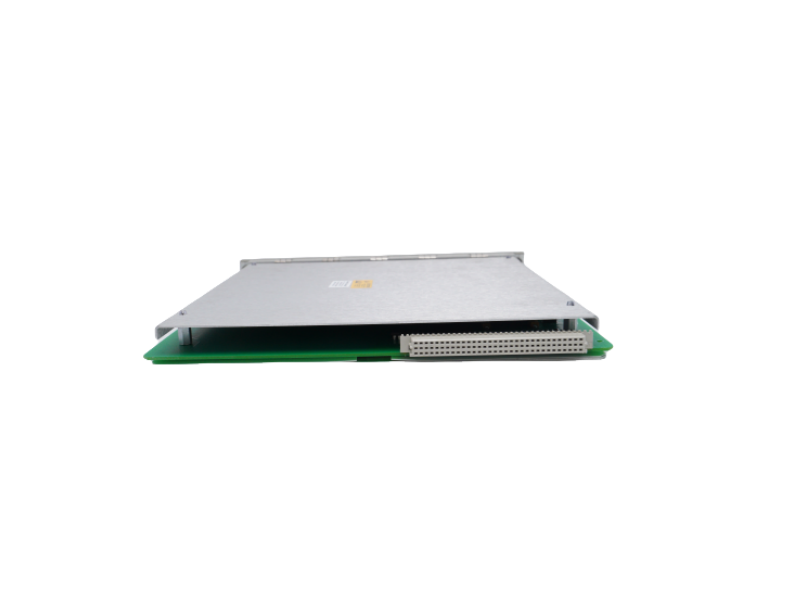

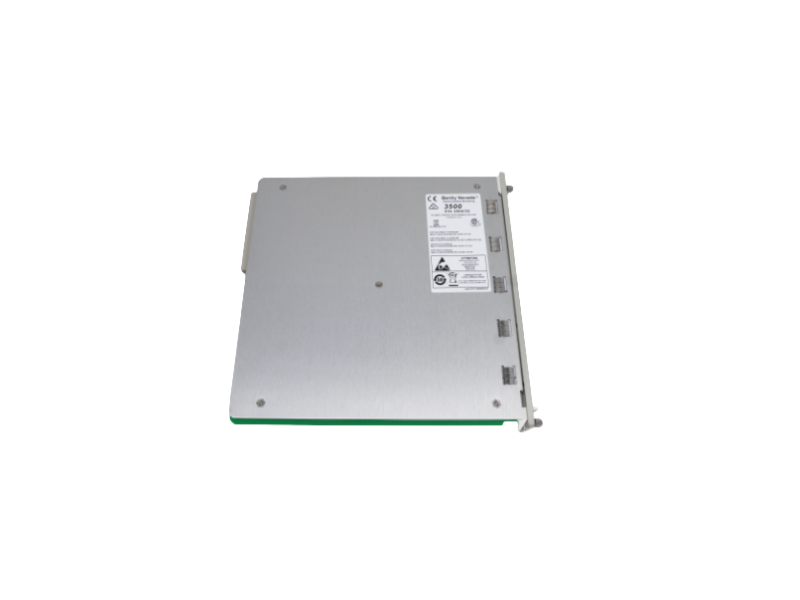

The 3500/32 125712-01 is a full-height, 4-channel relay module that installs in any 3500-series rack.
Each channel is built from two epoxy-sealed SPDT relays wired as a single DPDT output, driven by user-programmable AND/OR alarm logic. It converts Alert, Danger or Not-OK signals from any 3500 monitor into galvanically-isolated contact closures for plant safety systems, DCS/PLC interlocks or machine trip circuits. The module is hot-swappable and rated for SIL 2 machinery-protection applications.
Main Technical Parameters
|
Parameter |
Specification |
|
Channels |
4, independently programmable |
|
Contact arrangement |
2 × SPDT per channel (DPDT equivalent) |
|
Contact rating |
5 A @ 250 VAC / 30 VDC resistive |
|
Operate / release time |
8 ms / 4 ms typical |
|
Isolation |
1 500 Vrms channel-to-ground & channel-to-channel |
|
Alarm logic |
AND, OR, voting, latching, inversion per channel |
|
LED indicators |
4 red/green LEDs (relay state & coil health) |
|
Back-plane power |
24 VDC via 3500 rack, 5 W max |
|
Operating temp |
–40 °C to +85 °C |
|
Storage temp |
–55 °C to +100 °C |
Key Benefits
DPDT density – four equivalent DPDT relays in one slot save panel space and wiring.
SIL 2 / API 670 logic – certified for safety-critical machine trip circuits and plant interlocks.
Sub-10 ms response – 8 ms pick-up meets turbo-machinery overspeed or thrust-trip demands.
Hot-swap maintenance – front LEDs show relay and coil health; swap modules on-line without rack power-down.
Flexible alarm math – combine any monitor channel with AND/OR voting to eliminate false trips during start-up.
Multi-voltage contacts – same relay drives 24 VDC solenoids, 120 VAC annunciators or 250 VAC motor contactors.
Harsh-environment ready – conformal-coated PCB and –40 °C rating suit offshore, desert and arctic installations.
