Description:3500/25 149369‑01 — dual‑channel Keyphasor® reference signal module for precise shaft speed and phase reference detection in Bently Nevada 3500 series machinery protection systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/25 149369-01 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20-year spare part express
3500/25 149369-01 |dual-channel Keyphasor module
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Product Overview

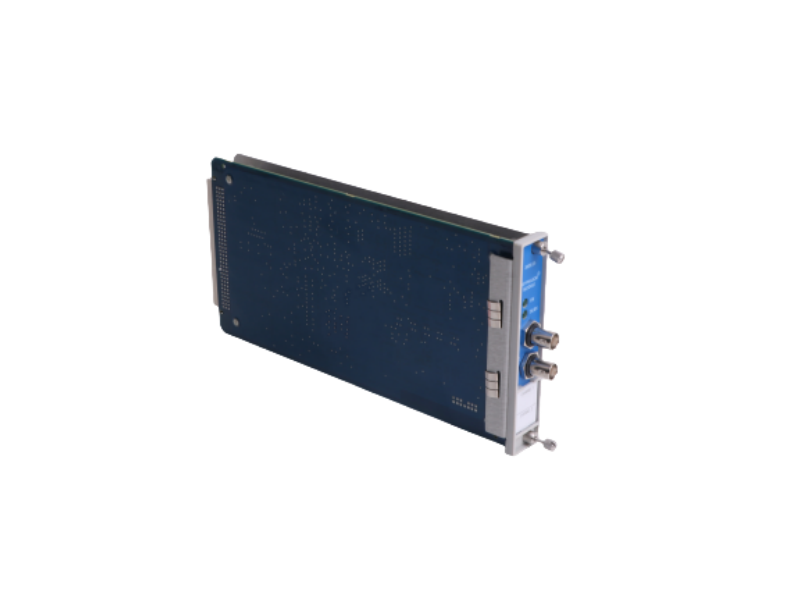

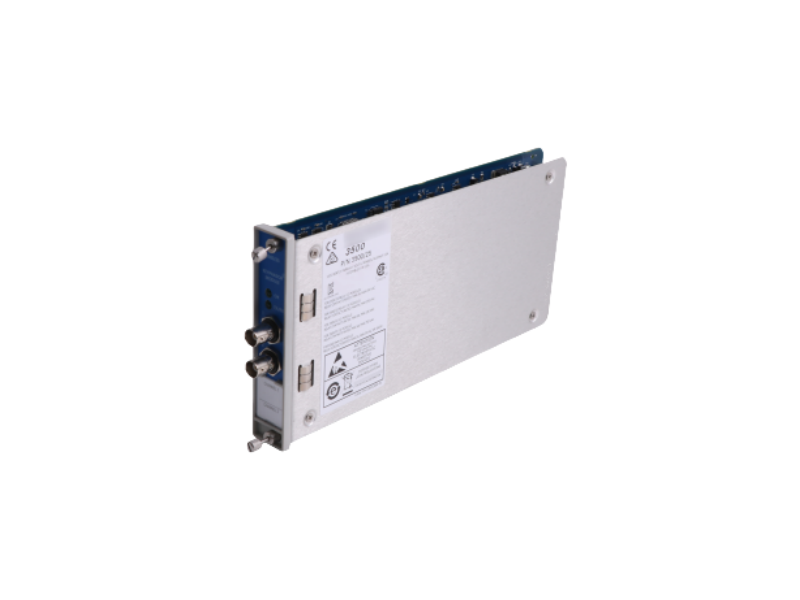

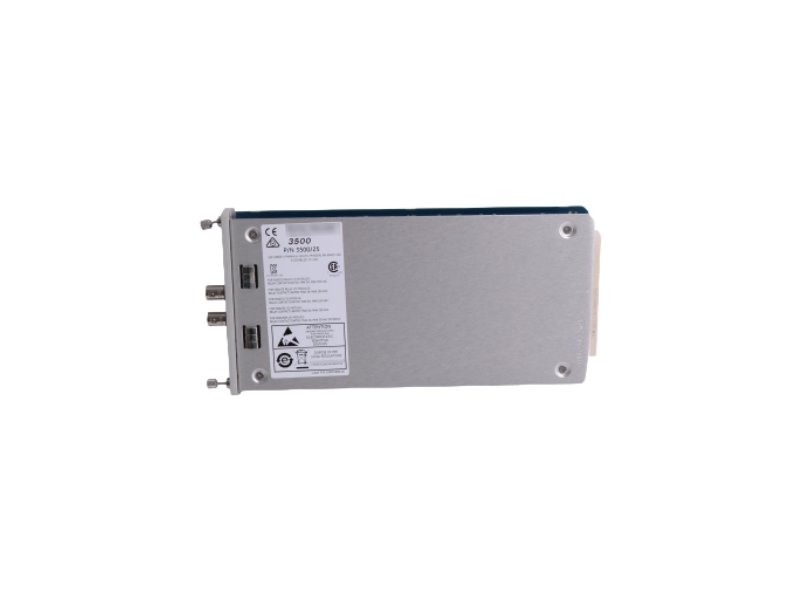

The 3500/25 149369-01 is a half-height, dual-channel Keyphasor module that installs in any 3500-series rack.
It accepts signals from eddy-current probes or magnetic pickups and converts each passing of a shaft key-way into a high-precision digital pulse. These pulses provide the speed reference and phase marker required for ordered vibration analysis, vector balancing, speed alarming and event timing throughout the 3500 system.
Key Specifications
|
Parameter |
Specification |
|
Channels |
2, independently configurable |
|
Input types |
proximity probe or magnetic pickup |
|
Input range |
21 V to +8 V DC (non-isolated) / 11 V to +5 V DC (isolated) |
|
Input impedance |
≥ 21.8 kΩ |
|
Frequency range |
0.1 Hz – 50 kHz |
|
Phase resolution |
0.1° |
|
Pulse width |
1 µs – 1 ms programmable |
|
Output |
TTL/CMOS key-phasor pulse to rack back-plane; buffered front-panel BNC |
|
Accuracy |
±0.05 % of reading |
|
Power |
24 VDC via back-plane, 3.2 W max |
|
Operating temp |
–40 °C to +70 °C |
|
Storage temp |
–55 °C to +85 °C |
Key Benefits
Ø Dual-channel density – two completely independent Keyphasor inputs in one half-slot save rack space.
Ø Sub-degree accuracy – 0.1° phase resolution enables high-precision vector balancing and order tracking.
Ø Wide speed range – 0.1 Hz to 50 kHz covers everything from slow-speed extruders to high-speed centrifuges.
Ø Auto-threshold & gain – adaptive circuitry maintains reliable triggering on worn or coated targets.
Ø Hot-swap & hot-spare – replace or switch modules on-line without shaft marking re-work.
Ø Seamless integration – pulse is automatically distributed to every 3500 monitor for speed-corrected alarms and FFT order analysis.
Ø Harsh-environment ready – –40 °C start-up and conformal-coated PCB for offshore and arctic duty.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
