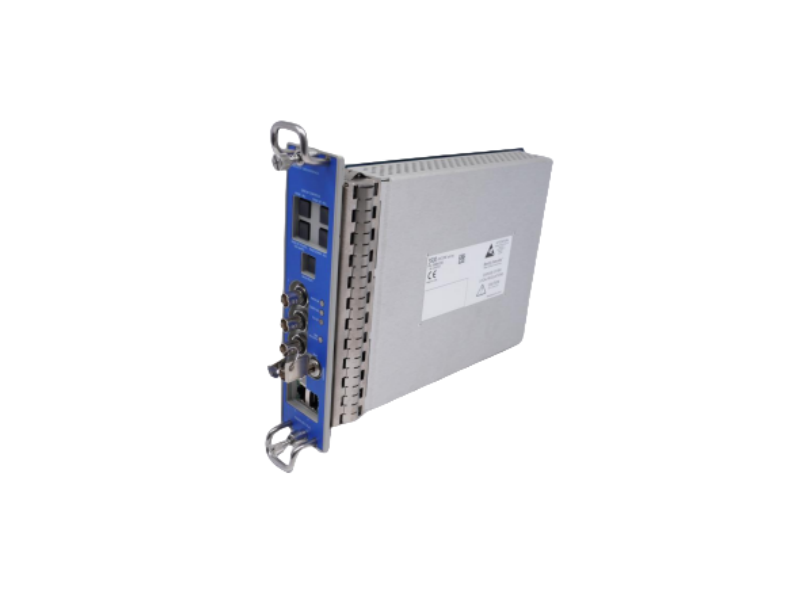

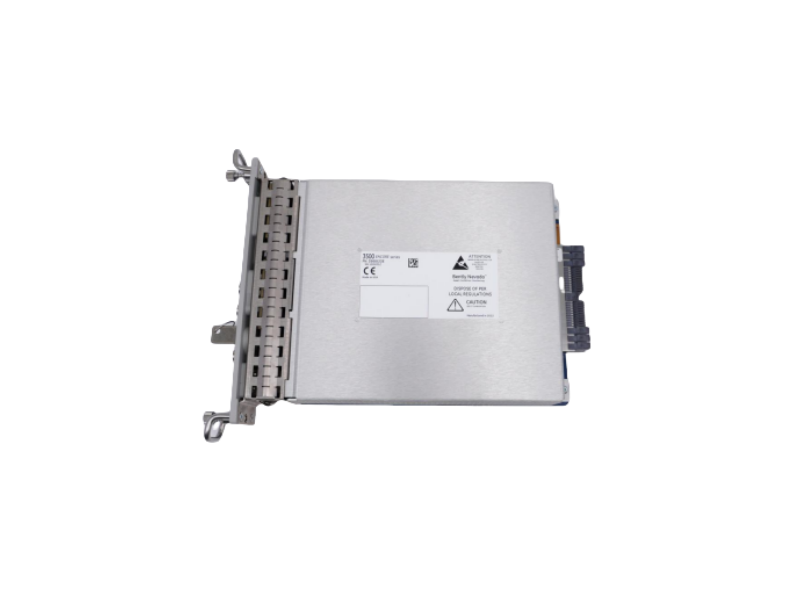

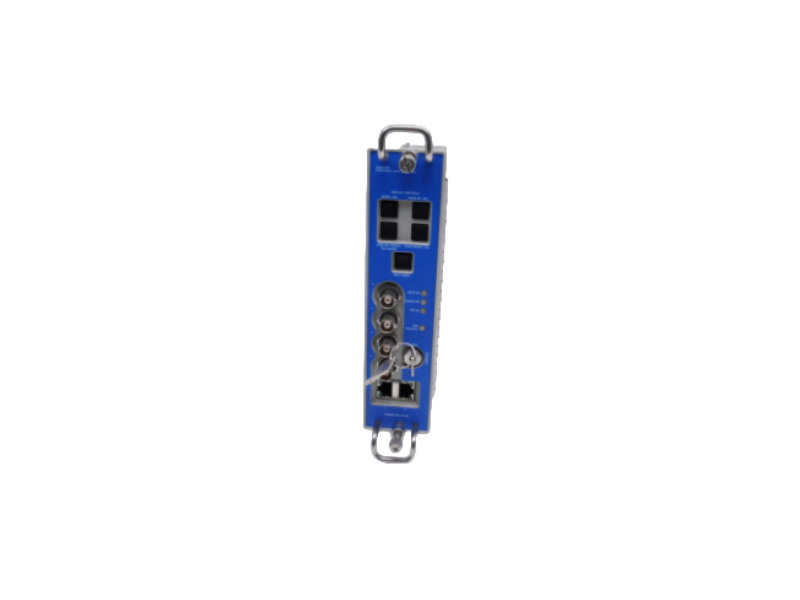

Description:3500/23E — multi‑channel transient‑data interface module for high‑speed acquisition and transfer of transient waveform data in Bently Nevada 3500 series machinery protection systems.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/23E |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller – 20-year spare-part express
Bently nevada |3500/23E | multi-channel transient-data interface
Product Overview
The 3500/23E is a high-speed, multi-channel transient-data interface that fits any 3500-series rack.
It captures rapid mechanical events—vibration spikes, shock, pressure or temperature excursions—at up to 100 kHz, then streams time-synchronized data to System 1®, DCS or PLC platforms via on-board Modbus-TCP, RS-485 or Ethernet. Packaged in a half-height slot, the module supplies power to IEPE/ICP® accelerometers, proximity probes or voltage sensors and converts raw transients into actionable machinery-health information for predictive-maintenance and SIL-rated protection systems.
Key Specifications
|
Parameter |
Specification |
|
Input channels |
8 differential or 16 single-ended, software-selectable |
|
Sampling rate |
100 kHz per channel, simultaneous |
|
Resolution |
16-bit ADC |
|
Input ranges |
±5 V, ±10 V, 0–10 V, IEPE 4 mA constant-current |
|
Frequency response |
0 Hz – 50 kHz (–3 dB) |
|
Accuracy |
±0.1 % full scale @ 25 °C |
|
Data buffer |
32 MByte circular per channel (≥ 5 min @ 10 kHz) |
|
Trigger modes |
level, slope, FFT band, alarm-in, manual, timed |
|
Time sync |
IRIG-B or PTP (IEEE-1588) ±1 ms |
|
Communication |
Modbus-TCP, Modbus-RTU, RS-485, 10/100 Ethernet |
|
Protocols |
OPC-UA, DNP3, IEC-61850 (optional) |
|
Power |
18 – 32 VDC via rack back-plane, 4.5 W typical |
|
Operating temp |
–40 °C to +85 °C |
Key Benefits
100 kHz streaming – capture bearing impacts, gear shock and blade-tip rubs that slower monitors miss.
16-bit fidelity – 0.1 % accuracy delivers laboratory-grade transient records for fault-root-cause analysis.
On-board circular buffer – store minutes of pre- and post-event data without external recorder hardware.
Multi-protocol gateway – Modbus, OPC-UA and IEC-61850 allow native integration to DCS, SCADA, System 1® or cloud dashboards.
PTP time sync – <1 ms accuracy aligns transient data with protection-system alarms and event logs.
Hot-swap & hot-spare – replace or upgrade modules on-line while maintaining full protection coverage.
Hardened for extremes – –40 °C start-up and conformal-coated PCB for offshore, desert and arctic duty.
