Description:3500/20 — rack interface module that provides power distribution and communication across Bently Nevada 3500 series protection system modules.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bently nevada |
| Item number | 3500/20 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller|20 Years of Excellence in Industrial Automation Parts Supply

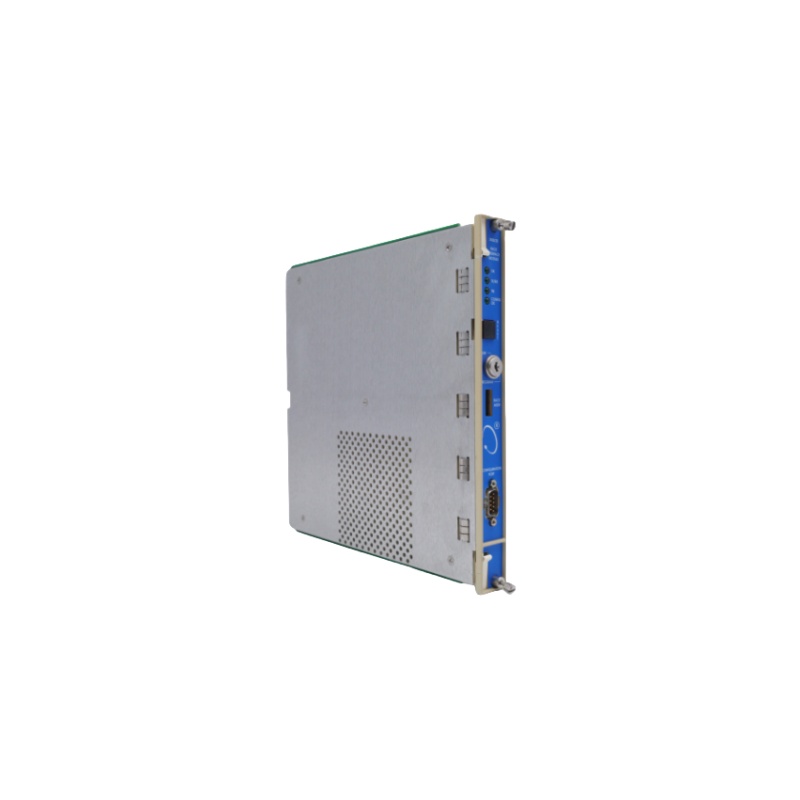

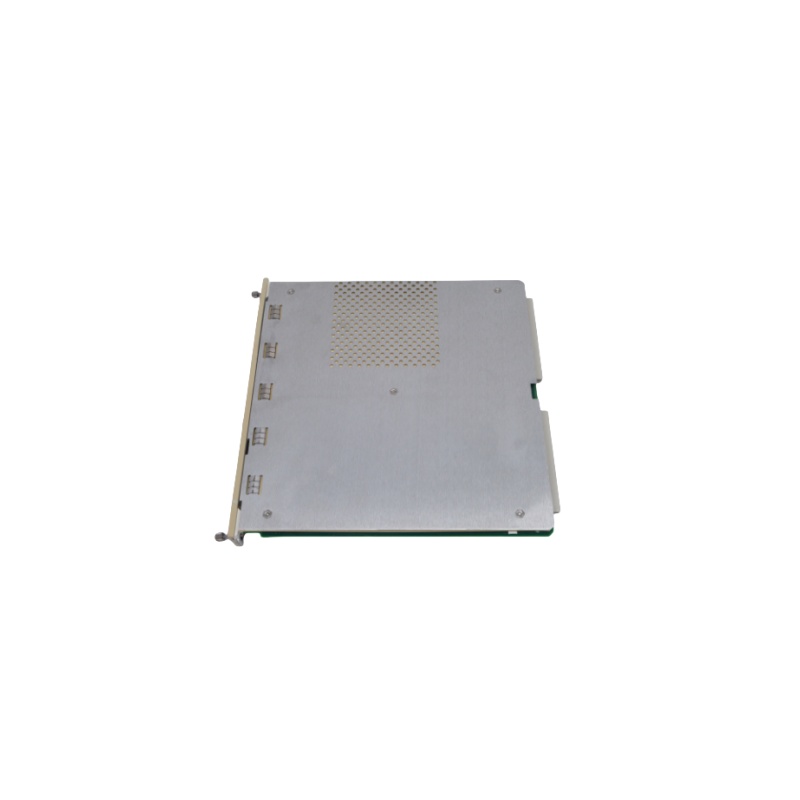

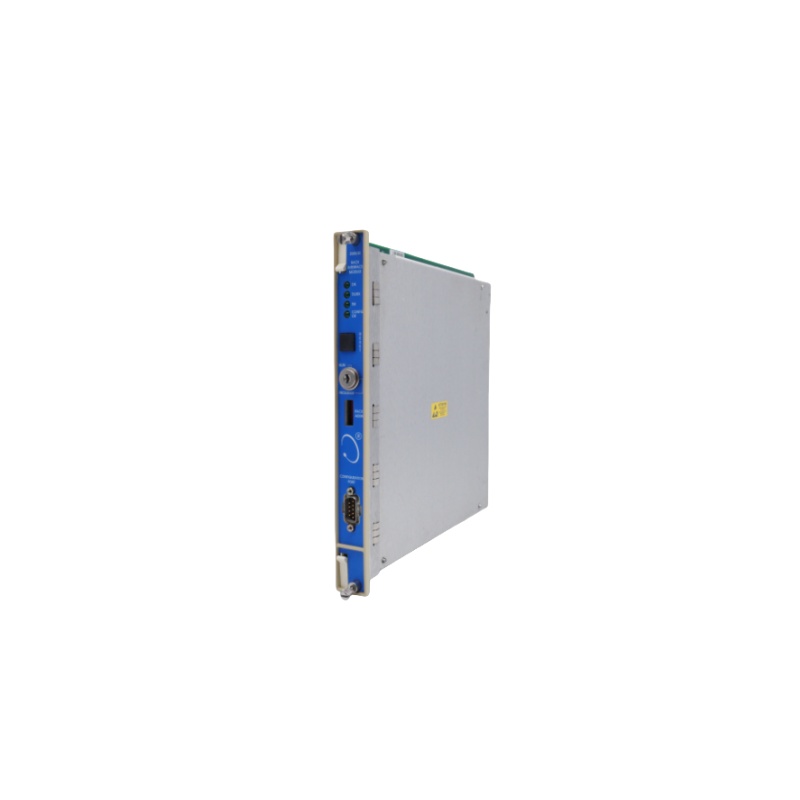

3500/20 |Rack Interface Module
Sales Manager May
E-mail: ab@mooreplc.com
Phone: +86-18106909650 (whatsapp)
Wechat id: dcsfcs
The 3500/20 is the mandatory Rack Interface Module for every Bently Nevada 3500-series rack.
Installed in Slot 1 (adjacent to the power supplies), it acts as the central communication gateway between the 3500 monitors and external hosts such as DCS, PLC, System 1®, TDXnet, TDIX or DDIX. The RIM handles rack-wide configuration, real-time data retrieval, alarm forwarding and diagnostics, yet it is outside the protection path, so its failure never disables critical machine tripping.
|
Parameter |
Specification |
|
Function |
Rack interface, configuration & data gateway |
|
Slot position |
Slot 1 (mandatory, next to power supplies) |
|
Front port |
RS-232, 38.4 k baud, 30 m max |
|
Rear ports |
RS-232 / RS-422, 38.4 k baud (RS-422 1,200 m max) |
|
Protocol |
Bently Nevada proprietary (Modbus via 3500/92) |
|
Max nodes |
32 on single RS-485 bus |
|
Power |
24 VDC from rack back-plane, 4.75 W typical |
|
Operating temp |
–30 °C to +65 °C |
|
Storage temp |
–40 °C to +85 °C |
Key Benefits
Ø Slot-1 commander – mandatory first module; auto-detects all cards for plug-and-play commissioning.
Ø Multi-protocol gateway – front RS-232 for local laptop, rear RS-422 for 1.2 km plant runs, Ethernet via 3500/92 for DCS/SCADA.
Ø Non-blocking architecture – located outside protection path; communication loss never inhibits alarms or relays.
Ø 32-node multidrop – single RS-485 bus links up to 32 racks to one SCADA port, cutting cabling costs.
Ø Hot-swap & hot-spare – LEDs (OK, TX/RX, TM) allow on-line replacement < 1 min.
Ø Harsh-environment ready – conformal-coated PCB and –40 °C storage rating suit offshore, desert and arctic installations.
PLC AutocontrollerPackage
l Packing: Brand new and original in box
l Delivery time: 2-3 days against the payment
l All the goods will be tested before shipment
